STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

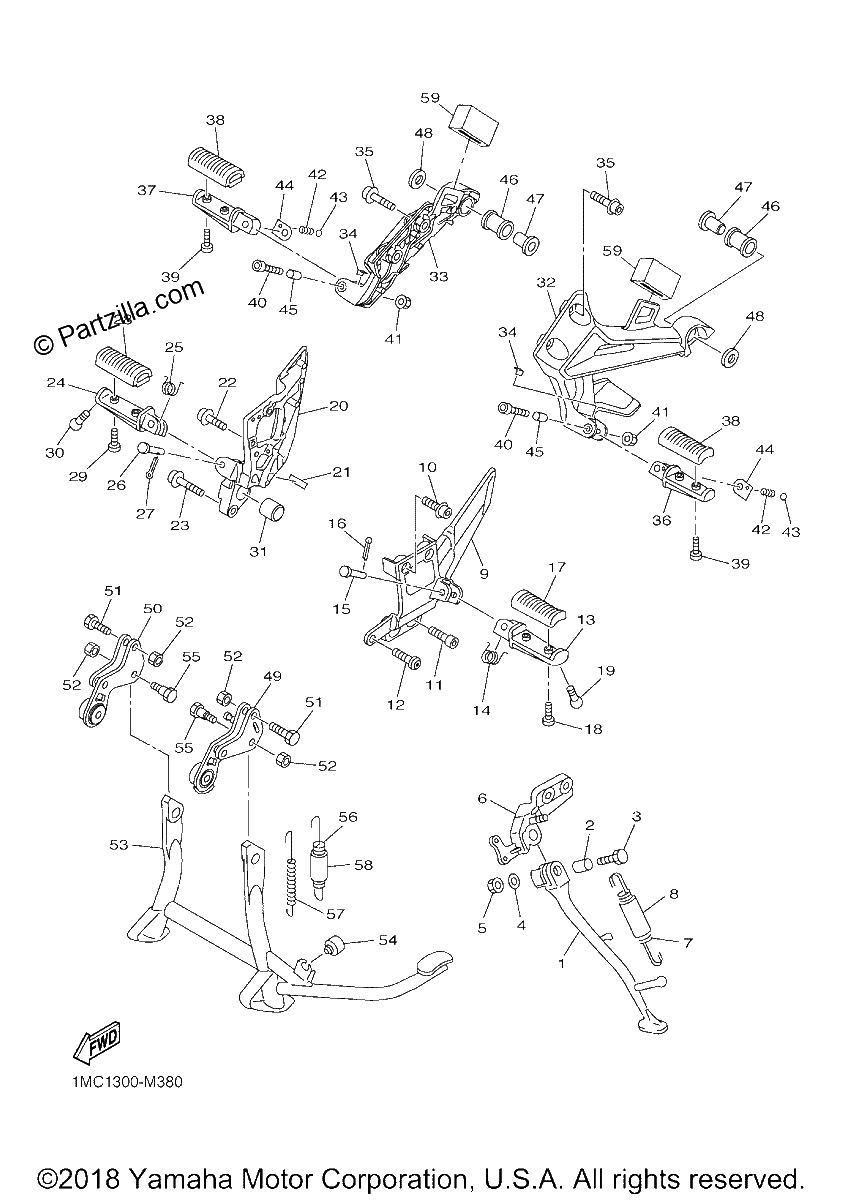

Diagrama de STAND FOOTREST

Repuestos

#1
5JW-27311-00-00
STAND, SIDE
$223.43¢111 713
1
#2
90387-10007-00
COLLAR
$14.24¢7 119
1
#3
90101-10025-00
bolt
$9.24¢4 619
1
#4
92990-10200-00
WASHER (replaces 92902-10200-00)
$3.41¢1 706
1
#5
95617-10100-00
NUT, U
$7.35¢3 675
1
#6
3P6-27321-00-00
BRACKET, SIDE STAND
$281.77¢140 888
1
#7
90506-20008-00
SPRING, TENSION
$11.35¢5 675
1
#8
90445-197J2-00
HOSE (L60)
$4.68¢2 338
1
#9
1MC-27442-00-00
BRACKET 2
$155.19¢77 594
1
#10
90110-08097-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#11
90109-10058-00
BOLT
$7.52¢3 762
1
#12
90149-10001-00
SCREW
$8.18¢4 088
1
#13
4BH-27451-01-00
FOOTREST
$60.51¢30 256
1
#14
90508-183B9-00
SPRING, TORSION
$3.30¢1 650
1
#15
91701-08042-00
PIN
$3.69¢1 844
1
#16
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#17
4BP-27413-00-00
COVER, FOOTREST
$32.09¢16 044
1
#18
98507-05014-00
SCREW, PAN HEAD
$6.26¢3 131
1
#19
90109-08204-00
BOLT
$6.60¢3 300
1
#20
1MC-27443-00-00
BRACKET 3
$135.15¢67 575
1
#21
3TU-2178A-00-00
LABEL
$3.94¢1 969
1
#22
90110-08062-00
BOLT, HEXAGON SOCKET HEAD
$2.01¢1 006
1
#23
90110-08107-00
BOLT, HEXAGON SOCKET HEAD
$2.91¢1 456
1
#24
4BH-27461-01-00
FOOTREST
$60.30¢30 150
1
#25
90508-184B0-00
SPRING, TORSION
$2.97¢1 487
1
#26
91702-08040-00
PIN, CLEVIS
$4.84¢2 419
1
#27
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#28
4BP-27413-00-00
COVER, FOOTREST
$32.09¢16 044
1
#29
98507-05014-00
SCREW, PAN HEAD
$6.26¢3 131
1
#30
90109-08204-00
BOLT
$6.60¢3 300
1
#31
90380-20213-00
BUSH, SOLID
$31.31¢15 656
1
#32
1MC-2741L-00-00
BRACKET 4
$144.28¢72 138
1
#33
1MC-2742L-00-00
BRACKET 5
$163.43¢81 713
1
#34
5JW-23844-00-00
SEAL
$8.97¢4 488
1
#35
90110-08062-00
BOLT, HEXAGON SOCKET HEAD
$2.01¢1 006
1
#36
5LV-27431-01-00
FOOTREST, REAR 1
$39.40¢19 700
1
#37
5LV-27441-01-00
FOOTREST, REAR 2
$39.40¢19 700
1
#38
4BP-27413-00-00
COVER, FOOTREST
$32.09¢16 044
1
#39
98507-05014-00
SCREW, PAN HEAD
$6.26¢3 131
1
#40
91312-06040-00
BOLT
$7.52¢3 762
1
#41
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#42
90501-15001-00
SPRING, COMPRESSION
$1.94¢969
1
#43
93501-04011-00
BALL
$7.46¢3 731
1
#44
5JJ-27437-01-00
WASHER, special
$7.03¢3 513
1
#45
90387-06014-00
COLLAR
$4.60¢2 300
1
#46
36Y-27424-01-00
DAMPER, FOOTREST 2
$18.69¢9 344
1
#47
90387-10048-00
COLLAR
$13.90¢6 950
1
#48
90201-10669-00
WASHER, PLATE
$7.46¢3 731
1
#49
1MC-27151-00-00
BRACKET, MAIN STAND
$112.61¢56 306
1
#50
1MC-27152-00-00
BRACKET, MAIN STAND 2
$85.08¢42 538
1
#51
90101-10004-00
BOLT
$2.61¢1 306
1
#52
95602-10200-00
NUT, U FLANGE
$2.73¢1 363
1
#53
5P5-27111-10-00
STAND, MAIN
$275.03¢137 513
1
#54
116-27114-00-00
STOPPER, MAIN STAND
$12.35¢6 175
1
#55
90109-10029-00
BOLT
$9.91¢4 956
1
#56
90506-40001-00
SPRING, TENSION
$29.28¢14 638
1
#57
90506-23001-00
SPRING, TENSION
$13.85¢6 925
1
#58
90445-170K9-00
HOSE (L60)
$7.90¢3 950
1
#59
5VS-W9753-00-00
SIDE CASE BRACKET RUBBER SET | SET OF 2
No Disponible
