STEERING HANDLE CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

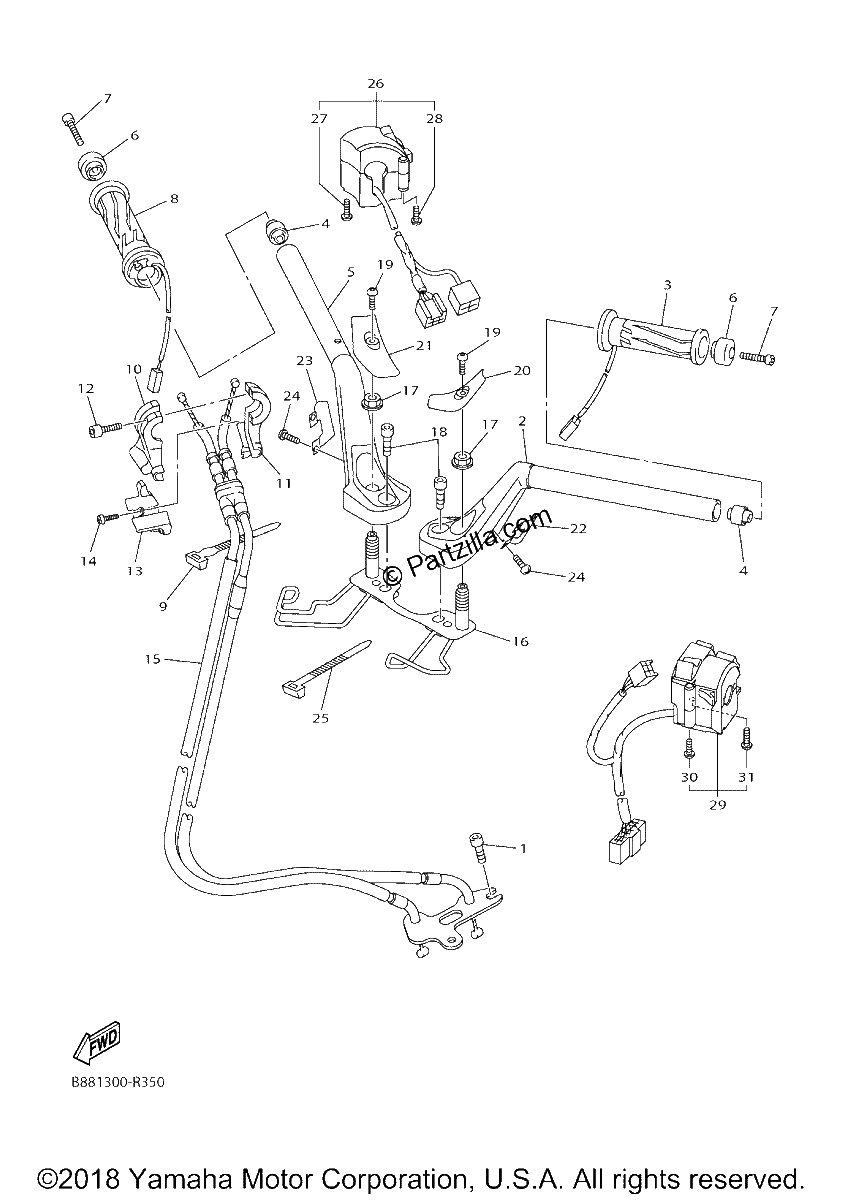

Diagrama de STEERING HANDLE CABLE

Repuestos

#1
91312-05012-00
BOLT (replaces 90110-05032-00)
$2.78¢1 392
1
#2
1MC-26121-00-00
HANDLEBAR (LEFT)
$200.20¢100 102
1
#3
1MC-82963-00-00
GRIP, WARMER (LEFT)
$191.99¢95 996
1
#4
4XV-23434-00-00
HOLDER, DAMPER
$18.54¢9 269
1
#5
1MC-26122-00-00
HANDLEBAR (RIGHT)
$290.78¢145 389
1
#6
4XV-26246-10-00
END, GRIP
$32.25¢16 123
1
#7
91317-06025-00
BOLT
$2.24¢1 121
1
#8
1MC-82960-00-00
GRIP, WARMER
$217.75¢108 876
1
#9
90465-10098-00
CLAMP
$2.55¢1 277
1
#10
2D2-26281-01-00
CAP, GRIP UPPER
$82.35¢41 176
1
#11
2D2-26282-01-00
CAP, GRIP UNDER
$130.35¢65 176
1
#12
91317-05035-00
BOLT
$6.83¢3 415
1
#13
2D2-2622K-00-00
PROTECTOR 1
$19.11¢9 557
1
#14
98902-03010-00
SCREW BINDING HEAD (+) (replaces 90154-03001-00)
$0.54¢270
1
#15
1MC-26302-01-00
Throttle Cable Assy
$42.04¢21 022
1
#16
1MC-26169-00-00
ADJUSTER
$102.95¢51 474
1
#17
90179-12588-00
NUT
$6.16¢3 082
1
#18
91312-08030-00
BOLT,SOCKET
$6.75¢3 375
1
#19
90111-04006-00
BOLT, HEX. SOCKET BUTTON
$1.78¢891
1
#20
3P6-26143-10-00
COVER, HANDLE UPPER 1
$24.55¢12 276
1
#21
3P6-26145-10-00
COVER, HANDLE UPPER 2
$23.00¢11 500
1
#22
3P6-26144-10-00
COVER, HANDLEBAR LOWER 1
$6.81¢3 404
1
#23
3P6-26146-10-00
COVER, HANDLEBAR LOWER 2
$6.53¢3 266
1
#24
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$3.86¢1 932
1
#25
90464-16061-00
BAND
$7.68¢3 841
1
#26
1MC-83963-00-00
SWITCH, HANDLE 3
$180.10¢90 051
1
#27
98507-05035-00
SCREW, PAN HEAD
$7.31¢3 657
1
#28
98507-05045-00
SCREW, PAN HEAD
$7.81¢3 904
1
#29
B88-83954-00-00
SWITCH, HANDLE 7
$308.81¢154 405
1
#30
98507-05040-00
SCREW, PAN HEAD
$7.30¢3 651
1
#31
98507-05055-00
SCREW, PAN HEAD
$2.59¢1 294
1
