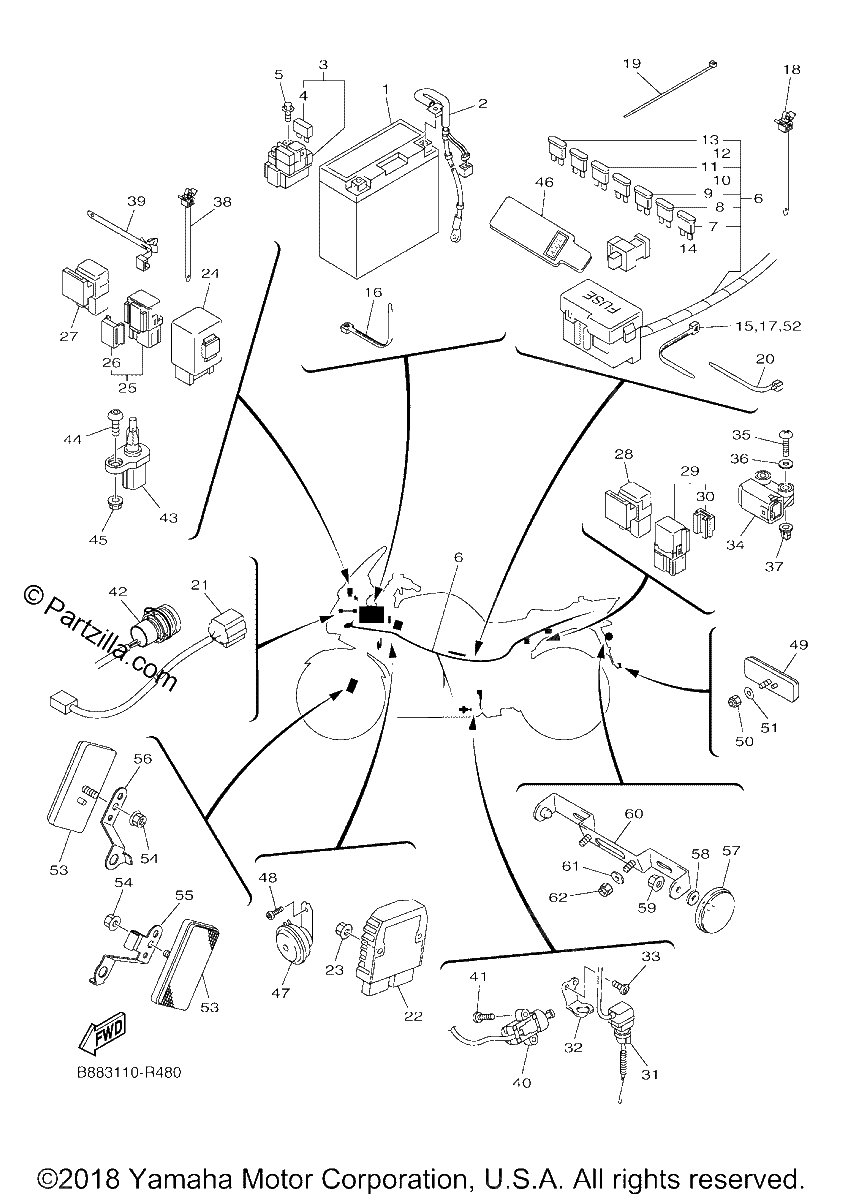

Diagrama de ELECTRICAL 2

Repuestos

#1
GT1-4B400-00-00
GT14B4 GS BATTERY -
$174.59¢87 294
1
#2
1MC-82116-00-00
WIRE, MINUS LEAD
$45.59¢22 794
1
#3
3D7-81940-00-00
STARTER RELAY ASSY
$101.19¢50 594
1
#4
1AE-82151-00-00
FUSE (30A-BL)
$7.41¢3 706
1
#5
95022-06008-00
BOLT, FLANGE
$7.46¢3 731
1
#6
B88-82590-10-00
WIRE HARNESS ASSY
$1396.24¢698 119
1
#7
67F-82151-30-00
FUSE (3A)
$5.99¢2 994
1
#8
5JJ-82151-00-00
FUSE (7.5A-BL)
$7.08¢3 538
1
#9
67F-82151-40-00
FUSE (10A)
$7.75¢3 875
1
#10
67F-82151-50-00
FUSE (15A)
$4.44¢2 219
1
#11
5JJ-82151-20-00
FUSE (20A-BL)
$7.63¢3 813
1
#12
5JJ-82151-60-00
FUSE (30A-BL)
$7.63¢3 813
1
#13
1MC-82151-00-00
FUSE (1A-BL)
$3.89¢1 944
1
#14
5JW-82151-10-00
FUSE (50A)
$17.01¢8 506
1
#15
1UA-82591-00-00
BAND
$4.91¢2 456
1
#16
90465-10098-00
CLAMP
$2.78¢1 388
1
#17
1UA-82591-00-00
BAND
$4.91¢2 456
1
#18
90464-10112-00
CLAMP
$7.35¢3 675
1
#19
5Y9-12491-00-00
CLAMP 1
$7.86¢3 931
1
#20
90464-15195-00
CLAMP
$3.30¢1 650
1
#21
1MC-82509-00-00
WIRE, SUB LEAD
$17.79¢8 894
1
#22
1D7-81960-01-00
RECTIFIER REGULATOR ASSY
$335.25¢167 625
1
#23
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#24
5VK-81950-31-00
RELAY ASSY (replaces 5VK-81950-30-00)
$63.94¢31 969
1
#25
1ST-81950-00-00
RELAY ASSY (1ST-00)
$17.80¢8 900
1
#26
5JJ-81952-00-00
HOLDER, RELAY
$9.46¢4 731
1
#27
5DM-81950-01-00
RELAY ASSY (replaces 5DM-81950-00-00)
$29.46¢14 731
1
#28
5DM-81950-01-00
RELAY ASSY (replaces 5DM-81950-00-00)
$29.46¢14 731
1
#29
1TP-81950-00-00
RELAY ASSY (1TP-00)
$15.59¢7 794
1
#30
5EA-81952-00-00
HOLDER, RELAY
$8.03¢4 013
1
#31
1MC-82530-01-00
STOP SWITCH ASSY
$68.78¢34 388
1
#32
1MC-2144G-00-00
STAY, STOP SWITCH
$5.45¢2 725
1
#33
98902-05008-00
SCREW, BIND
$1.46¢731
1
#34
5PS-82576-01-00
SENSOR, LEAN ANGLE
$95.25¢47 625
1
#35
97702-40025-00
SCREW, TAPPING
$0.30¢150
1
#36
90201-04030-00
WASHER, PLATE
$1.80¢900
1
#37
4B4-84334-00-00
NUT, ADJUSTING
$4.96¢2 481
1
#38
90464-10112-00
CLAMP
$7.35¢3 675
1
#39
90464-20213-00
CLAMP
$4.24¢2 119
1
#40
1MC-82566-01-00
SWITCH, SIDE STAND
$115.80¢57 900
1
#41
98507-05016-00
SCREW, PAN HEAD
$1.68¢838
1
#42
3P6-8254B-00-00
TERMINAL COMP.
$94.89¢47 444
1
#43
5YU-85886-00-00
SENSOR, AIR TEMPERATURE
$35.84¢17 919
1
#44
92012-05014-00
BOLT, BUTTON HEAD
$7.48¢3 738
1
#45
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
#46
2D1-82589-00-00
PROTECTER, WIRE HARNESS
$11.55¢5 775
1
#47
B88-83371-00-00
HORN
$51.69¢25 844
1
#48
92012-06010-00
BOLT, BUTTON HEAD
$2.91¢1 456
1
#49
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
#50
95617-05100-00
NUT, U
$7.94¢3 969
1
#51
90201-05043-00
WASHER, PLATE
$6.47¢3 238
1
#52
1UA-82591-00-00
BAND
$4.91¢2 456
1
#53
11H-85110-01-00
REFLECTOR ASSY
$24.93¢12 463
1
#54
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
#55
3P6-85112-10-00
BRACKET, REFLECTOR 1
$57.99¢28 994
1
#56
3P6-85122-01-00
BRACKET, REFLECTOR 2
$15.55¢7 775
1
#57
449-85131-02-00
REFLECTOR, REAR 1
$30.67¢15 337
1
#58
90201-061A5-00
WASHER, PLATE
$6.99¢3 494
1
#59
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
#60
B88-84751-00-00
BRACKET, LICENSE
$21.59¢10 794
1
#61
90201-06380-00
WASHER PLAIN
$0.69¢344
1
#62
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
