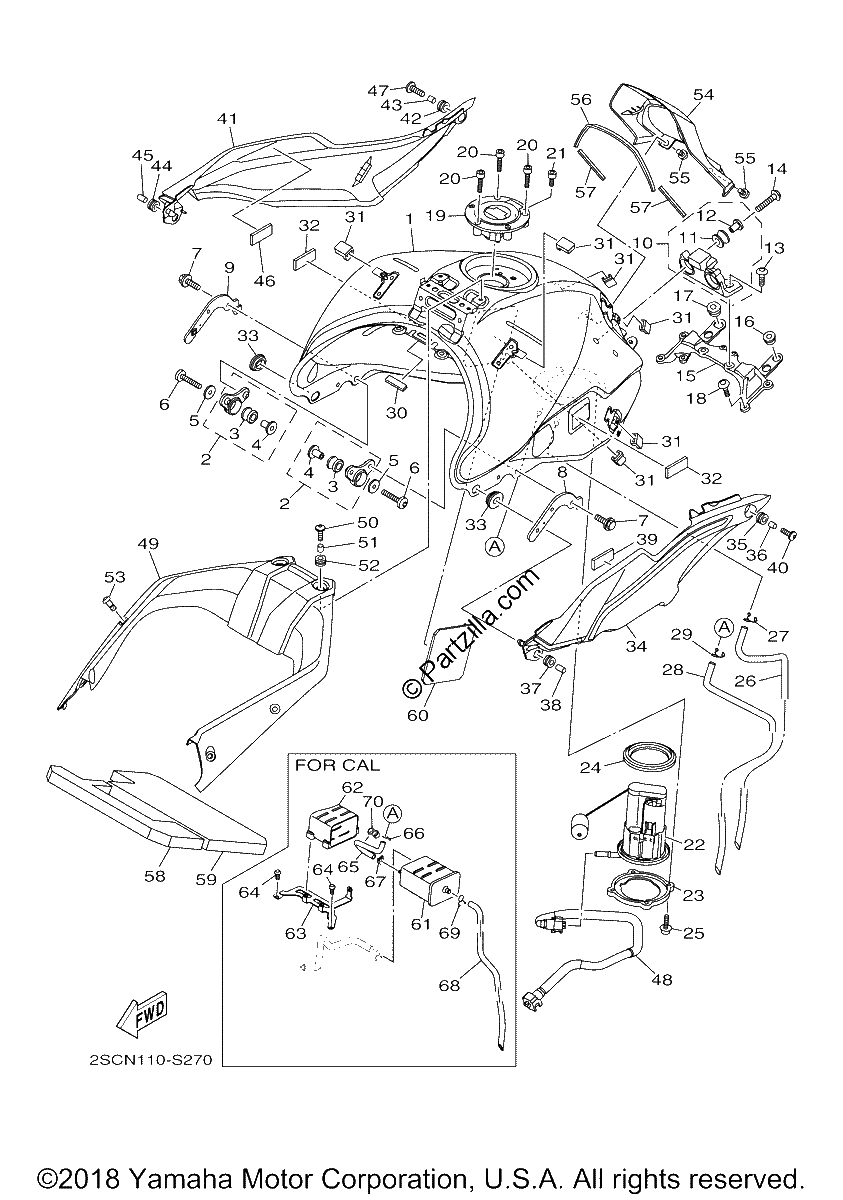

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FUEL TANK COMP.
$949.99¢474 994
#1
FUEL TANK COMP.
$854.99¢427 494
#2
TANK BRACKET ASSY (replaces 23P-24104-01-00)
$60.76¢30 381
#3
GROMMET
$3.79¢1 894
#4
COLLAR
$4.68¢2 338
#5
WASHER, PLATE
$7.63¢3 813
#6
BOLT, BUTTON HEAD
$2.05¢1 025
#7
BOLT, WITH WASHER
$7.48¢3 738
#8
PLATE, FITTING
$9.79¢4 894
#9
HOOK TANK FITTING
$9.55¢4 775
#10
TANK BRACKET ASSY 2
$41.57¢20 787
#11
GROMMET
$3.93¢1 963
#12
COLLAR
$6.76¢3 381
#13
BOLT, HEX. SOCKET BUTTON
$5.61¢2 806
#14
BOLT,FLANGE (replaces 90105-06125-00)
$1.75¢875
#15
BRACKET, TANK FITTING
$44.41¢22 206
#16
GROMMET
$8.16¢4 081
#17
Grommet
$5.72¢2 863
#18
BOLT, BUTTON HEAD
$3.04¢1 519
#19
CAP ASSY
$312.61¢156 306
#20
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
#21
BOLT
$5.86¢2 931
#22
FUEL PUMP COMP.
$463.40¢231 700
#23
BRACKET, FUEL PUMP
$29.35¢14 675
#24
O-RING
$29.22¢14 612
#25
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#26
PIPE 5
$15.65¢7 825
#27
Clip
$2.97¢1 487
#28
PIPE 6 | FOR U49
$14.16¢7 081
#29
Clip
$2.97¢1 487
#30
MOLE 3
$7.91¢3 956
#31
DAMPER, SIDE COVER
$7.65¢3 825
#32
HOOK, SIDE COVER 1
$8.03¢4 013
#33
Grommet
$4.69¢2 344
#34
COVER, SIDE 1
$51.88¢25 938
#35
GROMMET
$7.43¢3 713
#36
COLLAR
$3.79¢1 894
#37
GROMMET
$7.43¢3 713
#38
COLLAR
$8.24¢4 119
#39
HOOK, SIDE COVER 1
$8.03¢4 013
#40
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
#41
COVER, SIDE 2
$54.35¢27 175
#42
GROMMET
$7.43¢3 713
#43
COLLAR
$3.79¢1 894
#44
GROMMET
$7.43¢3 713
#45
COLLAR
$8.24¢4 119
#46
HOOK, SIDE COVER 1
$8.03¢4 013
#47
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
#48
PIPE, FUEL 1 (replaces 1RC-13971-00-00)
$77.58¢38 788
#49
COVER, TANK
$37.35¢18 675
#50
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
#51
COLLAR
$3.79¢1 894
#52
GROMMET
$7.43¢3 713
#53
HEAD
$11.34¢5 669
#54
PROTECTOR, FUEL TANK
$24.51¢12 256
#55
BOLT, HEX. SOCKET BUTTON
$6.19¢3 094
#56
DAMPER, PLATE 1
$7.86¢3 931
#57
DAMPER, PLATE 2
$3.73¢1 863
#58
DAMPER, PLATE 1
$35.36¢17 681
#59
DAMPER, PLATE 2
$12.48¢6 238
#60
PROTECTOR, FUEL TANK
$17.60¢8 800
#61
CANISTER ASSY | FOR CALIFORNIA
$377.02¢188 513
#62
DAMPER, LOCATING 3 | FOR CAL
$26.91¢13 456
#63
BRACKET, CANISTOR | FOR CAL
$15.18¢7 588
#64
BOLT, BUTTON HEAD
$2.97¢1 487
#65
PIPE 3 | FOR CAL
$29.53¢14 763
#66
Clip
$2.97¢1 487
#67
CLIP,SCISSOR
$3.25¢1 625
#68
PIPE 10
$0.96¢481
#69
CLIP | FOR CALIFORNIA
$7.60¢3 800
#70
CLAMP
$7.36¢3 681
