COWLING

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

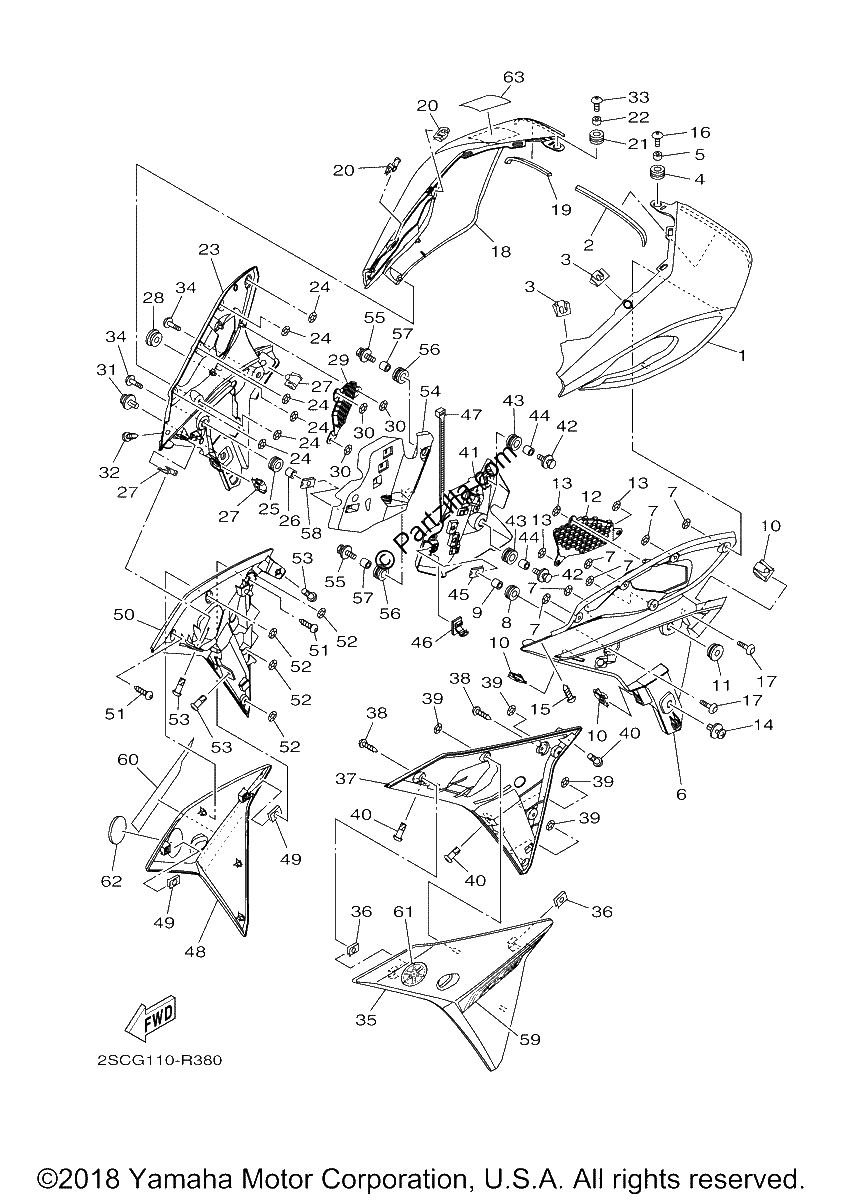

Diagrama de COWLING

Repuestos

#1
2PP-28219-00-PA
COVER 1
$130.15¢65 075
1
#1
2PP-28219-00-P9
COVER 1
$125.66¢62 831
1
#2
2C0-2174X-00-00
DAMPER
$1.99¢994
1
#3
5PW-2177L-01-00
PLATE, SPRING
$7.41¢3 706
1
#4
90480-13018-00
GROMMET
$7.43¢3 713
1
#5
90387-0611W-00
COLLAR
$3.79¢1 894
1
#6
2PP-2836K-00-00
PANEL, INNER 1
$269.26¢134 631
1
#7
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#8
90480-13018-00
GROMMET
$7.43¢3 713
1
#9
90387-0611W-00
COLLAR
$3.79¢1 894
1
#10
5PW-2177L-01-00
PLATE, SPRING
$7.41¢3 706
1
#11
90480-13014-00
GROMMET
$8.16¢4 081
1
#12
2PP-2837N-00-00
GRILL, AIR INTAKE 1
$11.19¢5 594
1
#13
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#14
90269-07076-00
RIVET,SPEC'L SHAPE
$7.13¢3 563
1
#15
90167-05079-00
SCREW, TAPPING
$3.63¢1 813
1
#16
90111-05007-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#17
90111-05026-00
BOLT, HEX. SOCKET BUTTON
$8.09¢4 044
1
#18
2PP-28229-00-P9
COVER 2
$172.76¢86 381
1
#18
2PP-28229-00-PA
COVER 2
$114.43¢57 213
1
#19
2C0-2174X-00-00
DAMPER
$1.99¢994
1
#20
5PW-2177L-01-00
PLATE, SPRING
$7.41¢3 706
1
#21
90480-13018-00
GROMMET
$7.43¢3 713
1
#22
90387-0611W-00
COLLAR
$3.79¢1 894
1
#23
2PP-2836L-00-00
PANEL, INNER 2
$269.26¢134 631
1
#24
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#25
90480-13018-00
GROMMET
$7.43¢3 713
1
#26
90387-0611W-00
COLLAR
$3.79¢1 894
1
#27
5PW-2177L-01-00
PLATE, SPRING
$7.41¢3 706
1
#28
90480-13014-00
GROMMET
$8.16¢4 081
1
#29
2PP-2837R-00-00
GRILL, AIR INTAKE 2
$11.19¢5 594
1
#30
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#31
90269-07076-00
RIVET,SPEC'L SHAPE
$7.13¢3 563
1
#32
90167-05079-00
SCREW, TAPPING
$3.63¢1 813
1
#33
90111-05007-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#34
90111-05026-00
BOLT, HEX. SOCKET BUTTON
$8.09¢4 044
1
#35
2PP-2835U-00-P0
PANEL 1 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$149.51¢74 756
1
#36
90183-05042-00
NUT, SPRING
$1.25¢625
1
#37
2PP-2837L-00-00
PANEL, CONSOLE 1
$160.23¢80 113
1
#38
90167-05079-00
SCREW, TAPPING
$3.63¢1 813
1
#39
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#40
14B-28386-00-00
HEAD
$11.34¢5 669
1
#41
2PP-2836H-00-00
BRACKET 5
$15.32¢7 663
1
#42
90119-06267-00
BOLT, WITH WASHER
$7.34¢3 669
1
#43
90480-14003-00
GROMMET
$7.43¢3 713
1
#44
90387-06057-00
COLLAR
$7.34¢3 669
1
#45
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#46
90464-25160-00
CLAMP
$11.97¢5 988
1
#47
90465-15011-00
Clamp
$2.33¢1 163
1
#48
2PP-2835V-00-P0
PANEL 2 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$151.44¢75 719
1
#49
90183-05042-00
NUT, SPRING
$1.25¢625
1
#50
2PP-2837M-00-00
PANEL, CONSOLE 2
$136.15¢68 075
1
#51
90167-05079-00
SCREW, TAPPING
$3.63¢1 813
1
#52
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#53
14B-28386-00-00
HEAD
$11.34¢5 669
1
#54
2PP-2836J-00-00
BRACKET 6
$15.40¢7 700
1
#55
90119-06267-00
BOLT, WITH WASHER
$7.34¢3 669
1
#56
90480-14003-00
GROMMET
$7.43¢3 713
1
#57
90387-06057-00
COLLAR
$7.34¢3 669
1
#58
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#59
2SC-28391-50-00
GRAPHIC 1
$17.75¢8 875
1
#59
2SC-28391-40-00
GRAPHIC 1
$17.94¢8 969
1
#60
2SC-28392-40-00
GRAPHIC 2
$20.78¢10 388
1
#60
2SC-28392-50-00
GRAPHIC 2
$17.75¢8 875
1
#61
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$23.89¢11 944
1
#62
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$23.89¢11 944
1
#63
29P-2816R-00-00
LABEL, WARNING GENERAL INFO.
$3.70¢1 850
1
