CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

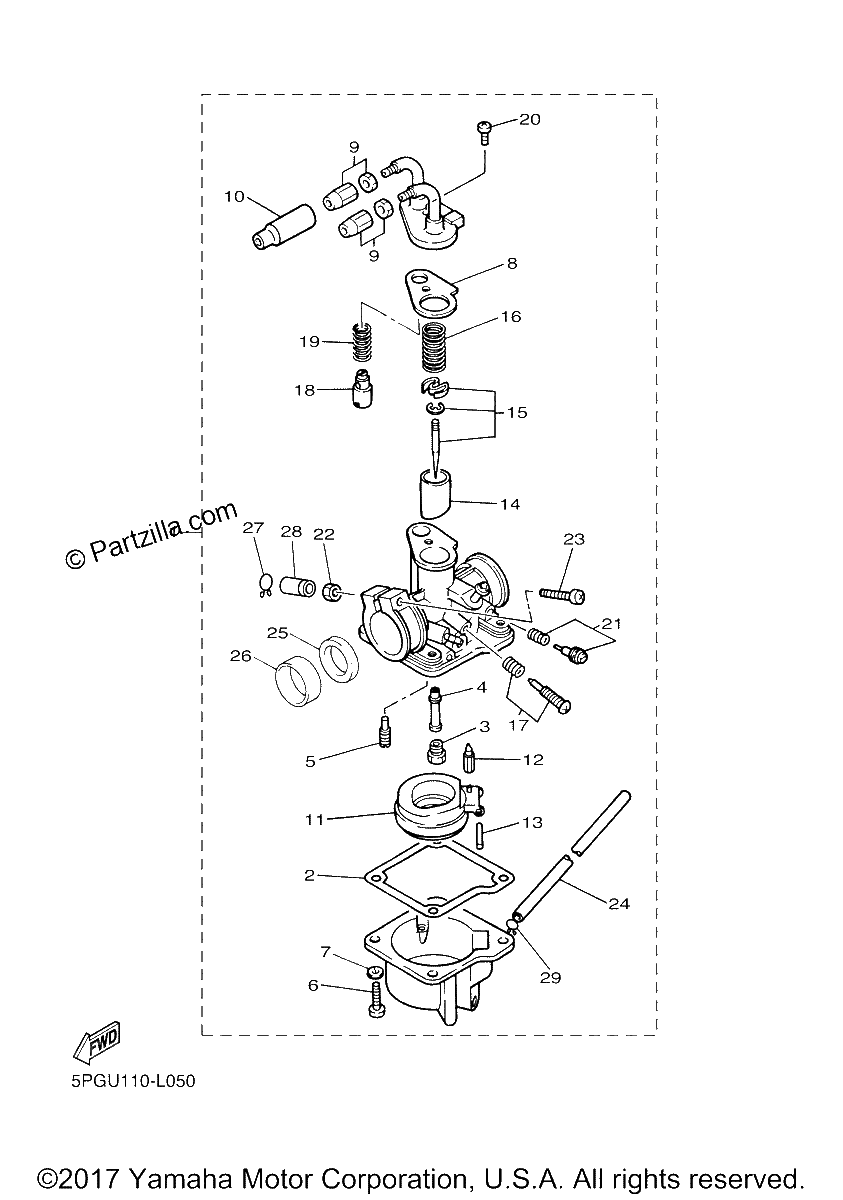

Diagrama de CARBURETOR

Repuestos

#1
5PG-14101-11-00
CARBURETOR ASSY 1
$214.16¢107 082
1
#2
3L5-14184-00-00
GASKET, FLOAT CHAMBER
$28.76¢14 381
1
#3
620-14231-14-00
JET, MAIN (# 70)
$9.56¢4 778
1
#4
3L7-14141-12-00
NOZZLE, MAIN
$35.02¢17 509
1
#5
3L5-14142-40-00
JET, PILOT (# 40)
$9.12¢4 560
1
#6
98507-04014-00
SCREW, PAN HEAD
$1.45¢724
1
#7
92907-04100-00
WASHER, SPRING
$6.55¢3 278
1
#8
3L5-14198-00-00
GASKET
$8.26¢4 129
1
#9
17L-14106-00-00
CABLE ADJUST SCREW SET
$7.51¢3 755
1
#10
1R0-14169-00-00
CAP
$8.30¢4 151
1
#11
3L6-14185-01-00
FLOAT
$64.38¢32 188
1
#12
3L5-14190-01-00
NEEDLE VALVE ASSY
$34.79¢17 394
1
#13
603-14186-00-00
PIN, FLOAT
$8.03¢4 013
1
#14
3L5-14112-40-00
VALVE, THROTTLE 1
$86.77¢43 384
1
#15
5PG-1490J-00-00
NEEDLE SET
$25.27¢12 633
1
#16
174-14131-01-00
SPRING, THROTTLE VALVE
$7.74¢3 870
1
#17
36R-14103-00-00
THROTTLE SCREW SET
$27.53¢13 766
1
#18
58E-14171-00-00
PLUNGER, STARTER
$31.80¢15 899
1
#19
127-14135-00-00
COIL, SPRING
$7.01¢3 507
1
#20
97607-05112-00
SCREW, WITH WASHER
$7.58¢3 789
1
#21
36R-14104-00-00
AIR SCREW SET
$9.61¢4 807
1
#22
98807-05100-00
NUT
$2.64¢1 322
1
#23
98517-05030-00
SCREW, PAN HEAD (replaces 98507-05030-00)
$8.69¢4 347
1
#24
90445-05N13-00
HOSE (L200)
$6.75¢3 375
1
#25
1M3-14997-00-00
SEAL
$7.38¢3 691
1
#26
1V3-14271-00-00
INSULATOR
$29.26¢14 628
1
#27
55X-14937-00-00
CLIP
$7.24¢3 622
1
#28
3XV-14169-00-00
CAP
$5.81¢2 904
1
#29
22F-14139-00-00
CLIP, PIPE
$6.51¢3 254
1
