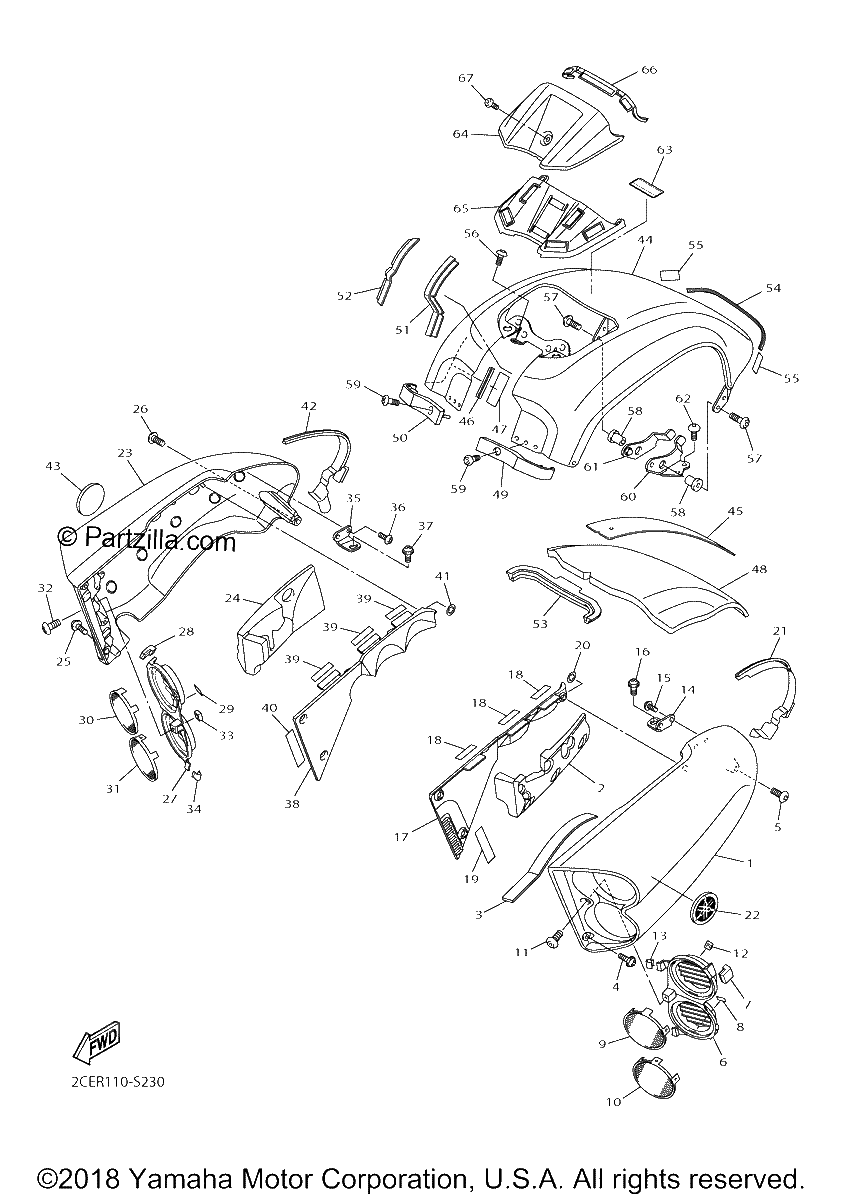

SIDE COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, SIDE 1
$468.45¢234 225
#2
DAMPER, locating 1
$40.65¢20 325
#3
Damper
$7.95¢3 975
#4
bolt
$7.63¢3 813
#5
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
#6
PANEL 4
$26.11¢13 056
#7
DAMPER, LOCATING 3
$8.14¢4 069
#8
PLATE, DAMPER
$7.86¢3 931
#9
GRILL, AIR INTAKE 1
$52.33¢26 163
#10
GRILL, AIR INTAKE 2
$51.04¢25 519
#11
BOLT, BUTTON HEAD
$3.14¢1 569
#12
NUT, SQUARE
$6.29¢3 144
#13
MOLE 1
$7.70¢3 850
#14
BRKT 7
$11.69¢5 844
#15
BOLT, BUTTON HEAD
$4.16¢2 081
#16
BOLT(3DM)
$6.50¢3 250
#17
PANEL, INNER 1
$38.01¢19 006
#18
SEAL 1
$2.01¢1 006
#19
SEAL 4
$2.10¢1 050
#20
NUT,SPRING
$7.95¢3 975
#21
MOLE, SIDE COVER 1
$31.23¢15 613
#22
TUNING FORK MARK
$67.65¢33 825
#23
COVER, SIDE 2
$437.94¢218 969
#24
DAMPER, locating 2
$59.35¢29 675
#25
bolt
$7.63¢3 813
#26
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
#27
PANEL, 5
$26.11¢13 056
#28
DAMPER, LOCATING 3
$8.14¢4 069
#29
PLATE, DAMPER
$7.86¢3 931
#30
GRILL, AIR INTAKE 1
$52.33¢26 163
#31
GRILL, AIR INTAKE 2
$51.04¢25 519
#32
BOLT, BUTTON HEAD
$3.14¢1 569
#33
NUT, SQUARE
$6.29¢3 144
#34
MOLE 1
$7.70¢3 850
#35
BRKT 8
$8.30¢4 150
#36
BOLT, BUTTON HEAD
$4.16¢2 081
#37
BOLT(3DM)
$6.50¢3 250
#38
PANEL, INNER 2
$38.01¢19 006
#39
SEAL 1
$2.01¢1 006
#40
SEAL 4
$2.10¢1 050
#41
NUT,SPRING
$7.95¢3 975
#42
MOLE, SIDE COVER 2
$29.26¢14 631
#43
TUNING FORK MARK
$67.16¢33 581
#44
COVER, TOP (replaces 2S3-2171A-00-P9)
$788.74¢394 369
#45
REINF.
$63.20¢31 600
#46
MOLE 3
$7.91¢3 956
#47
DAMPER
$12.99¢6 494
#48
Damper
$20.10¢10 050
#49
Damper
$32.50¢16 250
#50
Damper
$11.31¢5 656
#51
MOLE, SIDE COVER 3
$29.11¢14 556
#52
MOLE, SIDE COVER 4
$15.70¢7 850
#53
MOLE, SIDE COVER 5
$37.95¢18 975
#54
MOLE, SIDE COVER 6
$19.86¢9 931
#55
DAMPER
$12.99¢6 494
#56
BOLT,HEX. SOCKET BUT
$6.61¢3 306
#57
BOLT, BUTTON HEAD
$3.04¢1 519
#58
Nut
$4.28¢2 138
#59
BOLT,HEX. SOCKET BUT
$5.10¢2 550
#60
BRACKET 3
$32.36¢16 181
#61
BRACKET 4
$19.40¢9 700
#62
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
#63
LABEL, CAUTION
$7.16¢3 581
#64
COVER, METER
$228.52¢114 262
#65
MOLE 1
$56.46¢28 231
#66
MOLE 2
$50.65¢25 325
#67
BOLT, BUTTON HEAD
$6.29¢3 144
