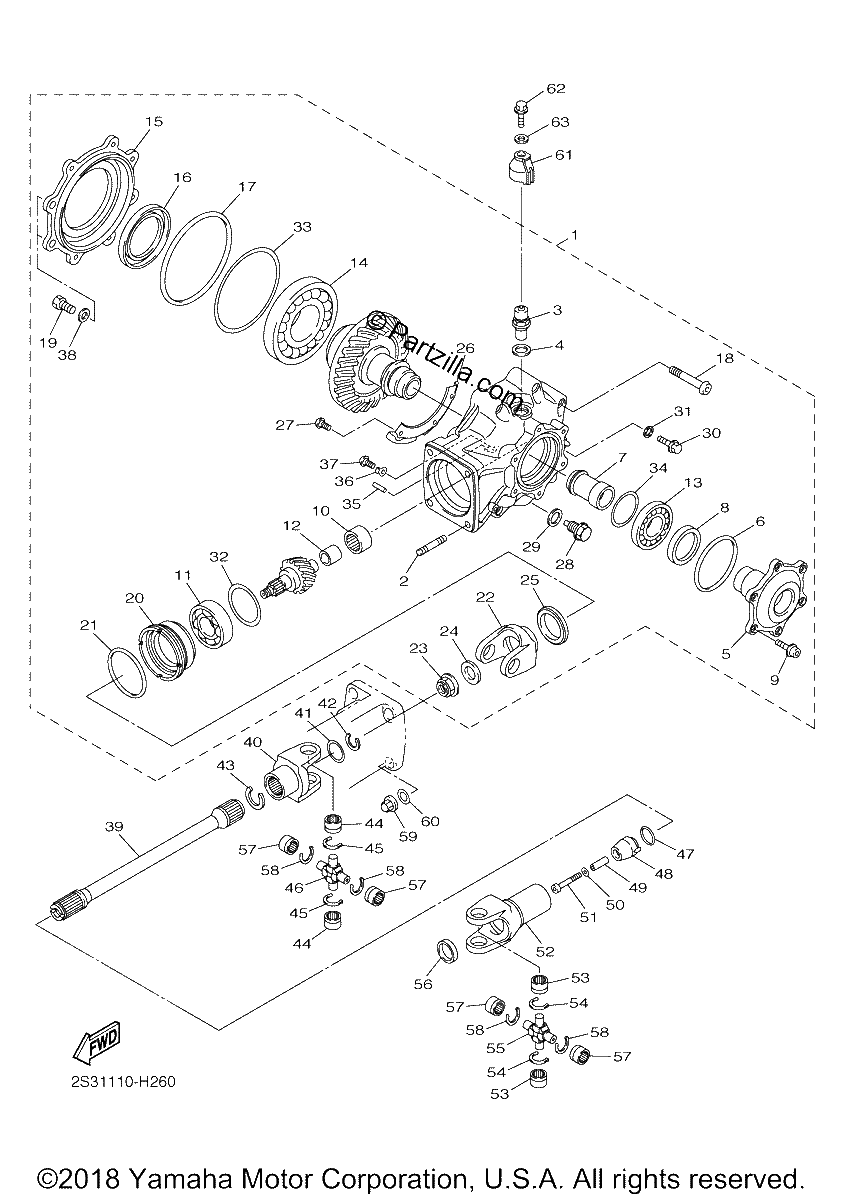

DRIVE SHAFT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#None
CIRCLIP
$3.00¢1 501
#None
BEARING
$23.64¢11 822
#1
REAR AXLE GEAR CASE ASSY
$2285.04¢1 142 519
#2
BOLT, STUD
$6.81¢3 404
#3
BREATHER ASSY
$174.03¢87 015
#4
GASKET
$8.83¢4 416
#5
PLATE
$287.76¢143 882
#6
O-RING
$9.76¢4 882
#7
COLLAR, GUIDE
$80.37¢40 187
#8
OIL SEAL
$18.64¢9 321
#9
BOLT, HEXAGON SOCKET HEAD
$3.07¢1 535
#10
BEARING
$51.66¢25 829
#11
BEARING
$91.72¢45 862
#12
RACE, INNER
$25.30¢12 650
#13
BEARING
$101.72¢50 859
#14
BEARING
$267.82¢133 912
#15
HOUSING, BEARING
$180.81¢90 407
#16
OIL SEAL
$23.31¢11 655
#17
O-RING
$25.22¢12 610
#18
BOLT, BUTTON HEAD
$4.13¢2 064
#19
BOLT
$6.22¢3 111
#20
RETAINER, BEARING
$208.18¢104 092
#21
O-RING
$15.26¢7 630
#22
YOKE, JOINT
$186.09¢93 047
#23
NUT
$26.65¢13 323
#24
WASHER, CONICAL SPRING
$22.33¢11 167
#25
OIL SEAL
$24.25¢12 127
#26
PLATE, COVER
$25.63¢12 817
#27
SCREW
$5.88¢2 938
#28
PLUG, STRAIGHT SCREW
$15.78¢7 889
#29
GASKET
$2.97¢1 483
#30
BOLT, FLG.(SMALL HEAD)
$3.40¢1 702
#31
GASKET
$3.78¢1 892
#32
SHIM, THRUST (T0.2) | UR
$9.27¢4 635
#32
SHIM, THRUST (T0.25) | UR
$9.27¢4 635
#32
SHIM, THRUST (T0.5) | UR
$9.27¢4 635
#32
SHIM, THRUST (T0.45) | UR
$9.27¢4 635
#32
SHIM, THRUST (T0.4) | UR
$9.27¢4 635
#32
SHIM, THRUST (T0.3) | UR
$9.27¢4 635
#32
SHIM, THRUST (T0.6) | UR
$9.27¢4 635
#32
SHIM, THRUST (T0.15) | UR
$9.27¢4 635
#33
SHIM, RING GEAR (T0.35) | UR
$30.82¢15 410
#33
SHIM, RING GEAR (T0.5) | UR
$30.82¢15 410
#33
SHIM, RING GEAR (T0.45) | UR
$30.82¢15 410
#33
SHIM, RING GEAR (T0.4) | UR
$30.82¢15 410
#33
SHIM, RING GEAR (T0.2) | UR
$30.82¢15 410
#33
SHIM, RING GEAR (T0.3) | UR
$30.82¢15 410
#33
SHIM, RING GEAR (T0.25) | UR
$30.82¢15 410
#33
SHIM, RING GEAR (T0.15) | UR
$30.82¢15 410
#33
SHIM, RING GEAR (T0.1) | UR
$30.82¢15 410
#34
WASHER, THRUST (T1.3) | UR
$9.41¢4 703
#34
WASHER, THRUST (T1.2) | UR
$9.41¢4 703
#34
WASHER, THRUST (T1.5) | UR
$9.41¢4 703
#34
WASHER, THRUST (T1.4) | UR
$9.41¢4 703
#34
WASHER, THRUST (T1.6) | UR
$9.41¢4 703
#34
WASHER, THRUST (T1.7) | UR
$9.41¢4 703
#34
WASHER, THRUST (T1.8) | UR
$9.41¢4 703
#34
WASHER, THRUST (T1.9) | UR
$9.41¢4 703
#34
WASHER, THRUST (T2.0) | UR
$9.41¢4 703
#34
WASHER, THRUST (T2.1) | UR
$9.41¢4 703
#35
PIN, DOWEL
$2.36¢1 179
#36
HOLDER
$6.22¢3 111
#37
SCREW
$5.88¢2 938
#38
WASHER, PLATE
$7.16¢3 582
#39
SHAFT, DRIVE
$296.06¢148 028
#40
YOKE, JOINT
$186.09¢93 047
#41
WASHER, PLATE
$8.72¢4 358
#42
CIRCLIP
$6.52¢3 260
#43
CIRCLIP
$3.93¢1 967
#44
BEARING
$23.64¢11 822
#45
CIRCLIP
$3.00¢1 501
#46
SPIDER
$81.63¢40 814
#47
O-RING
$6.53¢3 266
#48
CAP
$16.16¢8 079
#49
COLLAR
$3.93¢1 967
#50
WASHER, PLAIN
$0.89¢443
#51
BOLT
$3.68¢1 840
#52
YOKE, JOINT
$300.39¢150 196
#53
BEARING
$23.64¢11 822
#54
CIRCLIP
$3.00¢1 501
#55
SPIDER
$81.63¢40 814
#56
PLUG
$7.35¢3 674
#57
BEARING
$23.64¢11 822
#58
CIRCLIP
$3.00¢1 501
#59
NUT, CROWN
$7.19¢3 594
#60
WASHER, PLATE
$3.02¢1 512
#61
COVER 1
$76.61¢38 307
#62
BOLT, FLANGE (SMALL HEAD)
$4.91¢2 455
#63
GASKET
$7.59¢3 795
