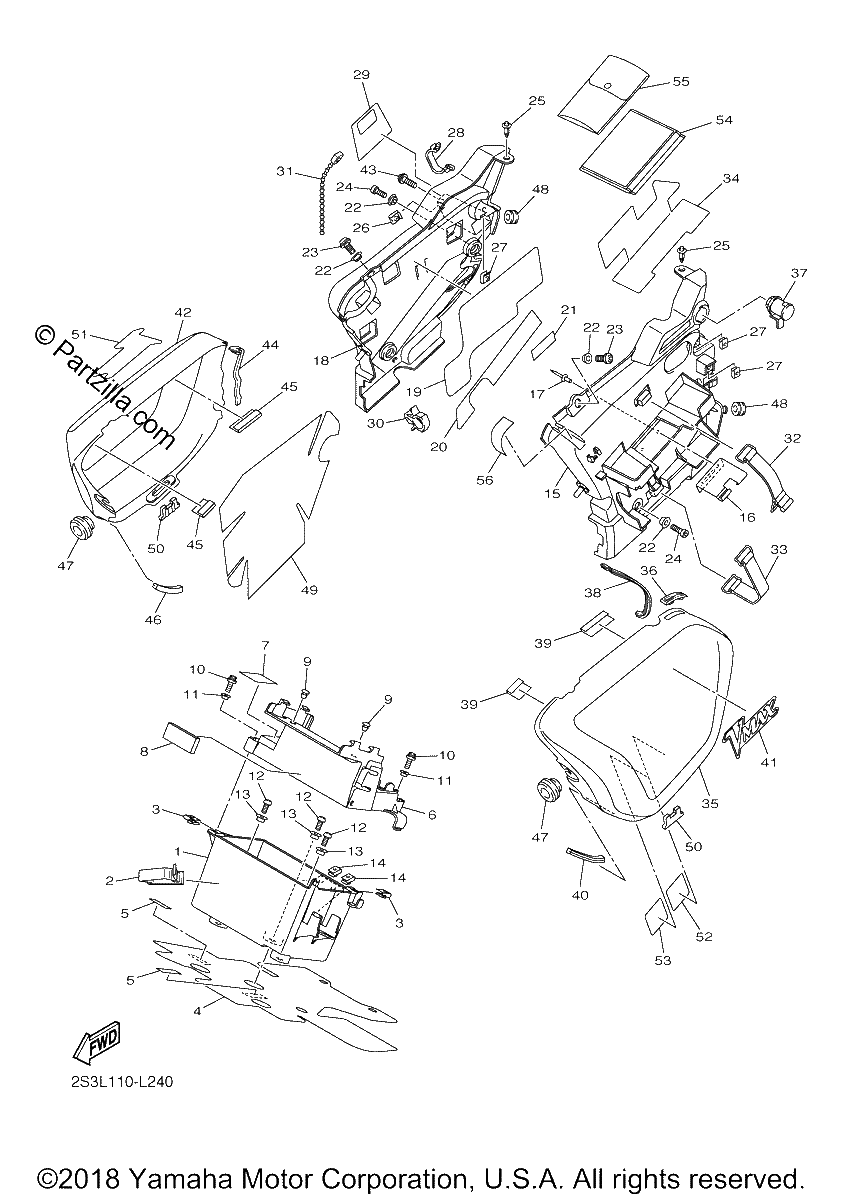

SIDE COVER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BOX, BATTERY
$48.02¢24 012
#2
CLAMP
$5.30¢2 651
#3
NUT, SPRING
$2.60¢1 299
#4
PROTECTOR
$59.67¢29 837
#5
SEAL 1
$1.85¢926
#6
BOX, BATTERY 1
$26.94¢13 472
#7
PATCH 5
$1.78¢891
#8
DAMPER 1
$12.96¢6 480
#9
PLUG
$6.22¢3 111
#10
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
#11
COLLAR
$5.51¢2 754
#12
BOLT, BUTTON HEAD
$2.74¢1 368
#13
Collar
$7.93¢3 968
#14
NUT, SPRING
$6.46¢3 231
#15
PANEL 1
$33.59¢16 796
#16
HOOK, BAND
$16.26¢8 131
#17
RIVET, BLIND
$6.75¢3 375
#18
PANEL 2
$31.90¢15 950
#19
DAMPER, PLATE 1
$5.78¢2 892
#20
DAMPER, SEAT
$1.74¢868
#21
DAMPER, MUFFLER
$0.80¢402
#22
COLLAR
$10.04¢5 020
#23
BOLT, HEX. SOCKET BUTTON
$6.87¢3 433
#24
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
#25
RIVET
$8.10¢4 048
#26
NUT, SPRING
$6.68¢3 341
#27
NUT, SPRING
$2.60¢1 299
#28
CLAMP
$6.36¢3 180
#29
PROTECTOR
$3.68¢1 840
#30
CLAMP
$6.75¢3 375
#31
BAND
$7.44¢3 720
#32
BAND, BATTERY
$21.98¢10 988
#33
BAND, BATTERY | FOR CALIFORNIA
$7.72¢3 858
#34
DAMPER
$3.07¢1 535
#35
COVER, SIDE 3
$261.84¢130 922
#36
CAP, SLIDER
$16.04¢8 021
#37
LOCK ASSY 2
$96.91¢48 455
#38
MOLD, SEAT
$41.43¢20 717
#39
DAMPER
$11.95¢5 974
#40
MOLE 4
$5.78¢2 892
#41
EMBLEM 3D
$107.12¢53 561
#42
COVER, SIDE 4
$353.52¢176 761
#43
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
#44
MOLD 2
$26.90¢13 449
#45
DAMPER
$11.95¢5 974
#46
MOLE 4
$5.78¢2 892
#47
DAMPER
$5.37¢2 685
#48
GROMMET
$7.35¢3 674
#49
DAMPER, SEAT
$11.12¢5 560
#50
DAMPER
$7.50¢3 749
#51
EMBLEM 3D
$107.33¢53 665
#52
PLATE, ROUTING | FOR CALIFORNIA
$9.41¢4 703
#53
PLATE, ROUTING 2 | FOR CAL
$6.12¢3 059
#54
TOOL KIT
$63.62¢31 809
#55
TOOL KIT, 2
$64.88¢32 441
#56
TAPE, 2
$3.45¢1 725
