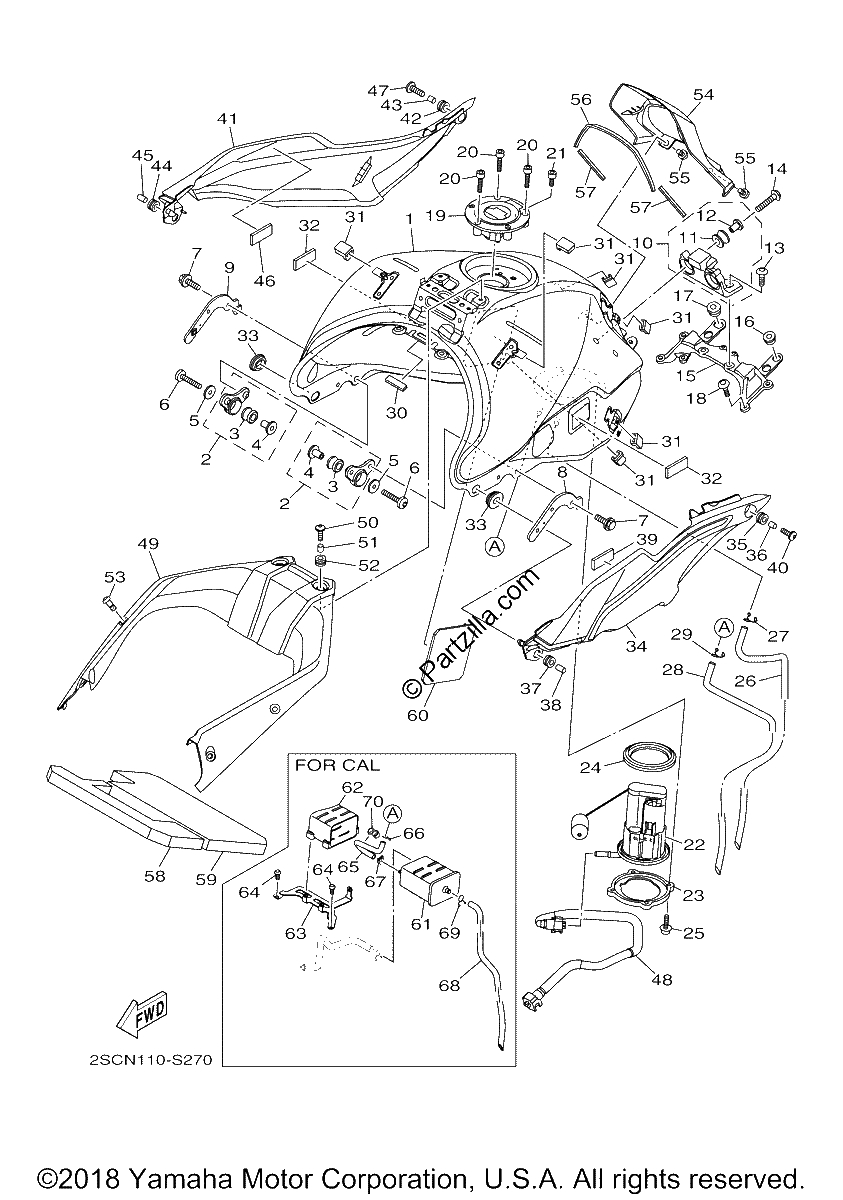

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FUEL TANK COMP.
$873.99¢436 994
#1
FUEL TANK COMP.
$786.59¢393 294
#2
TANK BRACKET ASSY (replaces 23P-24104-01-00)
$55.90¢27 951
#3
GROMMET
$3.48¢1 742
#4
COLLAR
$4.30¢2 151
#5
WASHER, PLATE
$7.01¢3 507
#6
BOLT, BUTTON HEAD
$1.89¢943
#7
BOLT, WITH WASHER
$6.88¢3 439
#8
PLATE, FITTING
$9.00¢4 502
#9
HOOK TANK FITTING
$8.79¢4 393
#10
TANK BRACKET ASSY 2
$38.25¢19 124
#11
GROMMET
$3.61¢1 805
#12
COLLAR
$6.22¢3 111
#13
BOLT, HEX. SOCKET BUTTON
$5.16¢2 582
#14
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
#15
BRACKET, TANK FITTING
$40.86¢20 430
#16
GROMMET
$7.51¢3 755
#17
Grommet
$5.27¢2 633
#18
BOLT, BUTTON HEAD
$2.79¢1 397
#19
CAP ASSY
$287.60¢143 802
#20
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
#21
BOLT
$5.39¢2 697
#22
FUEL PUMP COMP.
$426.33¢213 164
#23
BRACKET, FUEL PUMP
$27.00¢13 501
#24
O-RING
$26.89¢13 443
#25
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
#26
PIPE 5
$14.40¢7 199
#27
Clip
$2.74¢1 368
#28
PIPE 6 | FOR U49
$13.03¢6 515
#29
Clip
$2.74¢1 368
#30
MOLE 3
$7.28¢3 640
#31
DAMPER, SIDE COVER
$7.04¢3 519
#32
HOOK, SIDE COVER 1
$7.38¢3 691
#33
Grommet
$4.31¢2 156
#34
COVER, SIDE 1
$47.72¢23 862
#35
GROMMET
$6.83¢3 415
#36
COLLAR
$3.48¢1 742
#37
GROMMET
$6.83¢3 415
#38
COLLAR
$7.58¢3 789
#39
HOOK, SIDE COVER 1
$7.38¢3 691
#40
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
#41
COVER, SIDE 2
$50.00¢25 001
#42
GROMMET
$6.83¢3 415
#43
COLLAR
$3.48¢1 742
#44
GROMMET
$6.83¢3 415
#45
COLLAR
$7.58¢3 789
#46
HOOK, SIDE COVER 1
$7.38¢3 691
#47
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
#48
PIPE, FUEL 1 (replaces 1RC-13971-00-00)
$71.37¢35 685
#49
COVER, TANK
$34.36¢17 181
#50
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
#51
COLLAR
$3.48¢1 742
#52
GROMMET
$6.83¢3 415
#53
HEAD
$10.43¢5 215
#54
PROTECTOR, FUEL TANK
$22.55¢11 276
#55
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
#56
DAMPER, PLATE 1
$7.23¢3 617
#57
DAMPER, PLATE 2
$3.43¢1 713
#58
DAMPER, PLATE 1
$32.53¢16 267
#59
DAMPER, PLATE 2
$11.48¢5 739
#60
PROTECTOR, FUEL TANK
$16.19¢8 096
#61
CANISTER ASSY | FOR CALIFORNIA
$346.86¢173 432
#62
DAMPER, LOCATING 3 | FOR CAL
$24.76¢12 380
#63
BRACKET, CANISTOR | FOR CAL
$13.96¢6 981
#64
BOLT, BUTTON HEAD
$2.74¢1 368
#65
PIPE 3 | FOR CAL
$27.16¢13 582
#66
Clip
$2.74¢1 368
#67
CLIP,SCISSOR
$2.99¢1 495
#68
PIPE 10
$0.89¢443
#69
CLIP | FOR CALIFORNIA
$6.99¢3 496
#70
CLAMP
$6.77¢3 387
