REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

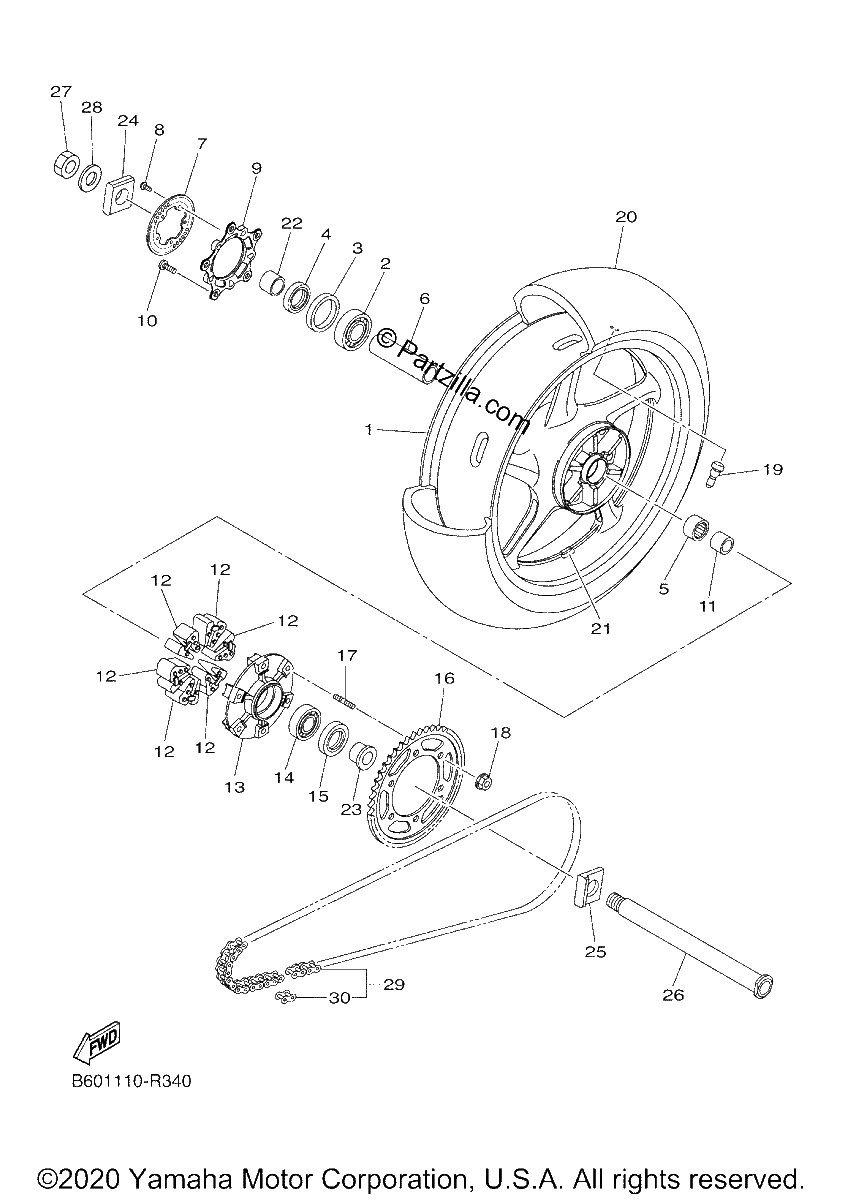

Diagrama de REAR WHEEL

Repuestos

#1
B60-25338-00-P1
CAST WHEEL, REAR
$719.89¢359 944
1
#2
93306-27802-00
BEARING
$70.46¢35 230
1
#3
2CR-2538E-00-00
NUT, ADJUSTING
$55.67¢27 836
1
#4
93106-40001-00
OIL SEAL
$11.11¢5 555
1
#5
93317-43580-00
BEARING
$69.60¢34 799
1
#6
5PW-25317-00-00
SPACER, BEARING
$54.81¢27 404
1
#7
1SD-2517G-00-00
ROTOR, SENSOR
$131.38¢65 688
1
#8
90149-05030-00
SCREW
$2.33¢1 167
1
#9
B60-2534C-00-00
RING, WHEEL REAR 1
$96.86¢48 432
1
#10
90149-05030-00
SCREW
$2.33¢1 167
1
#11
90387-28025-00
COLLAR
$50.19¢25 093
1
#12
2C0-25364-00-00
DAMPER
$22.80¢11 402
1
#13
B60-25366-00-00
CLUTCH, HUB
$287.06¢143 532
1
#14
93306-20531-00
BEARING
$48.71¢24 357
1
#15
93106-40013-00
OIL SEAL
$13.21¢6 607
1
#16
B60-25441-00-00
SPROCKET, DRIVEN (41T)
$103.13¢51 566
1
#17
90116-10048-00
BOLT, STUD
$25.00¢12 500
1
#18
90185-10011-00
NUT, SELF-LOCKING
$4.30¢2 151
1
#19
93900-00030-00
VALVE, RIM (TR412) | TAIHEIYO
$15.85¢7 923
1
#20
94119-17075-00
TIRE(190/55 ZR17 M/C 75W) | BRIDGESTONE
$461.18¢230 592
1
#21
5MT-25398-20-00
BALANCER, WHEEL (30G) | UN
$43.29¢21 643
1
#21
5MT-25398-10-00
BALANCER, WHEEL (20G) | UN
$16.85¢8 424
1
#21
5MT-25398-00-00
BALANCER, WHEEL (10G) | UN
$17.03¢8 516
1
#22
90387-28023-00
COLLAR
$24.31¢12 156
1
#23
90387-28024-00
COLLAR
$28.91¢14 455
1
#24
5VY-25388-00-00
PULLER, CHAIN 1
$59.42¢29 710
1
#25
5VY-25389-01-00
PULLER, CHAIN 2
$38.31¢19 153
1
#26
2CR-25381-00-00
AXLE, WHEEL
$68.72¢34 362
1
#27
90185-24007-00
NUT, SELF-LOCKING
$39.33¢19 665
1
#28
90201-25020-00
WASHER, PLATE
$7.01¢3 507
1
#29
94582-40114-00
CHAIN (DID 525VZ-114LL)
$171.33¢85 663
1
#30
94682-40031-00
JOINT, CHAIN (DID525VZ ZJ)
$8.57¢4 284
1
