FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

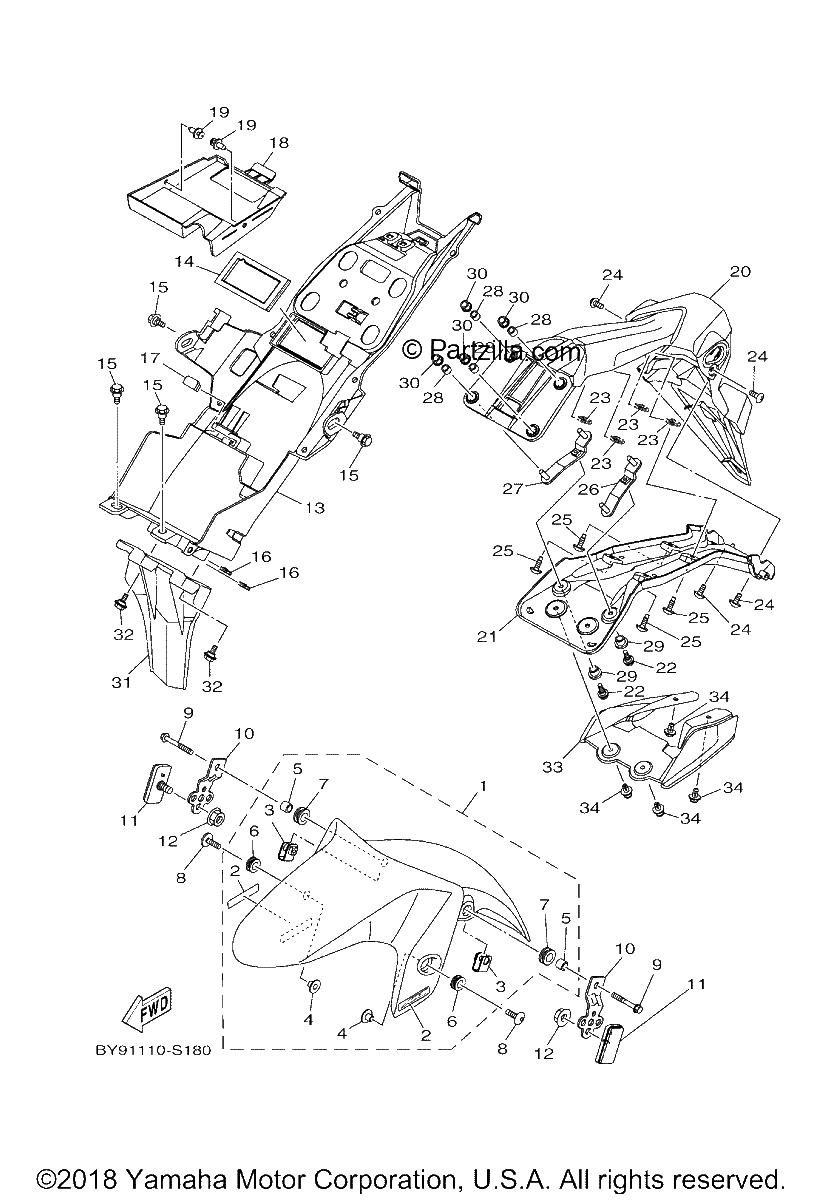

Diagrama de FENDER

Repuestos

#1
1WD-XF151-10-P3
FENDER, FRONT
$61.25¢30 624
1
#1
1WD-XF151-20-P7
FENDER, FRONT
$20.26¢10 131
1
#2
2WD-F1569-70-00
GRAPHIC 1
$8.57¢4 284
1
#2
2WD-F1569-80-00
GRAPHIC 1
$1.05¢523
1
#3
1WD-F1586-00-00
BRACKET
$1.18¢592
1
#4
90387-068C5-00
COLLAR
$2.50¢1 248
1
#5
90387-068L0-00
COLLAR
$2.39¢1 196
1
#6
90480-12815-00
GROMMET
$0.33¢167
1
#7
90480-15809-00
GROMMET
$1.86¢932
1
#8
90111-06137-00
BOLT,HEX. SOCKET BUTTON
$5.23¢2 616
1
#9
95027-06045-00
BOLT, SMALL FLANGE
$2.71¢1 357
1
#10
1WD-F113J-00-00
BRACKET, REFLECTOR 1
$4.19¢2 093
1
#11
8GM-85110-00-00
REFLECTOR ASSY
$13.04¢6 520
1
#12
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
#13
1WD-F1611-02-00
FENDER, REAR (replaces 1WD-F1611-01-00)
$49.17¢24 587
1
#14
1WD-F1669-00-00
SEAL
$3.14¢1 570
1
#15
90109-063F1-00
BOLT
$2.52¢1 259
1
#16
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#17
1WD-F16A2-00-00
SEAL, 2
$1.18¢592
1
#18
1WD-F163E-00-00
COVER, REAR FENDER 2
$11.26¢5 629
1
#19
90269-06081-00
RIVET
$6.23¢3 117
1
#20
1WD-F1629-01-00
GUARD, MUD
$30.57¢15 283
1
#21
1WD-F1617-00-00
BRACKET, FENDER
$15.96¢7 981
1
#22
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.44¢2 720
1
#23
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#24
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#25
90111-05018-00
BOLT, HEX. SOCKET BUTTON
$6.46¢3 231
1
#26
1WD-F1688-00-00
BRACKET, REAR STAY
$7.31¢3 657
1
#27
1WD-F1689-00-00
BRACKET, REAR STAY 2
$26.45¢13 225
1
#28
90387-07573-00
COLLAR
$8.18¢4 088
1
#29
90387-068L9-00
COLLAR
$2.60¢1 299
1
#30
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#31
1WD-F1621-00-00
FLAP
$4.25¢2 128
1
#32
90109-05003-00
BOLT
$5.89¢2 944
1
#33
1WD-F163A-00-00
COVER, REAR FENDER 1
$4.60¢2 300
1
#34
90269-06081-00
RIVET
$6.23¢3 117
1
