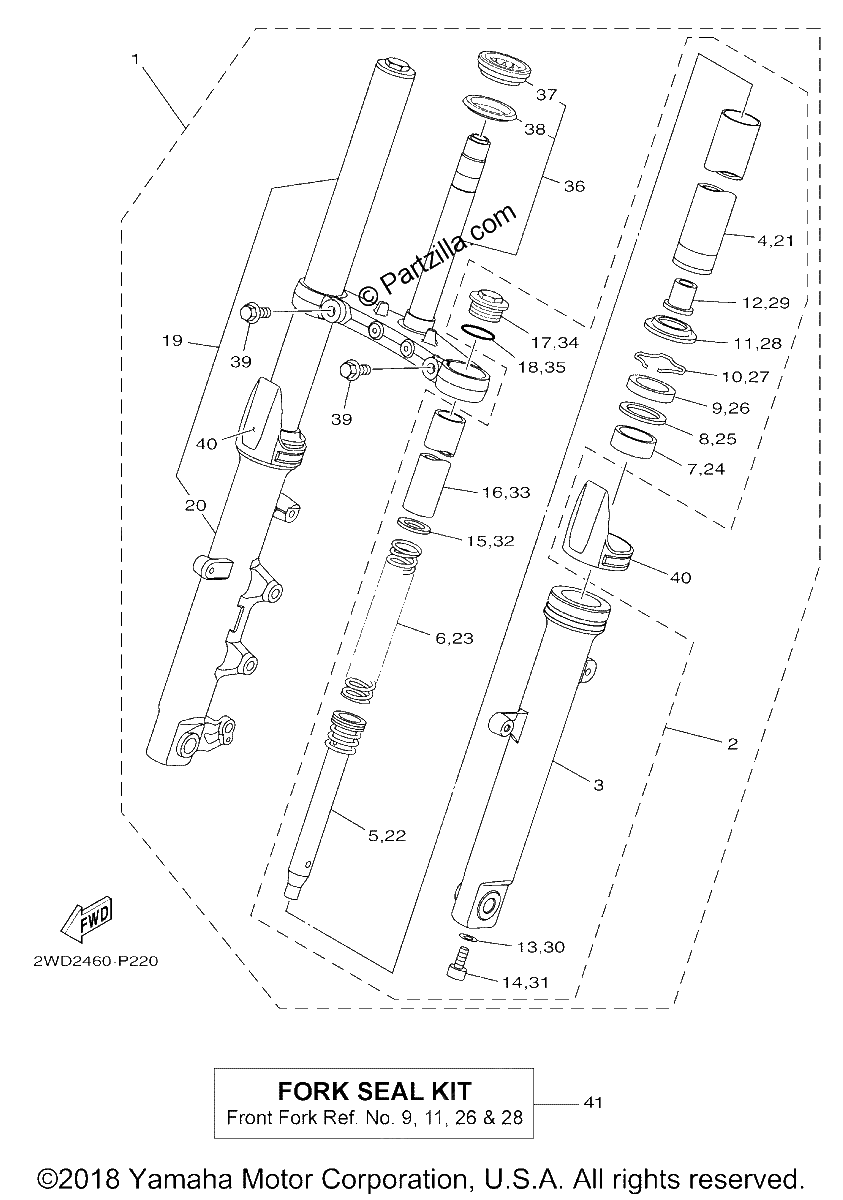

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY
$591.58¢295 791
#2
FRONT FORK ASSY (L.H)
$274.64¢137 322
#3
TUBE, OUTER (L.H)
$99.68¢49 841
#4
INNER TUBE COMP. 1
$112.23¢56 114
#5
CYLINDER COMP., FRONT FOR
No Disponible
#6
SPRING, FRONT FORK
$14.69¢7 343
#7
METAL, SLIDE 1
$38.36¢19 182
#8
WASHER, OIL SEAL
$1.35¢673
#9
OIL SEAL
$4.30¢2 151
#10
RING, SNAP
$0.60¢299
#11
SEAL, DUST
$7.38¢3 691
#12
SPINDLE, TAPER
$8.36¢4 180
#13
GASKET | (KYB)
$15.72¢7 860
#14
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#15
WASHER, SPRING UPPER
$0.40¢201
#16
SPACER
No Disponible
#17
BOLT, CAP
No Disponible
#18
O-RING
$1.18¢592
#19
FRONT FORK ASSY (R.H)
$265.17¢132 584
#20
TUBE, OUTER
$124.95¢62 474
#21
INNER TUBE COMP. 1
$112.23¢56 114
#22
CYLINDER COMP., FRONT FOR
No Disponible
#23
SPRING, FRONT FORK
$14.69¢7 343
#24
METAL, SLIDE 1
$38.36¢19 182
#25
WASHER, OIL SEAL
$1.35¢673
#26
OIL SEAL
$4.30¢2 151
#27
RING, SNAP
$0.60¢299
#28
SEAL, DUST
$7.38¢3 691
#29
SPINDLE, TAPER
$8.36¢4 180
#30
GASKET | (KYB)
$15.72¢7 860
#31
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#32
WASHER, SPRING UPPER
$0.40¢201
#33
SPACER
No Disponible
#34
BOLT, CAP
No Disponible
#35
O-RING
$1.18¢592
#36
UNDER BRACKET COMP.
$151.09¢75 544
#37
BEARING
$60.89¢30 446
#38
SEAL, STEERING
$23.48¢11 742
#39
BOLT 1
$1.45¢724
#40
Cover
$8.45¢4 226
#41
FORK SEAL KIT
$43.54¢21 769
