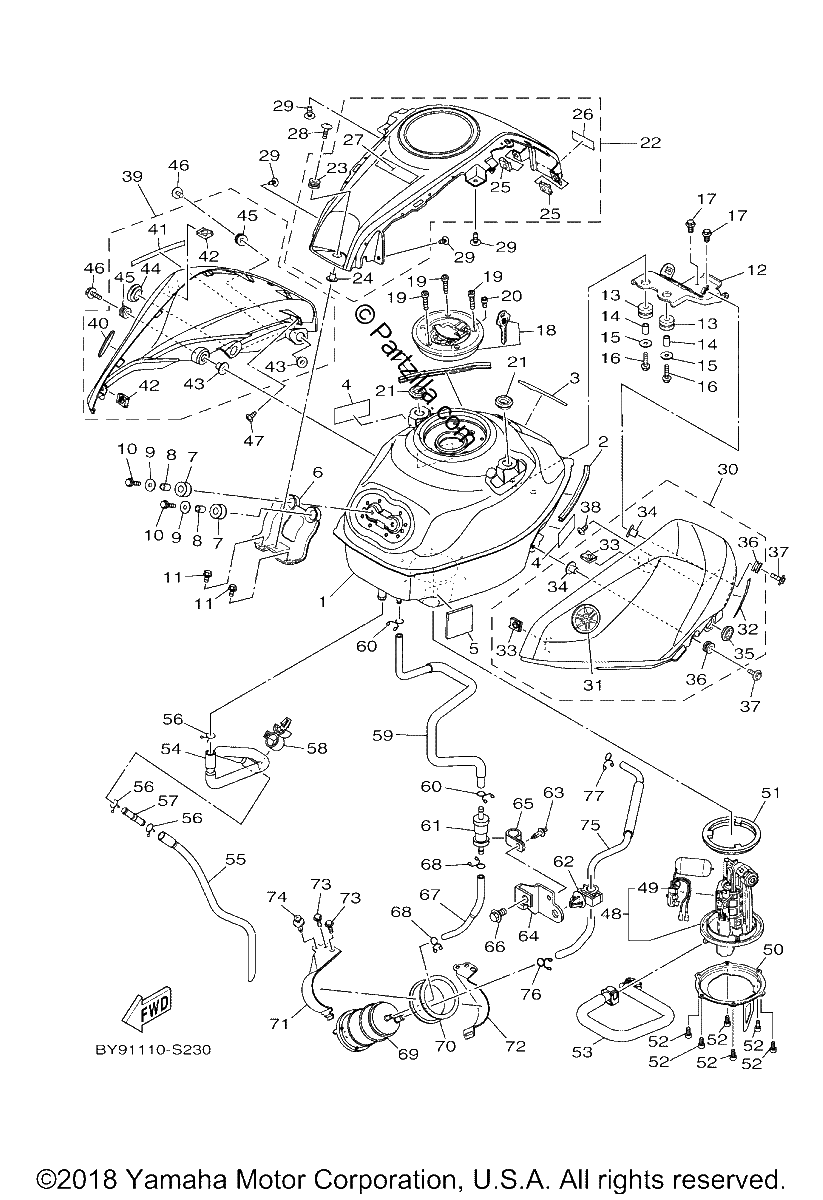

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FUEL TANK COMP. (replaces 1WD-F4110-00-00)
$388.39¢194 194
#2
MOLD, FUEL TANK
$6.04¢3 019
#3
DAMPER, PLATE
$1.66¢831
#4
SEAL
$2.13¢1 063
#5
DAMPER, PLATE 1
No Disponible
#6
BRACKET, TANK FITTIN
$15.51¢7 756
#7
GROMMET
No Disponible
#8
COLLAR
$5.76¢2 881
#9
WASHER PLAIN
$0.69¢344
#10
BOLT,FLANGE (replaces 90105-06125-00)
$1.75¢875
#11
BOLT, FLANGE (replaces 95802-06012-00)
No Disponible
#12
BRACKET, FUEL TANK 1
No Disponible
#13
GROMMET
$1.36¢681
#14
COLLAR
$5.76¢2 881
#15
WASHER PLAIN
$0.69¢344
#16
BOLT,FLANGE (replaces 90105-06125-00)
$1.75¢875
#17
BOLT, FLANGE
$7.43¢3 713
#18
CAP ASSY
$157.03¢78 513
#19
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
#20
BOLT
$5.86¢2 931
#21
Grommet
$4.69¢2 344
#22
TANK SIDE COVER 1
$126.55¢63 275
#23
GROMMET
$2.95¢1 475
#24
COLLAR
$2.94¢1 469
#25
NUT, SPRING
$1.25¢625
#26
SEAL
$2.11¢1 056
#27
LABEL, CAUTION
$7.16¢3 581
#28
BOLT, HEX. SOCKET BUTTON
$1.75¢875
#29
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#30
FUEL TANK COMP.
$27.60¢13 800
#30
FUEL TANK COMP.
$68.16¢34 081
#31
EMBLEM
$10.56¢5 281
#32
SEAL 2
$2.95¢1 475
#33
NUT, SPRING
$1.25¢625
#34
COLLAR
$2.94¢1 469
#35
Grommet
$5.72¢2 863
#36
GROMMET
$2.95¢1 475
#37
BOLT, WITH WASHER
$6.38¢3 188
#38
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#39
TANK SIDE COVER 2
$129.45¢64 725
#39
TANK SIDE COVER 2
$67.64¢33 819
#40
EMBLEM
$10.56¢5 281
#41
SEAL 2
$2.95¢1 475
#42
NUT, SPRING
$1.25¢625
#43
COLLAR
$2.94¢1 469
#44
Grommet
$5.72¢2 863
#45
GROMMET
$2.95¢1 475
#46
BOLT, WITH WASHER
$6.38¢3 188
#47
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#48
FUEL PUMP COMP. (replaces 1WD-E3907-11-00)
$270.89¢135 444
#49
SENDER UNIT ASSY, FU
$169.74¢84 869
#50
BRACKET, FUEL PUMP
$12.20¢6 100
#51
O-RING
$44.56¢22 281
#52
BOLT
$5.86¢2 931
#53
PIPE, FUEL 1 (replaces 1WD-E3971-00-00)
$73.64¢36 819
#54
PIPE 2
$14.19¢7 094
#55
PIPE 4
$16.00¢8 000
#56
CLIP,SCISSOR
$5.61¢2 806
#57
PIPE, JOINT 1
$16.65¢8 325
#58
Clamp
$6.45¢3 225
#59
PIPE 4
$32.24¢16 119
#60
Clip
$2.97¢1 487
#61
ROLL OVER VALVE ASSY
$89.56¢44 781
#62
CLAMP
$3.15¢1 575
#63
RIVET
$3.02¢1 513
#64
BRACKET, CANISTOR
No Disponible
#65
Clamp
$2.35¢1 175
#66
BOLT, SMALL FLANGE (replaces 9502M-08012-00)
$8.21¢4 106
#67
PIPE 5
$9.59¢4 794
#68
Clip
$2.97¢1 487
#69
CANISTER ASSY
$155.65¢77 825
#70
BAND
$3.71¢1 856
#71
BRACKET, CANISTER
$14.59¢7 294
#72
BRACKET, CANISTER
$13.67¢6 837
#73
BOLT, FLANGE
$7.48¢3 738
#74
RIVET
$6.78¢3 388
#75
PIPE 6
$26.66¢13 331
#76
CLIP
$9.00¢4 500
#77
Clip
$2.97¢1 487
