SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

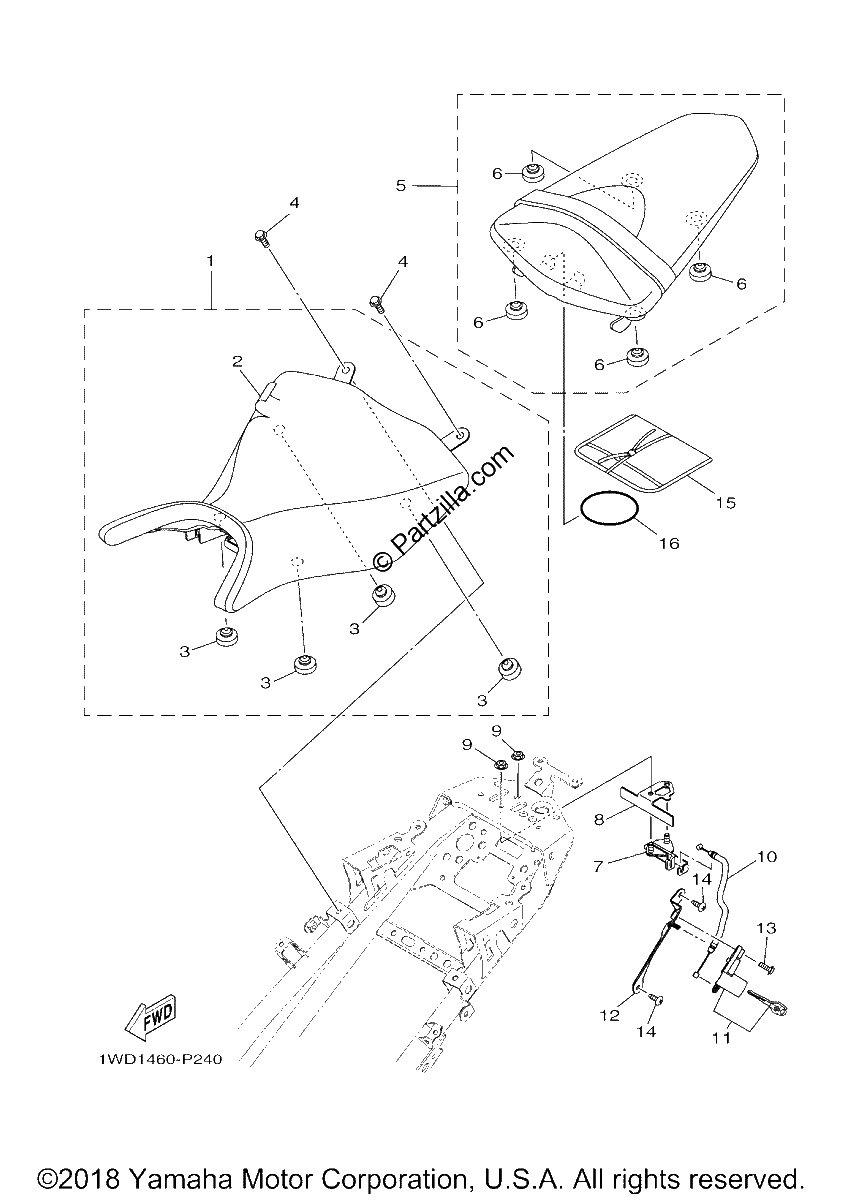

Diagrama de SEAT

Repuestos

#1
1WD-F4710-01-00
SINGLE SEAT ASSY
$57.53¢28 763
1
#2
1WD-F4711-00-00
COVER, SINGLE SEAT
$12.80¢6 400
1
#3
5BP-F4741-00-00
PAD, SEAT
$2.95¢1 475
1
#4
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#5
1WD-F4750-00-00
TANDEM SEAT ASSY
$72.61¢36 306
1
#6
3C1-F4741-00-00
PAD, SEAT
$1.42¢712
1
#7
1WD-F4780-00-00
SEAT LOCK ASSY
$24.44¢12 219
1
#8
1WD-F4792-00-00
PLATE
$20.11¢10 056
1
#9
95707-06500-00
NUT, FLANGE
$0.94¢469
1
#10
1WD-F478E-00-00
CABLE, SEAT LOCK
$7.91¢3 956
1
#11
1WD-WF479-00-00
ROTOR SUB ASSY WITH KEY
$79.09¢39 544
1
#12
1WD-F117K-00-00
STAY, LOCK
$5.00¢2 500
1
#13
90159-06054-00
SCREW, WITH WASHER
$1.29¢644
1
#14
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#15
1WD-F8100-00-00
TOOL KIT
$36.88¢18 438
1
#16
5VV-H2131-00-00
BAND, BATTERY (replaces 5TL-H2131-00-00)
$3.01¢1 506
1
