WINDSHIELD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

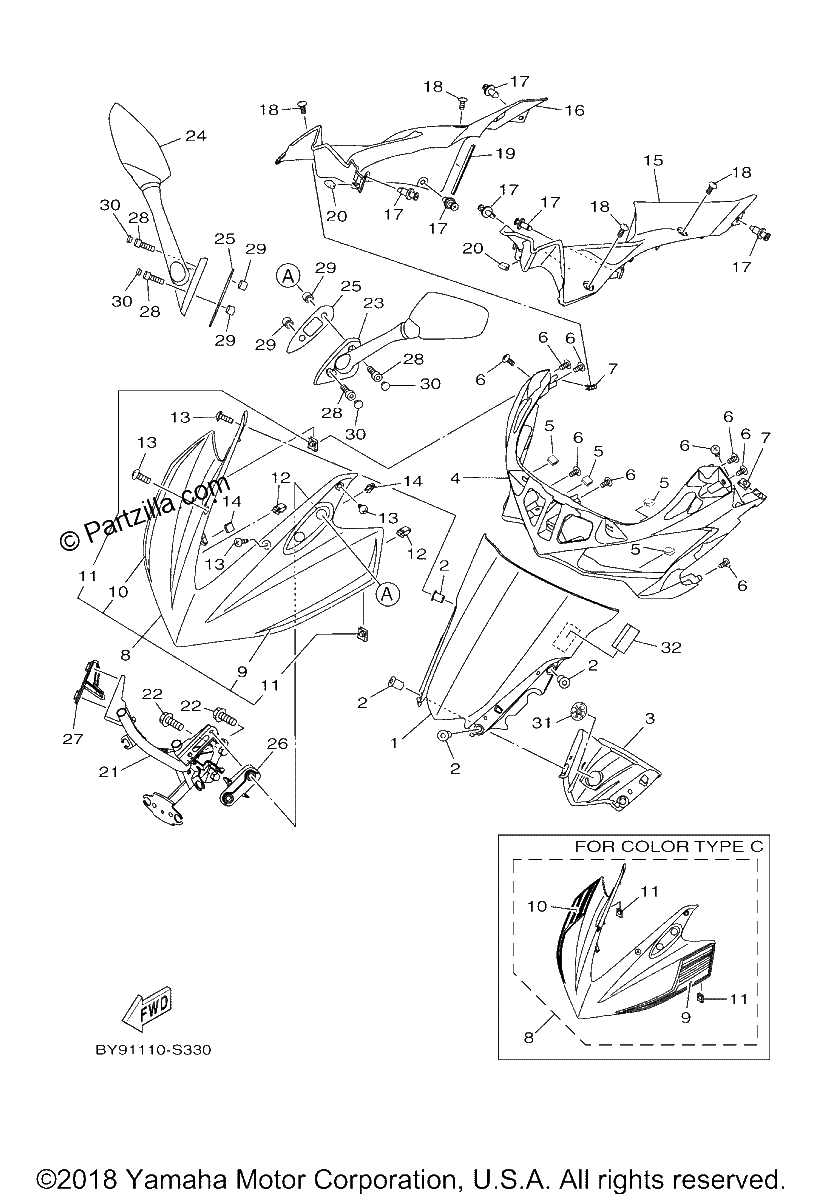

Diagrama de WINDSHIELD

Repuestos

#1
1WD-F8381-00-00
WINDSHIELD
$98.35¢49 175
1
#2
90179-05523-00
NUT
$6.78¢3 388
1
#3
1WD-H3559-00-00
COVER, METER
$15.10¢7 550
1
#4
1WD-F835G-00-00
BODY, FRONT UPPER 1
$39.71¢19 856
1
#5
1WD-F8376-00-00
TRIM
$2.95¢1 475
1
#6
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#7
90183-050A7-00
NUT, SPRING
$3.11¢1 556
1
#8
1WD-XF83F-30-P3
BODY COWLING SUB ASS
$54.92¢27 463
1
#8
1WD-XF83F-00-P5
BODY COWLING SUB ASS
$90.60¢45 300
1
#9
1WD-F8391-B0-00
GRAPHIC 1
$5.00¢2 500
1
#9
1WD-F8391-C0-00
GRAPHIC 1
$5.38¢2 688
1
#10
1WD-F8392-B0-00
GRAPHIC 2
$4.45¢2 225
1
#10
1WD-F8392-C0-00
GRAPHIC 2
$5.38¢2 688
1
#11
90183-05042-00
NUT, SPRING
$1.25¢625
1
#12
44D-F8379-00-00
HOOK
$6.14¢3 069
1
#13
90150-05023-00
SCREW,ROUND HEAD
$3.33¢1 663
1
#14
1WD-F8376-00-00
TRIM
$2.95¢1 475
1
#15
1WD-F836N-00-00
PANEL, INNER 4
$11.81¢5 906
1
#16
1WD-F836R-00-00
PANEL, INNER 5
$34.98¢17 488
1
#17
90269-06081-00
RIVET
$6.78¢3 388
1
#18
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
1
#19
1WD-F1278-00-00
MOLD
$1.21¢606
1
#20
1WD-F8376-00-00
TRIM
$2.95¢1 475
1
#21
1WD-F8356-00-00
STAY 1
$43.49¢21 744
1
#22
95817-08035-00
BOLT,FLANGE (replaces 90105-08108-00)
$7.94¢3 969
1
#23
1WD-F6280-10-00
REAR VIEW MIRROR ASSY (LEFT)
$158.24¢79 119
1
#24
1WD-F6290-10-00
REAR VIEW MIRROR ASSY (RIGHT)
$159.64¢79 819
1
#25
1WD-F8483-00-00
PLATE, RUBBER 1
$7.91¢3 956
1
#26
1WD-F8484-00-00
PLATE, RUBBER 2
$10.77¢5 387
1
#27
1WD-F8485-00-00
PLATE, RUBBER 3
$9.91¢4 956
1
#28
91317-06025-00
BOLT
$2.44¢1 219
1
#29
90387-068C2-00
COLLAR
$1.75¢875
1
#30
90338-05010-00
PLUG
$7.46¢3 731
1
#31
1PA-F836B-00-00
TUNING FORK MARK
$34.40¢17 200
1
#32
1WD-F815K-10-00
LABEL, NOTICE WINDSHIELD 1
$1.29¢644
1
