REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

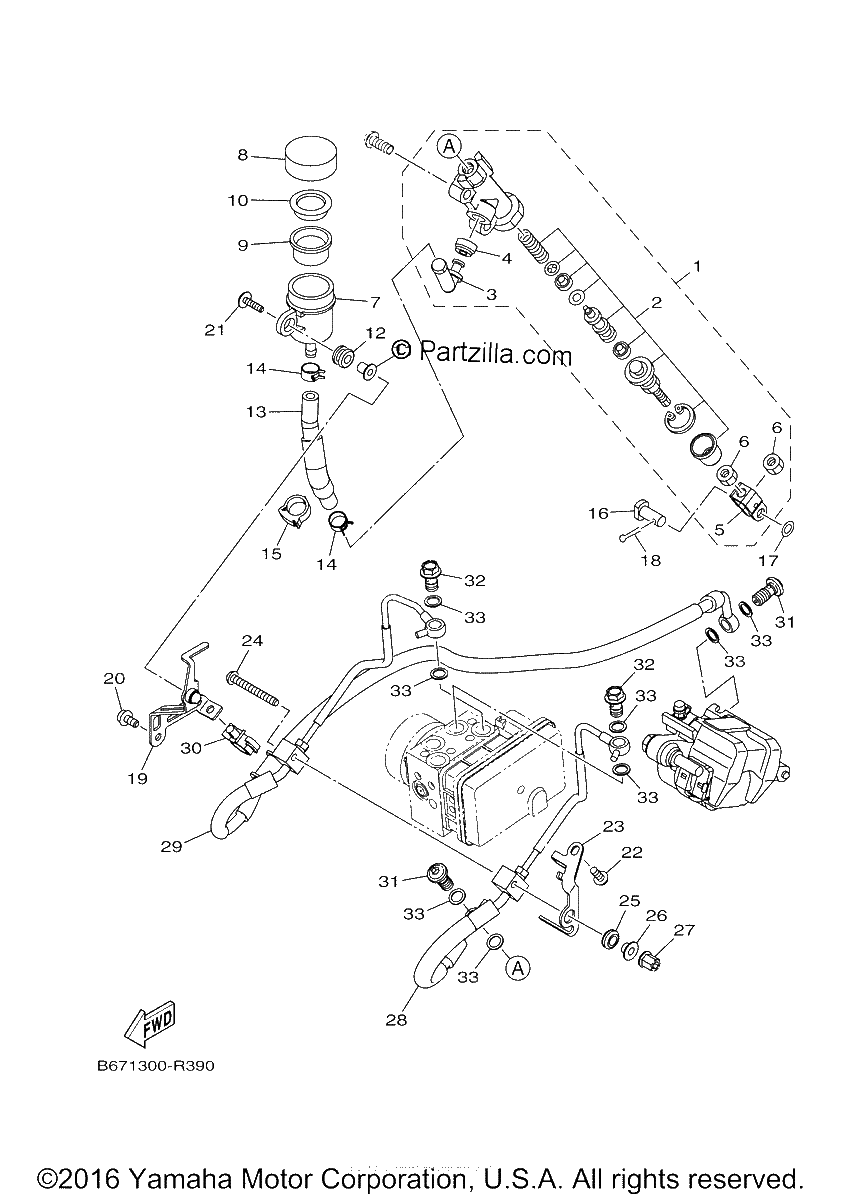

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
56P-2583V-00-00
REAR MASTER CYLINDER ASSY.
$147.61¢73 807
1
#2
56P-25808-50-00
CYLINDER KIT, MASTER
$92.79¢46 397
1
#3
2D1-2582A-00-00
JOINT
$112.06¢56 028
1
#4
4BP-2585F-01-00
O-RING
$10.48¢5 238
1
#5
4BP-27222-02-00
JOINT
$29.55¢14 777
1
#6
90170-08010-00
NUT
$6.89¢3 444
1
#7
2C0-25894-00-00
TANK, RESERVOIR
$26.79¢13 397
1
#8
2C0-25852-00-00
CAP, RESERVOIR
$6.29¢3 145
1
#9
2VN-25854-00-00
DIAPHRAGM, RESERVOIR
$21.50¢10 753
1
#10
2VN-25855-00-00
BUSH,DIAPHRAGM
$10.43¢5 215
1
#11
90387-05028-00
COLLAR
$6.39¢3 197
1
#12
2C0-26326-00-00
GROMMET
$5.91¢2 956
1
#13
B67-25895-00-00
HOSE, RESERVOIR
$11.53¢5 767
1
#14
90467-120A3-00
CLIP
$6.43¢3 214
1
#15
90464-16001-00
CLAMP
$1.87¢937
1
#16
90240-08005-00
PIN, CLEVIS
$6.75¢3 375
1
#17
90201-08066-00
WASHER, PLATE
$6.95¢3 473
1
#18
91401-20012-00
PIN, COTTER
$2.02¢1 012
1
#19
B67-21228-00-00
BRACKET, RESERVE TANK
$19.86¢9 930
1
#20
90109-060E9-00
BOLT
$7.72¢3 858
1
#21
90111-05026-00
BOLT, HEX. SOCKET BUTTON
$7.44¢3 720
1
#22
92017-06016-00
BLT,BTTN HD (replaces 90111-06007-00)
$6.75¢3 375
1
#23
B67-2122A-00-00
STAY 1
$10.75¢5 376
1
#24
90109-06N29-00
BOLT
$4.32¢2 162
1
#25
90480-12024-00
GROMMET
$1.46¢730
1
#26
90387-06142-00
COLLAR
$4.22¢2 110
1
#27
90179-06033-00
NUT
$4.38¢2 191
1
#28
B67-2581J-00-00
HOSE, BRAKE 4
$145.68¢72 841
1
#29
B67-2581K-00-00
HOSE, BRAKE 5
$184.44¢92 218
1
#30
90464-14013-00
CLAMP
$3.22¢1 610
1
#31
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#32
90401-10049-00
BOLT, union
$2.94¢1 472
1
#33
90430-10005-00
GASKET
$7.72¢3 858
1
