ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

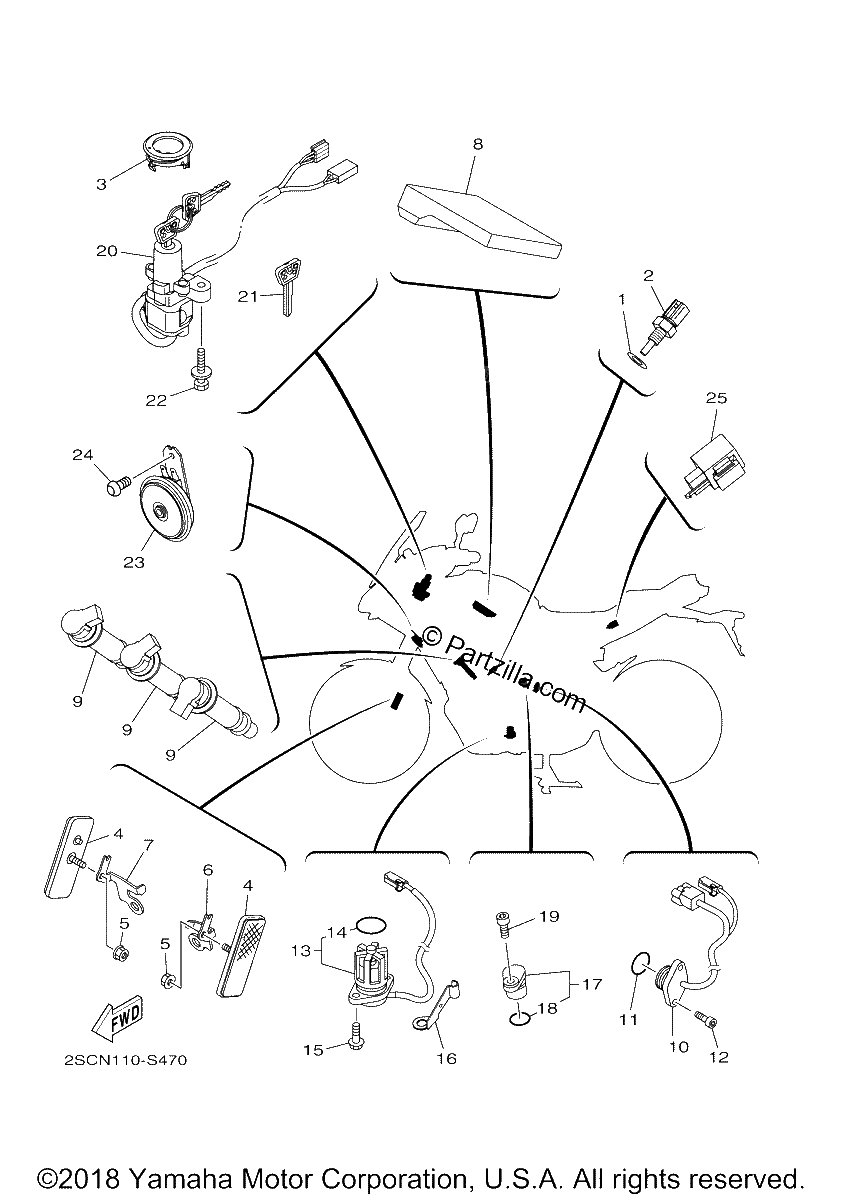

Diagrama de ELECTRICAL 2

Repuestos

#1
90430-10004-00
GASKET
$6.51¢3 254
1
#2
54P-H3591-00-00
THERMO UNIT (replaces 4P9-83591-00-00)
$31.65¢15 824
1
#3
B90-82552-00-00
CAP, SWITCH
$42.52¢21 258
1
#4
11H-85110-01-00
REFLECTOR ASSY
$22.93¢11 466
1
#5
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
#6
1RC-85112-00-00
BRACKET, REFLECTOR 1
$14.41¢7 205
1
#7
1RC-85122-00-00
BRACKET, REFLECTOR 2
$12.35¢6 176
1
#8
2SC-8591A-70-00
ENGINE CONTROL UNIT ASSY
$1319.04¢659 519
1
#9
1RC-82310-00-00
IGNITION COIL ASSY
$125.28¢62 640
1
#10
1RC-82540-00-00
NEUTRAL SWITCH ASSY
$80.90¢40 451
1
#11
93210-21001-00
O-RING
$5.23¢2 616
1
#12
90110-05038-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#13
5S7-85720-00-00
OIL LEVEL GAUGE ASSY
$105.27¢52 636
1
#14
5VY-8A8E0-00-00
O-RING
$11.99¢5 997
1
#15
95022-06016-00
BOLT, FLANGE
$3.65¢1 823
1
#16
90465-08053-00
CLAMP
$5.55¢2 777
1
#17
3P6-15399-00-00
PLUG, BLIND
$20.10¢10 051
1
#18
93210-15566-00
O-RING
$6.32¢3 162
1
#19
91317-06016-00
BOLT
$1.35¢673
1
#20
1RC-82501-30-00
MAIN SWITCH STEERING LOCK
$159.22¢79 609
1
#21
4BH-82511-09-00
BLANK KEY | AP
$26.78¢13 392
1
#22
90109-08196-00
BOLT
$6.76¢3 381
1
#23
BS2-83371-00-00
HORN (replaces B90-83371-00-00)
$75.64¢37 818
1
#24
92017-06010-00
BOLT, BUTTON HEAD
$3.36¢1 679
1
#25
4C8-83350-10-00
FLASHER RELAY ASSY
$79.29¢39 646
1
