CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

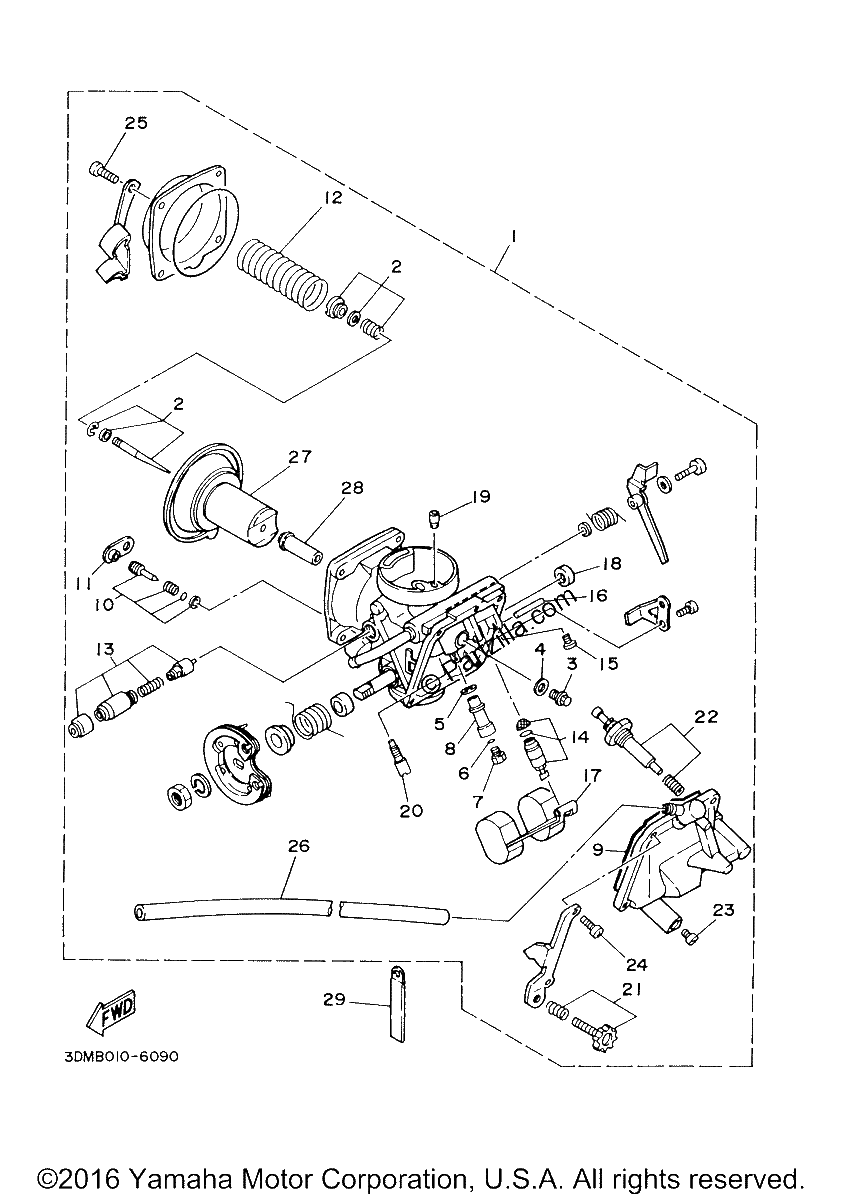

Diagrama de CARBURETOR

Repuestos

#1
2UJ-14900-01-00
CARBURETOR ASSY | U49
$1237.63¢618 815
1
#1
3BG-14900-01-00
CARBURETOR ASSY | FOR CALIFORNIA
$1288.16¢644 081
1
#2
3BG-1490J-00-00
NEEDLE SET
$30.54¢15 272
1
#3
1HX-14565-00-00
SCREW
$18.58¢9 292
1
#4
137-14153-00-00
WASHER, MAIN JET
$7.07¢3 536
1
#5
1AE-14237-00-00
GASKET
$6.99¢3 496
1
#6
1AE-14227-00-00
O-RING
$9.56¢4 778
1
#7
620-14231-22-A0
JET, MAIN (110)
$13.25¢6 624
1
#8
1AE-14261-00-00
HOLDER
$26.19¢13 093
1
#9
1HX-14147-00-00
O-RING
$17.39¢8 694
1
#10
12R-14105-00-00
PILOT SCREW SET
$16.53¢8 263
1
#11
3F9-14118-00-00
CAP
$8.26¢4 129
1
#12
1HX-14933-00-00
SPRING, DIAPHRAGM
$31.89¢15 945
1
#13
3DM-1410A-10-00
STARTER SET
$90.13¢45 063
1
#14
3CF-14107-10-00
NEEDLE VALVE SET
$34.79¢17 394
1
#15
1FN-14565-00-00
SCREW
$7.04¢3 519
1
#16
353-14186-00-00
PIN, FLOAT
$7.38¢3 691
1
#17
1HX-14985-00-00
FLOAT
$80.04¢40 020
1
#18
256-14997-00-00
SEAL
$11.05¢5 526
1
#19
1HX-14231-31-00
JET, MAIN (#155)
$11.24¢5 618
1
#20
22F-14142-17-00
JET, PILOT (#17.5)
$8.69¢4 347
1
#21
1HX-14103-00-00
THROTTLE SCREW SET
$22.40¢11 201
1
#22
3DM-14504-01-00
ROD SET
$55.11¢27 554
1
#23
12R-14191-00-00
PLUG, DRAIN
$15.65¢7 826
1
#24
98580-04014-00
SCREW, PAN HEAD
$3.06¢1 529
1
#25
98501-04012-00
SCREW, PAN HEAD
No Disponible
1
#26
50H-14987-00-00
HOSE
$40.85¢20 424
1
#27
3BG-14940-00-00
DIAPHRAGM ASSY
$260.53¢130 266
1
#28
3DM-14141-30-00
MAIN NOZZLE (0-0)
$39.55¢19 774
1
#29
3XV-14243-00-00
CLAMP
No Disponible
1
