TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

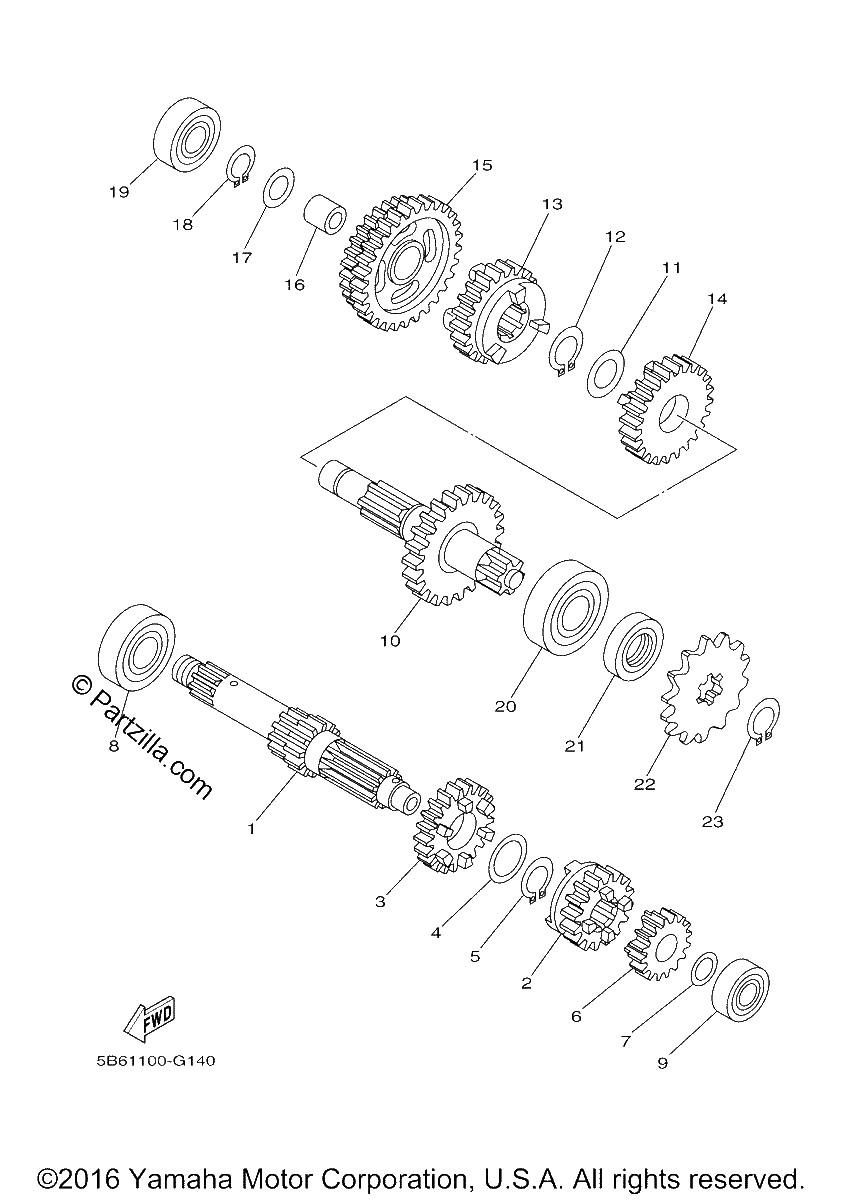

Diagrama de TRANSMISSION

Repuestos

#1
4S9-E7411-00-00
AXLE, MAIN (12T) (replaces 4ST-E7411-00-00)
$32.29¢16 146
1
#2
5TP-E7131-00-00
GEAR, 3RD PINION (JU
$32.57¢16 284
1
#3
5TP-E7141-00-00
GEAR, 4TH PINION (JU
$36.56¢18 279
1
#4
90201-20266-00
WASHER, PLATE (T=1.0)
$8.99¢4 497
1
#5
93410-20038-00
CIRCLIP
$2.86¢1 432
1
#6
5TP-E7121-00-00
GEAR, 2ND PINION (JU
$34.90¢17 451
1
#7
90201-12166-00
WASHER, PLATE (replaces 90201-128C9-00)
$6.88¢3 439
1
#8
93306-203YR-00
BEARING
$40.46¢20 228
1
#9
93306-00105-00
BEARING
$27.84¢13 921
1
#10
5TP-E7402-00-00
DRIVE AXLE ASSY (JUP
$433.54¢216 769
1
#11
90201-20266-00
WASHER, PLATE (T=1.0)
$8.99¢4 497
1
#12
93410-20038-00
CIRCLIP
$2.86¢1 432
1
#13
5TP-E7241-00-00
GEAR, 4TH WHEEL (JUP
$23.23¢11 615
1
#14
5TP-E7231-00-00
GEAR, 3RD WHEEL (JUP
$26.93¢13 467
1
#15
5TP-E7211-00-00
GEAR, 1ST WHEEL (JUP
$69.68¢34 839
1
#16
90387-1503D-00
Collar
$17.80¢8 901
1
#17
90201-154E8-00
WASHER, PLATE (T=1.0)
$6.75¢3 375
1
#18
99009-15400-00
CIRCLIP (55X)
$5.75¢2 875
1
#19
93306-20203-00
BEARING
$25.44¢12 719
1
#20
93306-204YC-00
BEARING
$12.17¢6 084
1
#21
93102-20892-00
Oil Seal
$1.35¢673
1
#22
93812-14814-00
SPROCKET, DRIVE (5B6
$13.48¢6 739
1
#23
93410-20038-00
CIRCLIP
$2.86¢1 432
1
