HANDLE SWITCH LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

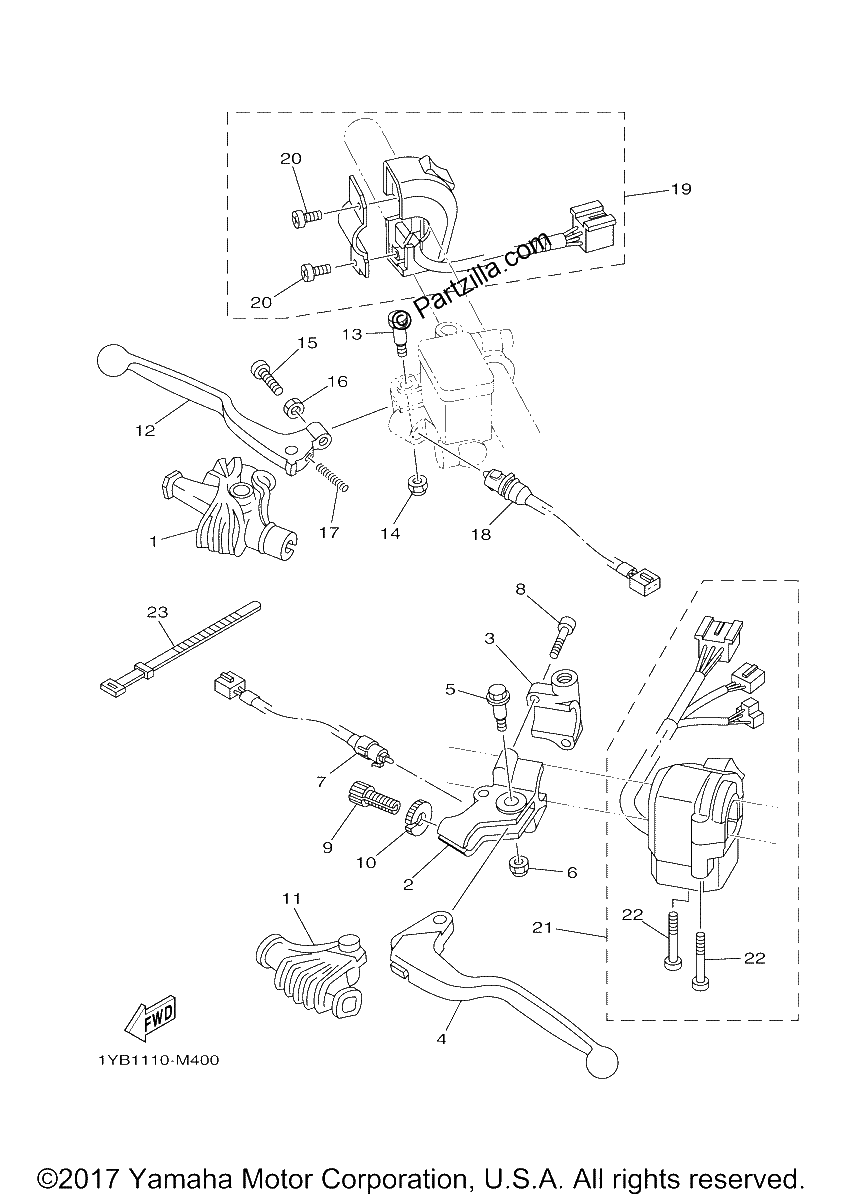

Diagrama de HANDLE SWITCH LEVER

Repuestos

#1
1T5-26372-00-00
COVER,HANDLE LEVER
$19.56¢9 781
1
#2
5XT-82911-00-00
HOLDER, LEVER 1
$32.18¢16 089
1
#3
33G-82913-01-00
HOLDER,LEVER LWR 1
$18.22¢9 108
1
#4
23X-83912-02-00
LEVER 1
$23.52¢11 759
1
#5
90109-06798-00
bolt
$6.87¢3 433
1
#6
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#7
3C5-82917-00-00
SWITCH
$38.67¢19 337
1
#8
91317-05020-00
bolt
$2.71¢1 357
1
#9
90123-08002-00
bolt
$10.06¢5 031
1
#10
90179-08030-00
Nut
$4.27¢2 133
1
#11
1E6-26372-00-00
COVER,HANDLE LEVER
$21.83¢10 914
1
#12
55Y-83922-02-00
LEVER 2
$37.97¢18 987
1
#13
90109-06255-00
bolt
$1.82¢909
1
#14
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#15
90154-06028-00
SCREW, BINDING
$5.95¢2 973
1
#16
90170-06020-00
Nut
$5.88¢2 938
1
#17
90501-10312-00
SPRING,COMPRESSION
$6.75¢3 375
1
#18
3C5-83980-00-00
FRONT STOP SWITCH AS
$40.82¢20 412
1
#19
3C5-83975-11-00
SWITCH, HANDLE 2 (replaces 3C5-83975-10-00)
$58.51¢29 256
1
#20
98507-05018-00
SCREW,PANHEAD(4MY
$2.71¢1 357
1
#21
3C5-83973-00-00
SWITCH, HANDLE 3
$260.10¢130 048
1
#22
98517-05030-00
SCREW, PAN HEAD (replaces 98507-05030-00)
$8.69¢4 347
1
#23
437-83936-01-00
BAND,SWITCH CORD
$5.24¢2 622
1
