REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

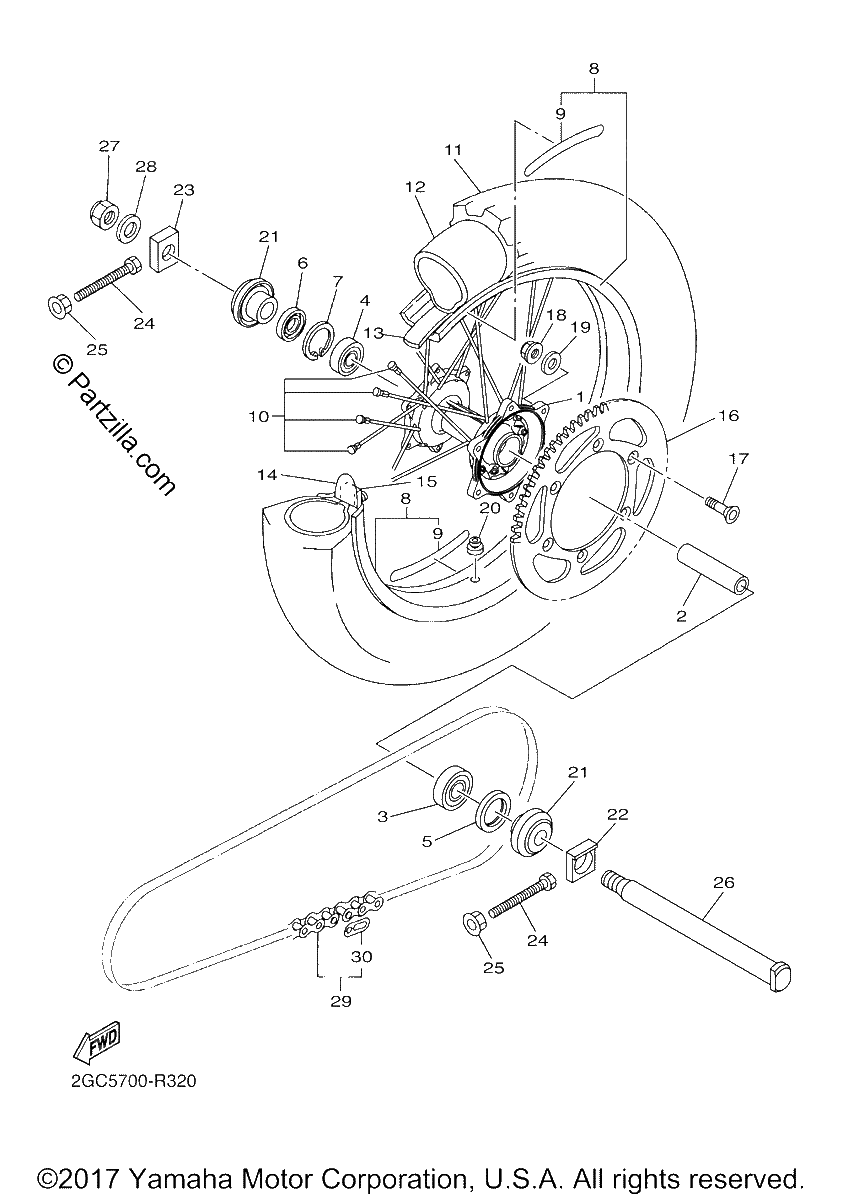

Diagrama de REAR WHEEL

Repuestos

#1
5ET-25311-00-00
HUB, REAR
$293.20¢146 602
1
#2
5ET-25317-00-00
SPACER, BEARING
$46.98¢23 489
1
#3
93306-27212-00
BEARING
$72.21¢36 104
1
#4
93306-07202-00
BEARING
$36.97¢18 486
1
#5
93106-30001-00
OIL SEAL
$10.97¢5 485
1
#6
93106-30045-00
OIL SEAL
$8.69¢4 347
1
#7
99009-45500-00
CIRCLIP
$2.74¢1 368
1
#8
94421-18036-00
RIM (2.15-18)
$351.69¢175 847
1
#9
17D-2531B-00-00
EMBLEM, WHEEL
$13.42¢6 710
1
#10
5GS-25304-00-00
SPOKE SET, REAR
$193.40¢96 698
1
#11
94112-18034-00
TIRE (120/90-18 65M MX51) | DUNLOP
No Disponible
1
#12
94212-18188-00
TUBE (110-140/80-100-18 M/C) | BRIDGESTONE
$36.50¢18 251
1
#13
94340-18086-00
BAND, RIM (2.50-18) | BRIDGESTONE
$17.54¢8 769
1
#14
3JE-25394-00-00
SPACER,BEAD
$36.54¢18 268
1
#15
4XM-25364-00-00
Damper
$7.28¢3 640
1
#16
5GS-25448-50-00
SPROCKET, DRIVEN (48T) | AP
$49.19¢24 593
1
#16
5TJ-25450-80-00
SPROCKET, DRIVEN (50T) | STD
$65.64¢32 821
1
#16
5TJ-25452-80-00
SPROCKET, DRIVEN (52T) | AP
$90.34¢45 172
1
#17
90109-08078-00
bolt
$5.65¢2 823
1
#18
90185-08008-00
NUT, SELF-LOCKING
$6.59¢3 295
1
#19
90201-08048-00
WASHER, PLATE
$6.30¢3 151
1
#20
90480-10068-00
GROMMET (replaces 90480-08608-00)
$7.42¢3 709
1
#21
1DX-2530S-00-00
COLLAR ASSY
$25.36¢12 679
1
#22
1C3-25388-H0-00
PULLER, CHAIN 1
$22.23¢11 115
1
#23
1C3-25389-H0-00
PULLER, CHAIN 2
$27.31¢13 656
1
#24
90101-08006-00
bolt
$7.37¢3 686
1
#25
90179-08019-00
Nut
$5.73¢2 864
1
#26
1C3-25381-90-00
AXLE, WHEEL
$90.13¢45 063
1
#27
90185-20002-00
NUT, SELF-LOCKING
$24.84¢12 420
1
#28
90201-20020-00
WASHER, PLATE
$8.41¢4 203
1
#29
9Y58F-39113-00
CHAIN (DID520VM2-114LL)
$275.13¢137 563
1
#30
94682-42021-00
JOINT, CHAIN (DID520VM2Y ZJ)
$18.64¢9 321
1
