ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

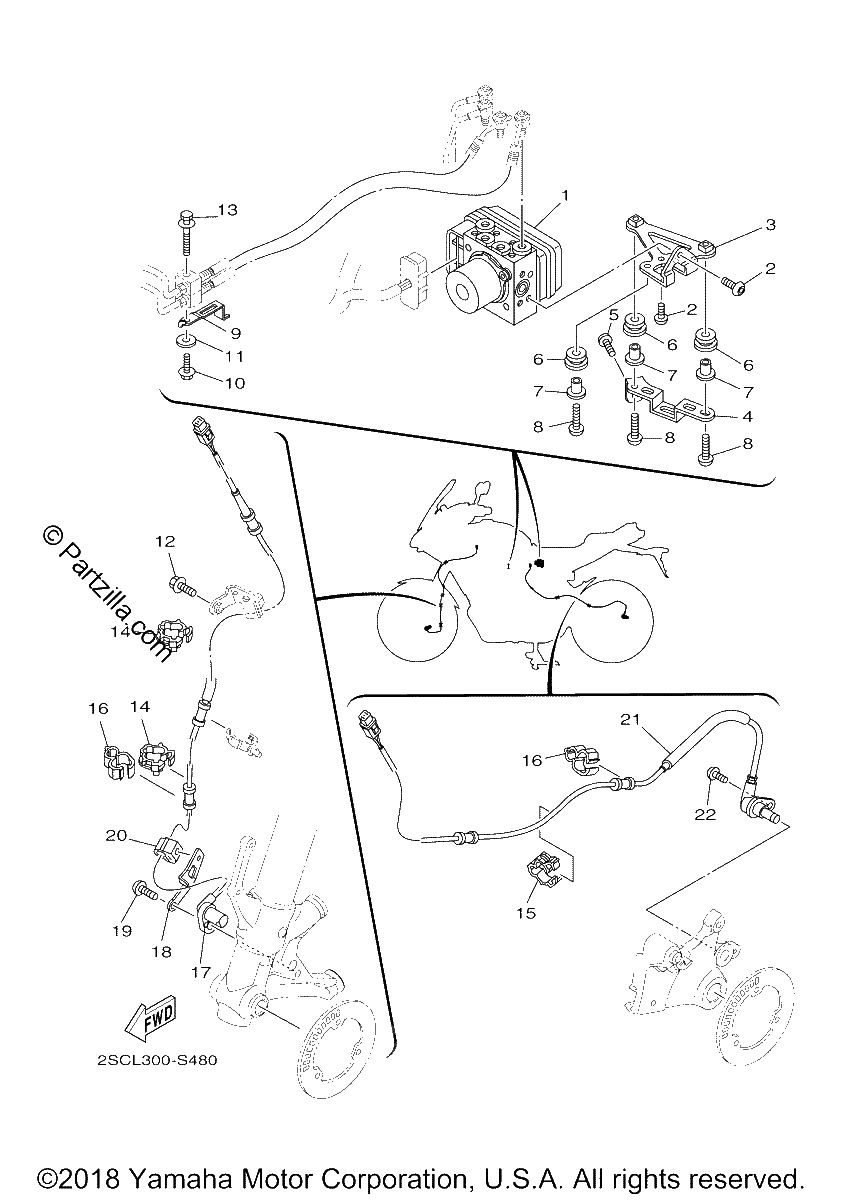

Diagrama de ELECTRICAL 3

Repuestos

#1
B50-85930-08-00
HYDRAULIC UNIT ASSY (replaces B50-85930-09-00)
$1281.01¢640 504
1
#2
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#3
2DR-85991-00-00
BRACKET, UNIT
$12.42¢6 210
1
#4
2DR-85542-00-00
BRACKET
$10.68¢5 342
1
#5
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#6
90480-13567-00
GROMMET
$4.25¢2 128
1
#7
90387-06160-00
COLLAR
$4.15¢2 076
1
#8
92012-06020-00
BOLT, BUTTON HEAD
$6.88¢3 439
1
#9
BS2-85132-00-00
BRACKET, REFLECTOR 1
$5.99¢2 996
1
#10
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#11
90201-087P8-00
WASHER, plate
$2.91¢1 455
1
#12
95817-06016-00
BOLT, FLANGE
$1.64¢822
1
#13
90119-06M55-00
BOLT, WITH WASHER
$4.29¢2 145
1
#14
90464-12013-00
Clamp
$7.21¢3 605
1
#15
90464-14003-00
CLAMP
$36.77¢18 383
1
#16
90464-10233-00
CLAMP
$6.96¢3 479
1
#17
BS2-85970-00-00
WHEEL SENSOR ASSY, FRONT
$113.10¢56 551
1
#18
BS2-85542-00-00
Bracket
$14.03¢7 015
1
#19
92017-06016-00
BLT,BTTN HD (replaces 90111-06007-00)
$6.75¢3 375
1
#20
90464-05188-00
CLAMP
$3.36¢1 679
1
#21
2DR-85980-01-00
WHEEL SENSOR ASSY, REAR
$124.92¢62 462
1
#22
92014-06014-00
BOLT, BUTTON HEAD
$2.90¢1 449
1
