GEAR CHANGE MECHANISM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

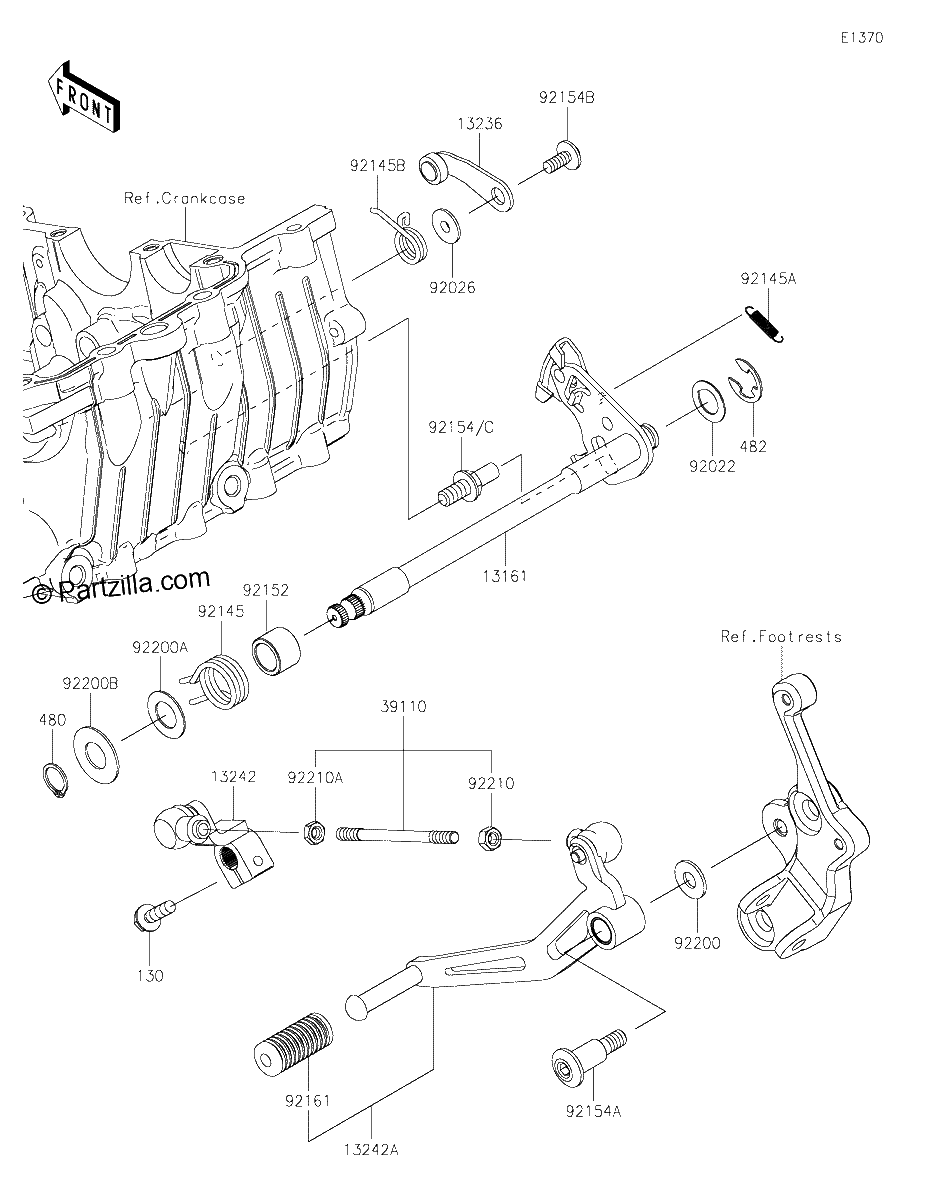

Diagrama de GEAR CHANGE MECHANISM

Repuestos

#130
130CB0620
BOLT-FLANGED,6X20
$7.61¢3 806
1
#480
480J1400
CIRCLIP-TYPE-C,14MM
$4.96¢2 481
1
#482
482J0200
CIRCLIP-TYPE-E,12MM
$4.13¢2 063
1
#13161
13161-0610
LEVER-COMP-CHANGE SHAFT
$110.40¢55 200
1
#13236
13236-0794
LEVER-COMP,POSITION
$11.71¢5 856
1
#13242A
13242-0146
LEVER-ASSY-CHANGE,PEDAL
$60.39¢30 194
1
#13242
13242-0145
LEVER-ASSY-CHANGE
$39.26¢19 631
1
#39110
39110-0045
ROD-ASSY-TIE
$14.74¢7 369
1
#92022
92022-1628
WASHER,CHANGE SHAFT
$6.69¢3 344
1
#92026
92026-1217
SPACER
$5.45¢2 725
1
#92145B
92145-1814
SPRING,DRUM POSITION
$1.04¢519
1
#92145A
92145-1813
SPRING,PAWL RETURN
$1.04¢519
1
#92145
92145-1783
SPRING,RETURN
$2.56¢1 281
1
#92152
92152-2370
COLLAR,14.2X19.9X14.3
$4.79¢2 394
1
#92154
92154-4400
BOLT,RETURN SPRING
$3.17¢1 588
1
#92154B
92154-2731
BOLT,SOCKET,6X14
$2.13¢1 063
1
#92154A
92154-2730
BOLT
$8.92¢4 462
1
#92154
92154-1838
BOLT,RETURN SPRING
$10.31¢5 156
1
#92161
92161-1466
DAMPER,CHANGE PEDAL
$3.01¢1 506
1
#92200B
92200-2295
WASHER,14.3X30X1.2
$2.48¢1 238
1
#92200A
92200-1933
WASHER,14.2X25X1
$0.81¢406
1
#92200
92200-0490
WASHER,8.5X20X1.6
$2.97¢1 487
1
#92210
92210-1596
NUT,6MM
$2.26¢1 131
1
#92210A
92210-1597
NUT,LEFT HANDED,6MM
$2.86¢1 431
1
