CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

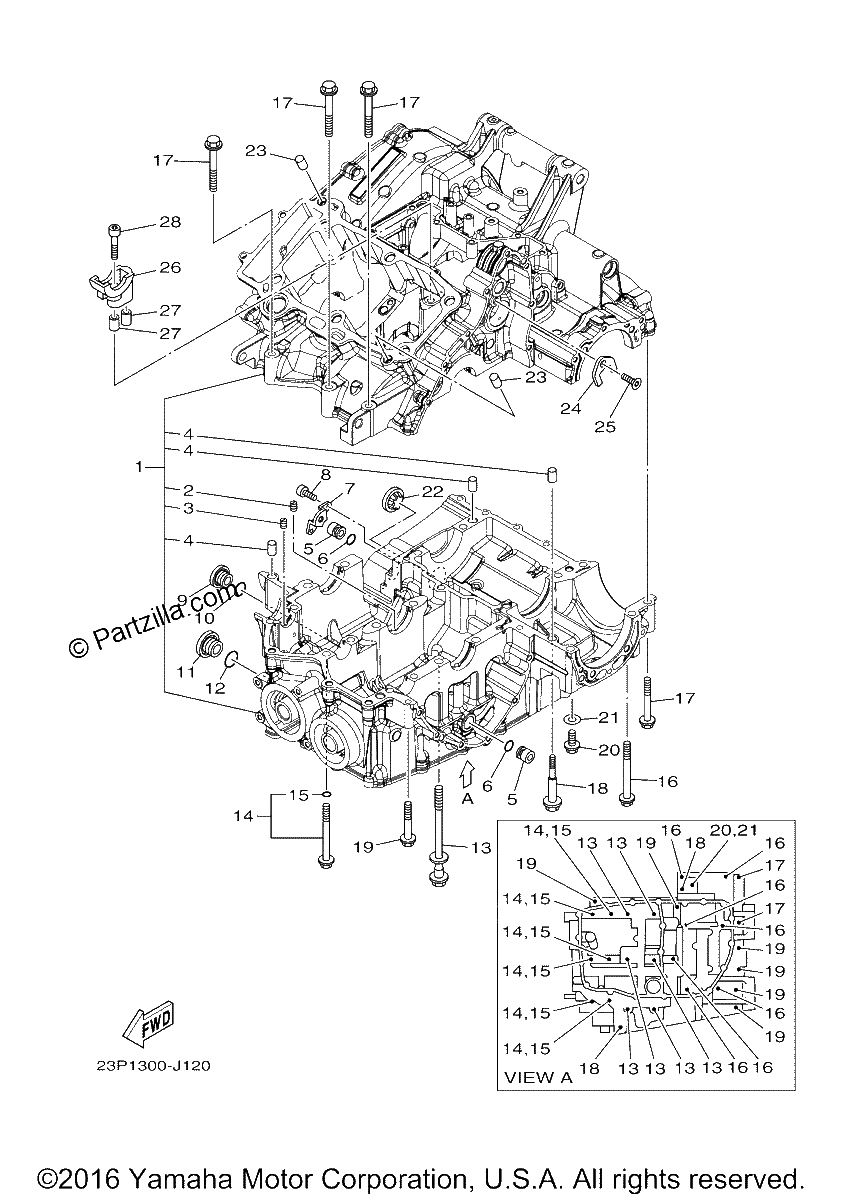

Diagrama de CRANKCASE

Repuestos

#1
23P-15100-09-00
CRANKCASE ASSY
$2533.74¢1 266 869
1
#2
4KM-13572-00-00
NOZZLE (replaces 4H7-15138-00-00)
$6.99¢3 494
1
#3
2UJ-15138-00-00
NOZZLE 1
$4.81¢2 406
1
#4
99530-10114-00
PIN,DOWEL
$2.71¢1 356
1
#5
90338-16262-00
PLUG
$13.77¢6 887
1
#6
93210-12790-00
O-RING
$6.85¢3 425
1
#7
23P-15128-00-00
HOLDER
$4.45¢2 225
1
#8
91317-06016-00
BOLT
$1.46¢731
1
#9
36Y-15189-00-00
PLUG
$14.34¢7 169
1
#10
93210-16325-00
O-RING
$6.99¢3 494
1
#11
4H7-15189-00-00
PLUG
$30.76¢15 381
1
#12
93210-207A0-00
O-Ring
$1.15¢575
1
#13
90119-10051-00
BOLT, WITH WASHER
$19.44¢9 719
1
#14
23P-15156-00-00
BOLT, CRANKCASE JOURNAL
$11.34¢5 669
1
#15
93210-07540-00
O-RING
$6.88¢3 438
1
#16
95817-08080-00
BOLT, FLANGE
$4.00¢2 000
1
#17
95817-08060-00
BOLT, FLANGE
$3.89¢1 944
1
#18
90109-06100-00
BOLT
$9.06¢4 531
1
#19
95812-06050-00
BOLT, FLANGE
$1.80¢900
1
#20
95022-08016-00
Bolt, Flange
$0.85¢425
1
#21
90430-08119-00
GASKET
$6.91¢3 456
1
#22
2H7-15361-00-00
GAUGE, LEVEL
$102.81¢51 406
1
#23
99530-10114-00
PIN,DOWEL
$2.71¢1 356
1
#24
3LD-15191-00-00
PLATE
$6.55¢3 275
1
#25
90151-06023-00
SCREW, COUNTERSUNK
$7.77¢3 887
1
#26
23P-15118-00-00
HOLDER
$46.02¢23 013
1
#27
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#28
91312-06035-00
BOLT, HEXAGON SOCKET (replaces 90110-06208-00)
$2.82¢1 412
1
