ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

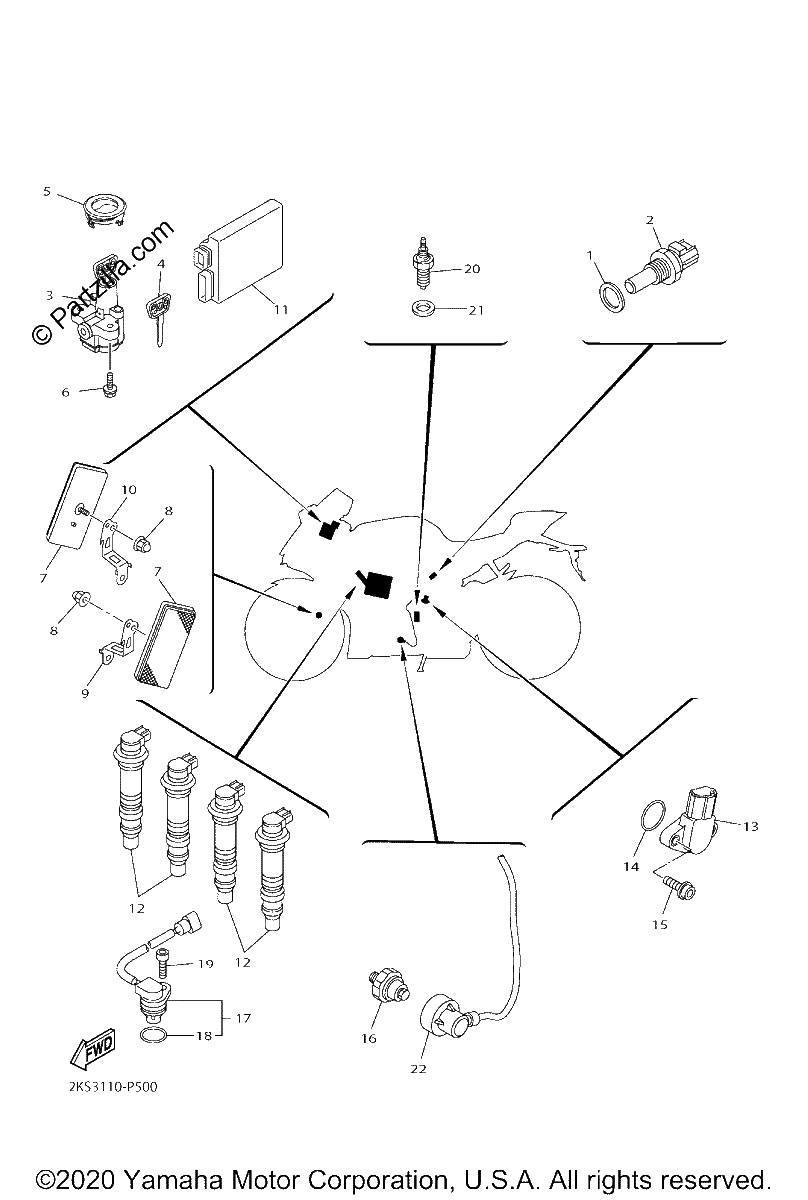

Diagrama de ELECTRICAL 1

Repuestos

#1
90430-10004-00
GASKET
$7.08¢3 538
1
#2
54P-H3591-00-00
THERMO UNIT (replaces 4P9-83591-00-00)
$34.40¢17 200
1
#3
2CR-82501-10-00
MAIN SWITCH STEERING LOCK
$177.79¢88 894
1
#4
4BH-82511-09-00
BLANK KEY | AP
$29.11¢14 556
1
#5
36P-82552-00-00
CAP, SWITCH
$14.98¢7 488
1
#6
90109-08196-00
BOLT
$7.35¢3 675
1
#7
11H-85110-01-00
REFLECTOR ASSY
$24.93¢12 463
1
#8
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
#9
2CR-85112-00-00
BRACKET, REFLECTOR 1
$25.07¢12 538
1
#10
2CR-85122-00-00
BRACKET, REFLECTOR 2
$29.34¢14 669
1
#11
BX4-8591A-10-00
ENGINE CONTROL UNIT ASSY
$2209.99¢1 104 994
1
#12
2CR-82310-00-00
IGNITION COIL ASSY
$141.85¢70 925
1
#13
2CR-85899-00-00
SENSOR, GEAR POSITION
$112.16¢56 081
1
#14
93210-17008-00
O-RING
$2.16¢1 081
1
#15
90110-05038-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#16
1WS-82504-00-00
OIL PRESSURE SWITC
$72.81¢36 406
1
#17
5VY-85896-02-00
SENSOR, CAM POSITION (replaces 5VY-85896-01-00)
$151.31¢75 656
1
#18
4D9-81168-00-00
O-RING
$5.15¢2 575
1
#19
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
1
#20
3GB-82540-01-00
NEUTRAL SWITCH ASSY
$62.85¢31 425
1
#21
90430-10148-00
Gasket
$5.66¢2 831
1
#22
B67-82509-00-00
WIRE, SUB LEAD
$15.26¢7 631
1
