EXHAUST

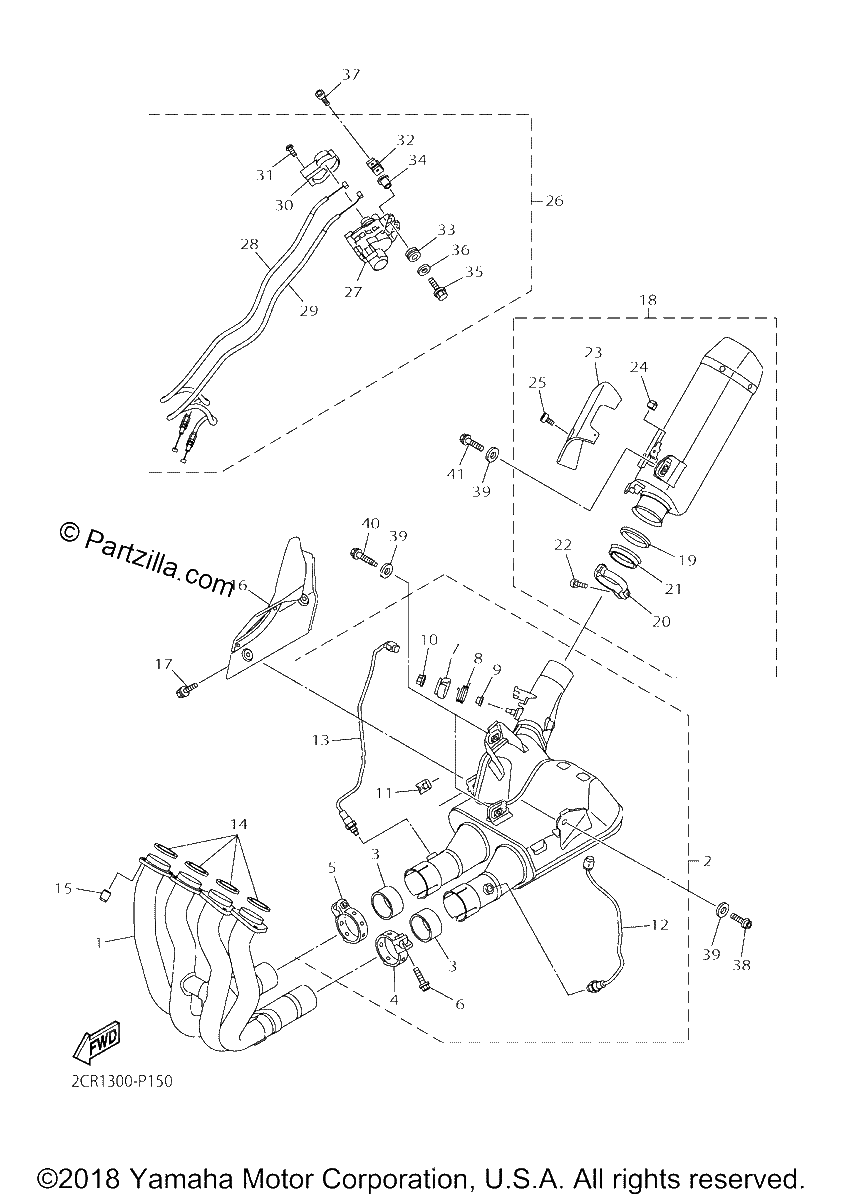

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
EXHAUST PIPE COMP.
$1607.69¢803 844
#2
CHAMBER ASSY
$2519.64¢1 259 819
#3
GASKET, MUFFLER
$42.62¢21 310
#4
BAND, MUFFLER
$34.79¢17 394
#5
BAND, MUFFLER
$32.18¢16 089
#6
BOLT,FLANGE (3EF)
$6.75¢3 375
#7
PULLEY
$27.74¢13 869
#8
SPRING
$4.57¢2 283
#9
SEAT, SPRING
$6.57¢3 283
#10
NUT
$3.96¢1 978
#11
NUT, SPRING
$9.13¢4 566
#12
SENSOR, OXYGEN
$216.84¢108 422
#13
SENSOR, OXYGEN
$255.13¢127 564
#14
GASKET, EXHAUST PIPE
$10.43¢5 215
#15
NUT,SPEC'L SHAPE
$6.27¢3 134
#16
PROTECTOR ASSY
$321.05¢160 523
#17
BOLT, HEX. SOCKET BUTTON
$1.31¢655
#18
SILENCER ASSY
$1432.89¢716 444
#19
GASKET, EXHAUST PIPE
$15.65¢7 826
#20
BAND, MUFFLER
$50.37¢25 185
#21
RING, STOPPER
$18.14¢9 068
#22
BOLT, HEXAGON SOCKET HEAD
$3.10¢1 553
#23
PROTECTOR, MUFFLER 1
$188.19¢94 093
#24
DAMPER, MUFFLER
$4.05¢2 024
#25
BOLT, HEX. SOCKET BUTTON
$1.31¢655
#26
SERVO MOTOR COMP
$368.30¢184 150
#27
SERVO MOTOR ASSY
$281.82¢140 909
#28
CABLE, PULLEY 1
$87.78¢43 890
#29
CABLE, PULLEY 2
$79.00¢39 503
#30
COVER, SERVO MOTOR
$11.12¢5 560
#31
SCREW, TAPPING
$4.20¢2 099
#32
BRACKET 7
$30.64¢15 318
#33
Grommet
$3.68¢1 840
#34
Collar
$6.75¢3 375
#35
BOLT, FLANGE
$3.65¢1 823
#36
WASHER,PLATE
$3.29¢1 644
#37
BOLT, HEXAGON SOCKET HEAD
$6.92¢3 461
#38
BOLT, HEXAGON SOCKET HEAD
$7.37¢3 686
#39
WASHER, PLATE
$3.40¢1 702
#40
BOLT
$3.39¢1 696
#41
BOLT, HEXAGON SOCKET HEAD
$7.67¢3 835
