REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

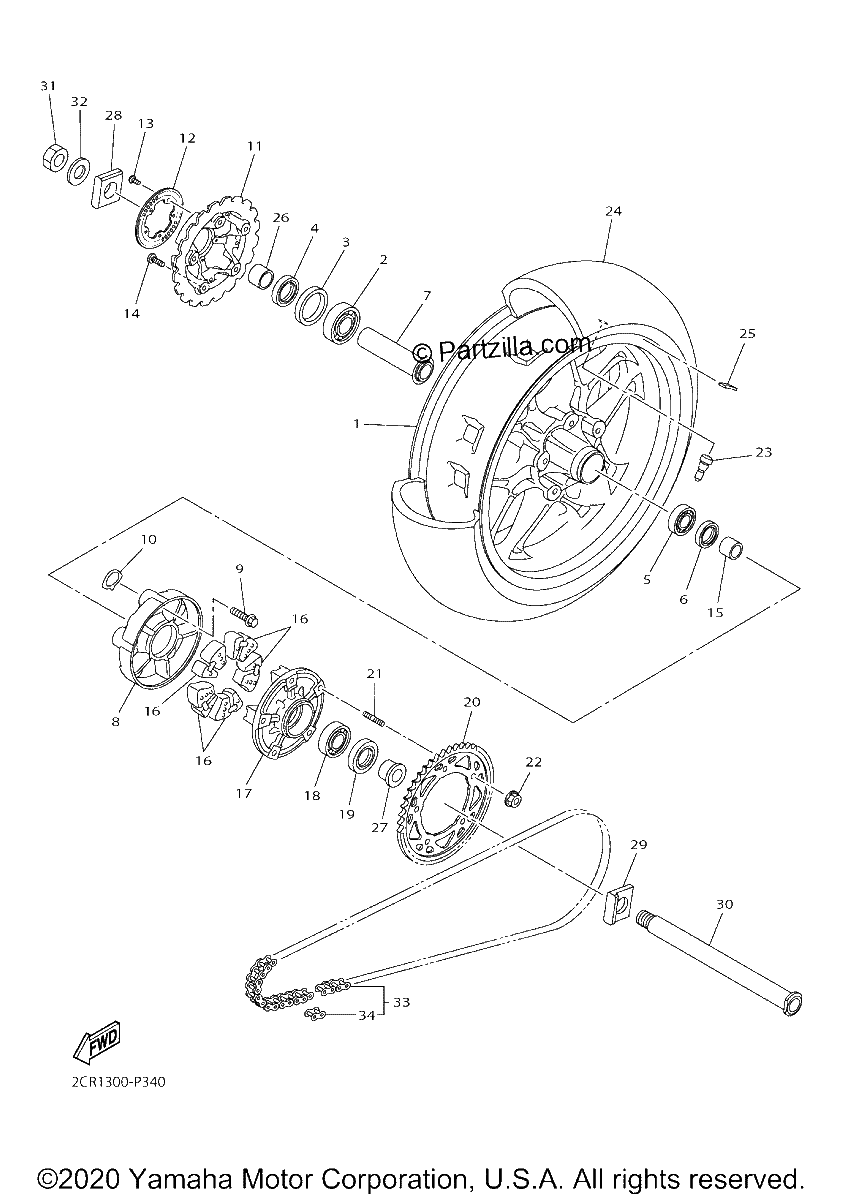

Diagrama de REAR WHEEL

Repuestos

#1
2CR-25338-00-98
CAST WHEEL, REAR
$2083.74¢1 041 869
1
#1
2CR-25338-00-P0
CAST WHEEL, REAR | DPBM15
$2284.99¢1 142 494
1
#2
93306-27802-00
BEARING
$76.59¢38 294
1
#3
2CR-2538E-00-00
NUT, ADJUSTING
$60.51¢30 256
1
#4
93106-40001-00
OIL SEAL
$12.07¢6 038
1
#5
93306-07806-00
BEARING
$68.74¢34 369
1
#6
93106-35042-00
OIL SEAL
$15.58¢7 788
1
#7
2CR-253W0-00-00
SPACER ASSY
$50.08¢25 038
1
#8
2CR-2531F-00-00
HUB 2
$267.33¢133 663
1
#9
90105-10450-00
BOLT, FLANGE
$3.26¢1 631
1
#10
2CR-25319-00-00
SEAL, HUB DUST
$3.33¢1 663
1
#11
2CR-2581A-00-00
PLATE, DISC
$245.99¢122 994
1
#12
1SD-2517G-00-00
ROTOR, SENSOR
$142.80¢71 400
1
#13
90149-05030-00
SCREW
$2.54¢1 269
1
#14
90109-085G6-00
BOLT
$2.26¢1 131
1
#15
90387-28022-00
COLLAR
$24.33¢12 163
1
#16
2CR-25364-00-00
DAMPER
$13.96¢6 981
1
#17
2CR-25366-00-00
CLUTCH, HUB
$208.54¢104 269
1
#18
93306-20531-00
BEARING
$52.95¢26 475
1
#19
93106-40013-00
OIL SEAL
$14.36¢7 181
1
#20
2CR-25441-00-00
SPROCKET, DRIVEN (41T)
$102.65¢51 325
1
#21
90116-10048-00
BOLT, STUD
$27.17¢13 587
1
#22
90185-10011-00
NUT, SELF-LOCKING
$4.68¢2 338
1
#23
93900-00030-00
VALVE, RIM (TR412) | TAIHEIYO
$17.22¢8 612
1
#24
94119-17074-00
TIRE (190/55 ZR17 M/C 75W) | BRIDGESTONE
$536.36¢268 181
1
#25
2CR-25398-00-00
BALANCER, WHEEL (5G) | UN
$5.47¢2 738
1
#26
90387-28023-00
COLLAR
$26.43¢13 213
1
#27
90387-28024-00
COLLAR
$31.43¢15 713
1
#28
5VY-25388-00-00
PULLER, CHAIN 1
$64.59¢32 294
1
#29
5VY-25389-01-00
PULLER, CHAIN 2
$41.64¢20 819
1
#30
2CR-25381-00-00
AXLE, WHEEL
$74.70¢37 350
1
#31
90185-24007-00
NUT, SELF-LOCKING
$42.75¢21 375
1
#32
90201-25020-00
WASHER, PLATE
$7.63¢3 813
1
#33
94582-40114-00
CHAIN (DID 525VZ-114LL)
$186.22¢93 113
1
#34
94682-40031-00
JOINT, CHAIN (DID525VZ ZJ)
$9.31¢4 656
1
