INTAKE

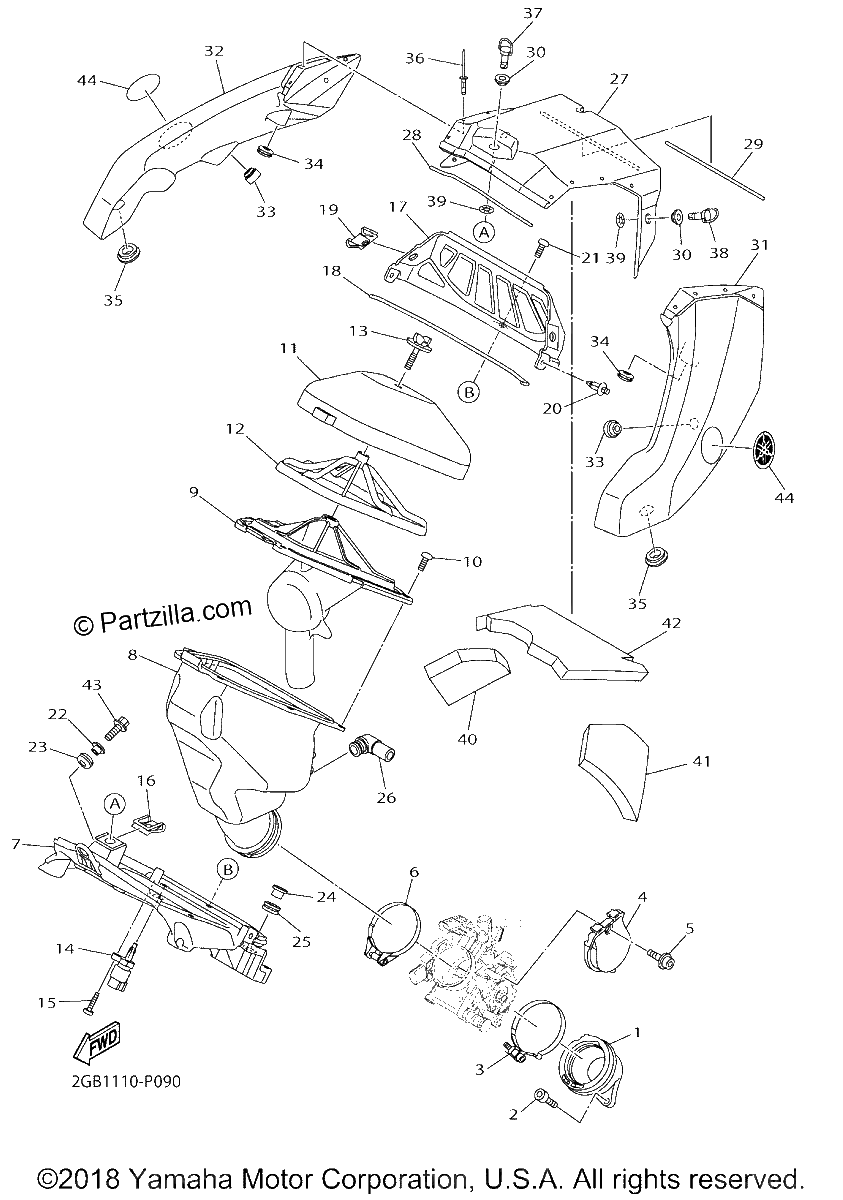

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
JOINT, CARBURETOR 3
$68.76¢34 379
#2
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
#3
HOSE CLAMP ASSY
$16.09¢8 044
#4
COVER 1
$20.00¢9 999
#5
BOLT, HEXAGON SOCKET HEAD
$7.11¢3 553
#6
HOSE CLAMP ASSY
$18.42¢9 212
#7
CASE, AIR CLEANER 1
$66.11¢33 057
#8
JOINT, AIR CLEANER 1
$118.52¢59 259
#9
HOLDER, GUIDE
$25.36¢12 679
#10
SCREW, PAN HEAD
$8.04¢4 019
#11
ELEMENT, AIR CLEANER
$40.01¢20 004
#12
GUIDE
$11.33¢5 664
#13
BOLT
$16.07¢8 033
#14
SENSOR, AIR TEMPERATURE
$56.14¢28 071
#15
SCREW, TAPPING
$0.30¢150
#16
PLATE, SPRING
$6.80¢3 398
#17
CAP, CLEANER CASE 2
$20.00¢9 999
#18
SEAL
$4.00¢2 001
#19
PLATE, SPRING
$6.80¢3 398
#20
RIVET
$8.10¢4 048
#21
SCREW, PAN HEAD
$8.04¢4 019
#22
COLLAR
$6.76¢3 381
#23
GROMMET
$2.14¢1 070
#24
SPACER
$10.21¢5 106
#25
GROMMET
$2.16¢1 081
#26
PIPE
$8.57¢4 284
#27
CAP, cleaner case 1
$30.91¢15 456
#28
SEAL
$7.04¢3 519
#29
SEAL
$7.28¢3 640
#30
COLLAR
$6.55¢3 278
#31
DUCT
$48.32¢24 162
#32
DUCT
$48.09¢24 047
#33
GROMMET
$12.35¢6 176
#34
GROMMET
$2.14¢1 070
#35
Grommet
$4.31¢2 156
#36
RIVET, BLIND
$1.15¢575
#37
HEAD (SPECIAL FASTE
$39.07¢19 533
#38
HEAD
$34.79¢17 394
#39
WASHER, SPECIAL 1
$7.04¢3 519
#40
DAMPER 1
$5.54¢2 772
#41
DAMPER 2
$5.54¢2 772
#42
DAMPER 3
$15.87¢7 935
#43
BOLT, FLANGE
$1.98¢989
#44
TUNING FORK MARK
$7.37¢3 686
