CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

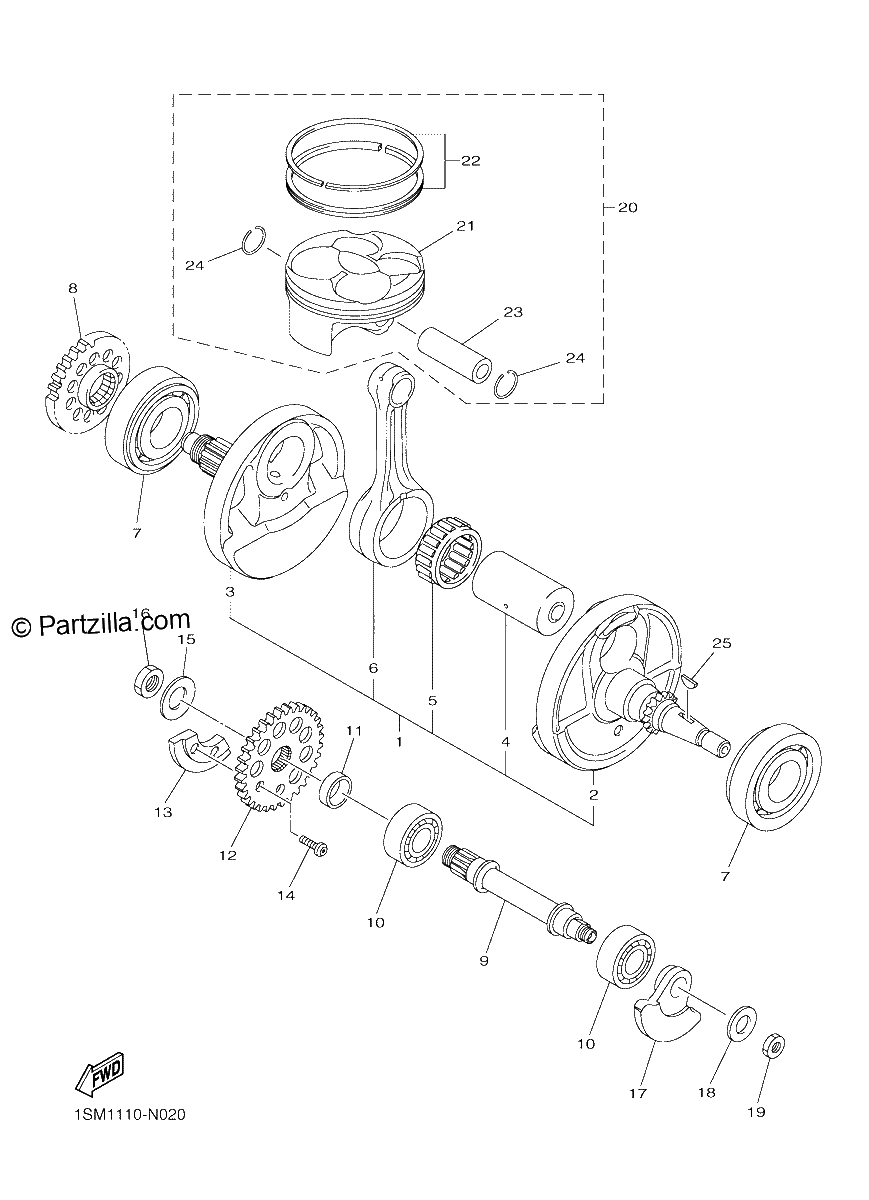

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
2GB-11400-01-00
Crankshaft Assy
$677.16¢338 581
1
#2
2GB-11412-00-00
CRANK 1
$235.52¢117 762
1
#3
1SM-11422-00-00
CRANK 2
$262.27¢131 138
1
#4
1SM-11681-00-00
PIN, CRANK 1
$69.03¢34 513
1
#5
93310-63097-00
BEARING (replaces 93310-63096-00)
$109.60¢54 800
1
#6
2GB-11651-01-00
ROD, CONNECTING
$134.81¢67 406
1
#7
93306-20648-00
BEARING
$94.56¢47 281
1
#8
1SM-11536-00-00
GEAR, DRIVE
$127.24¢63 619
1
#9
1SM-11455-10-00
SHAFT 1
$199.49¢99 744
1
#10
93306-20351-00
BEARING
$40.65¢20 325
1
#11
90387-175R2-00
COLLAR (1YW)
$12.32¢6 163
1
#12
1SM-11531-00-00
GEAR, BALANCE WEIGHT
$132.61¢66 306
1
#13
1SM-11454-00-00
WEIGHT 1
$52.93¢26 463
1
#14
90149-06083-00
SCREW
$7.65¢3 825
1
#15
90208-14033-00
WASHER, CONICAL SPRING
$3.61¢1 806
1
#16
90170-14171-00
NUT
$8.64¢4 319
1
#17
1SM-11464-00-00
WEIGHT 2
$79.85¢39 925
1
#18
90208-10001-00
WASHER, CONICAL SPRING
$1.70¢850
1
#19
90170-10012-00
Nut
$5.36¢2 681
1
#20
1SM-116A0-01-00
Piston Assy
$174.59¢87 294
1
#21
1SM-11631-01-00
PISTON (Std)
$168.54¢84 269
1
#22
1SM-11603-00-00
Piston Ring Set (STD)
$42.55¢21 275
1
#23
1SM-11633-00-00
Pin, Piston
$29.15¢14 575
1
#24
93450-17129-00
CIRCLIP,INNER
$3.46¢1 731
1
#25
90280-03006-00
KEY, WOODRUFF
$8.09¢4 044
1
