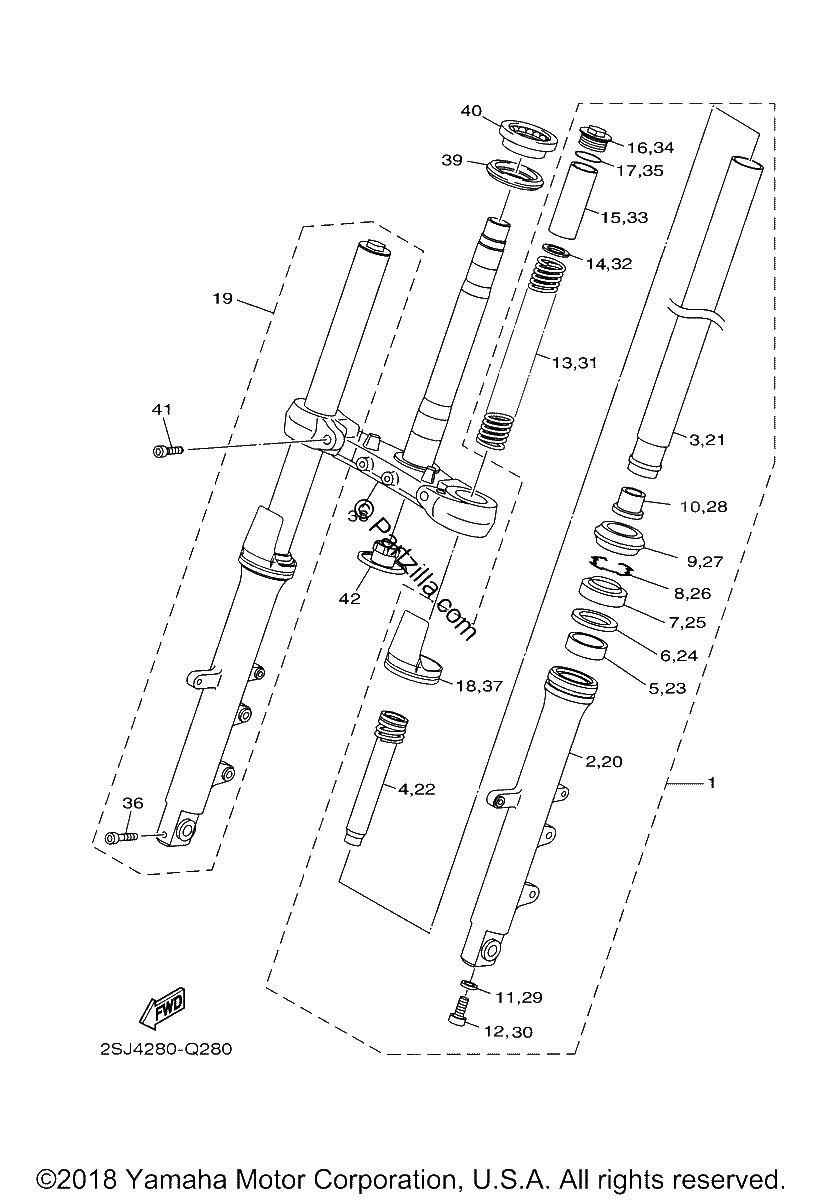

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$489.19¢244 593
#2
TUBE, OUTER (L.H)
$242.34¢121 170
#3
INNER TUBE COMP. 1
$245.75¢122 877
#4
CYLINDER COMP., FRONT FORK
$72.00¢36 001
#5
METAL,SLIDE 1
$32.08¢16 042
#6
WASHER, OIL SEAL
$24.18¢12 092
#7
OIL SEAL
$26.59¢13 294
#8
RING, SNAP
$7.24¢3 622
#9
SEAL, DUST
$21.36¢10 678
#10
SPINDLE, TAPER
$36.17¢18 084
#11
GASKET | (KYB)
$15.72¢7 860
#12
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#13
SPRING, FRONT FORK
$45.55¢22 776
#14
WASHER,SPRING UPR
$3.06¢1 529
#15
SPACER
$11.57¢5 784
#16
BOLT, cap
$46.98¢23 489
#17
O-Ring
$7.04¢3 519
#18
COVER
$11.40¢5 698
#19
FRONT FORK ASSY (R.H)
$489.19¢244 593
#20
TUBE, OUTER 2
$251.88¢125 942
#21
INNER TUBE COMP. 1
$245.75¢122 877
#22
CYLINDER COMP., FRONT FORK
$72.00¢36 001
#23
METAL,SLIDE 1
$32.08¢16 042
#24
WASHER, OIL SEAL
$24.18¢12 092
#25
OIL SEAL
$26.59¢13 294
#26
RING, SNAP
$7.24¢3 622
#27
SEAL, DUST
$21.36¢10 678
#28
SPINDLE, TAPER
$36.17¢18 084
#29
GASKET | (KYB)
$15.72¢7 860
#30
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#31
SPRING, FRONT FORK
$45.55¢22 776
#32
WASHER,SPRING UPR
$3.06¢1 529
#33
SPACER
$11.57¢5 784
#34
BOLT, cap
$46.98¢23 489
#35
O-Ring
$7.04¢3 519
#36
BOLT (3JP)
$5.75¢2 875
#37
COVER
$11.40¢5 698
#38
UNDER BRACKET COMP.
$302.01¢151 007
#39
SEAL, STEERING
$23.48¢11 742
#40
BEARING
$60.89¢30 446
#41
BOLT, HEXAGON SOCKET HEAD
$7.44¢3 720
#42
COVER, UNDER 1
$13.48¢6 739
#42
FORK SEAL KIT
$36.54¢18 268
