STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

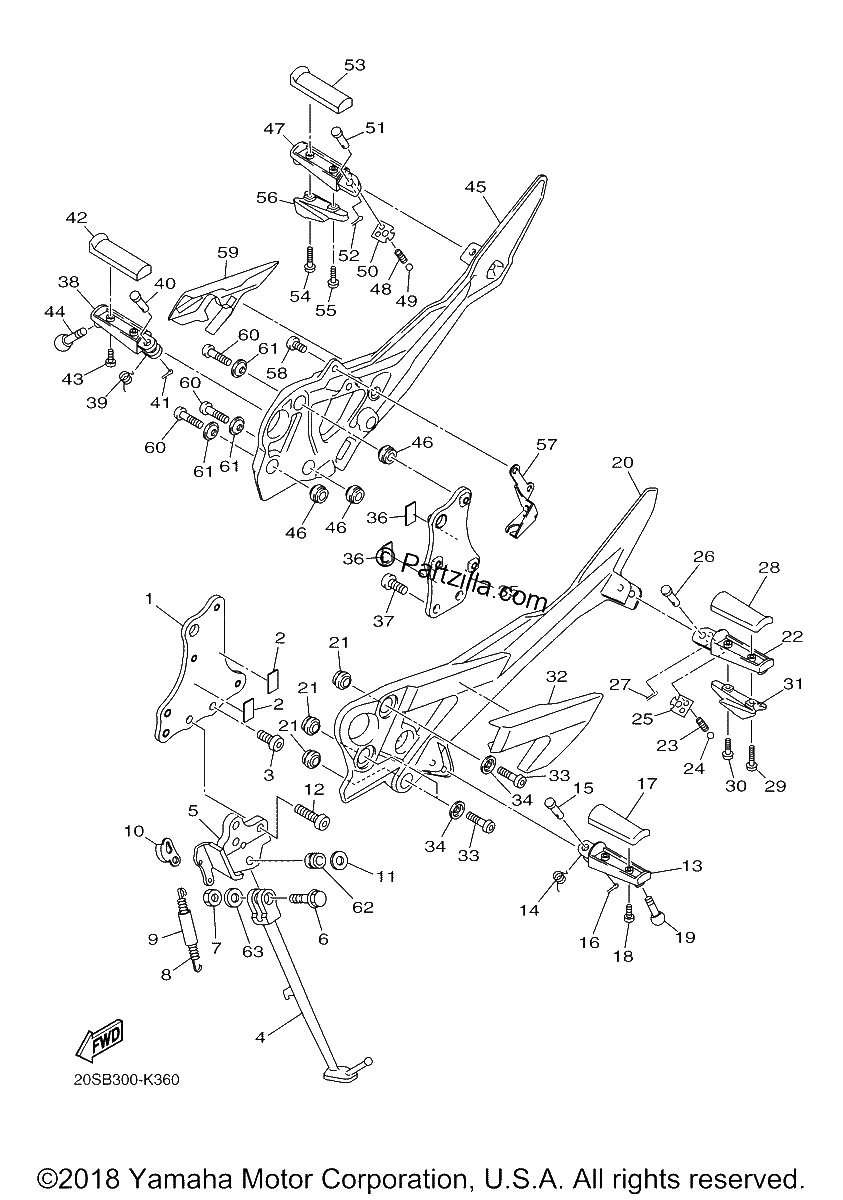

Diagrama de STAND FOOTREST

Repuestos

#1
20S-274A3-00-00
BRACKET, ADAPTER 1
$71.46¢35 731
1
#2
4RR-21485-00-00
DAMPER, RUBBER 1
$7.23¢3 617
1
#3
90111-10044-00
BOLT,HEX. SOCKET BUT
$4.05¢2 024
1
#4
20S-27311-00-00
STAND, SIDE
$76.85¢38 427
1
#5
20S-27321-00-00
BRACKET, SIDE STAND
$84.56¢42 280
1
#6
90105-10262-00
BOLT, FLANGE
$7.47¢3 738
1
#7
90185-10023-00
NUT, SELF-LOCKING
$6.16¢3 082
1
#8
90506-23018-00
Spring, Tension
$21.78¢10 891
1
#9
5VX-27351-00-00
GUIDE, SIDE STAND
$7.28¢3 640
1
#10
5VX-27315-00-00
LINK, SIDE STAND
$6.51¢3 254
1
#11
90201-10051-00
WASHER, PLATE
$8.22¢4 111
1
#12
90111-10046-00
BOLT,HEX. SOCKET BUT
$5.96¢2 978
1
#13
4BH-27451-01-00
FOOTREST
$55.67¢27 836
1
#14
90508-20572-00
SPRING, TORSION
$7.30¢3 651
1
#15
91701-08042-00
PIN
$3.39¢1 696
1
#16
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#17
4BP-27413-00-00
COVER, FOOTREST
$29.52¢14 760
1
#18
98580-05014-00
SCREW, PAN HEAD
$8.04¢4 019
1
#19
90109-08204-00
BOLT
$6.07¢3 036
1
#20
20S-27442-00-00
BRACKET 2
$411.56¢205 781
1
#21
5VX-27424-00-00
DAMPER, FOOTREST 2
$13.13¢6 567
1
#22
5RT-27431-00-00
FOOTREST, REAR 1
$32.87¢16 434
1
#23
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#24
93501-04011-00
BALL
$6.87¢3 433
1
#25
5VX-27437-00-00
WASHER, SPECIAL
$7.35¢3 674
1
#26
91701-08042-00
PIN
$3.39¢1 696
1
#27
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#28
4BP-27413-00-00
COVER, FOOTREST
$29.52¢14 760
1
#29
97607-05230-00
SCREW, WITH WASHER
$7.30¢3 651
1
#30
97607-05220-00
SCREW, WITH WASHER
$2.64¢1 322
1
#31
5LV-2741E-01-00
ARM 2
$57.91¢28 957
1
#32
20S-27486-00-00
COVER 1
$18.33¢9 166
1
#33
90110-08220-00
BOLT, HEXAGON SOCKET HEAD
$6.43¢3 214
1
#34
90209-08295-00
WASHER
$7.30¢3 651
1
#35
20S-274A4-00-00
BRACKET,ADAPTER 2
$58.78¢29 388
1
#36
4RR-21485-00-00
DAMPER, RUBBER 1
$7.23¢3 617
1
#37
90111-10036-00
BOLT, HEX. SOCKET BUTTON
$3.96¢1 978
1
#38
4BH-27461-01-00
FOOTREST
$55.48¢27 738
1
#39
90508-20572-00
SPRING, TORSION
$7.30¢3 651
1
#40
91701-08042-00
PIN
$3.39¢1 696
1
#41
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#42
4BP-27413-00-00
COVER, FOOTREST
$29.52¢14 760
1
#43
98580-05014-00
SCREW, PAN HEAD
$8.04¢4 019
1
#44
90109-08204-00
BOLT
$6.07¢3 036
1
#45
20S-27443-00-00
BRACKET 3
$443.23¢221 617
1
#46
5VX-27424-00-00
DAMPER, FOOTREST 2
$13.13¢6 567
1
#47
5RT-27441-00-00
FOOTREST, REAR 2
$33.18¢16 589
1
#48
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#49
93501-04011-00
BALL
$6.87¢3 433
1
#50
5VX-27437-00-00
WASHER, SPECIAL
$7.35¢3 674
1
#51
91701-08042-00
PIN
$3.39¢1 696
1
#52
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#53
4BP-27413-00-00
COVER, FOOTREST
$29.52¢14 760
1
#54
97607-05230-00
SCREW, WITH WASHER
$7.30¢3 651
1
#55
97607-05220-00
SCREW, WITH WASHER
$2.64¢1 322
1
#56
5LV-2741E-01-00
ARM 2
$57.91¢28 957
1
#57
20S-2144G-00-00
STAY, STOP SWITCH
$14.88¢7 440
1
#58
92014-08020-00
BOLT, BUTTON HEAD
$7.30¢3 651
1
#59
20S-27487-00-00
COVER 2
$16.87¢8 435
1
#60
90110-08220-00
BOLT, HEXAGON SOCKET HEAD
$6.43¢3 214
1
#61
90209-08295-00
WASHER
$7.30¢3 651
1
#62
90387-1003G-00
COLLAR
$20.17¢10 085
1
#63
90201-10035-00
WASHER, plate
$3.91¢1 955
1
