STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

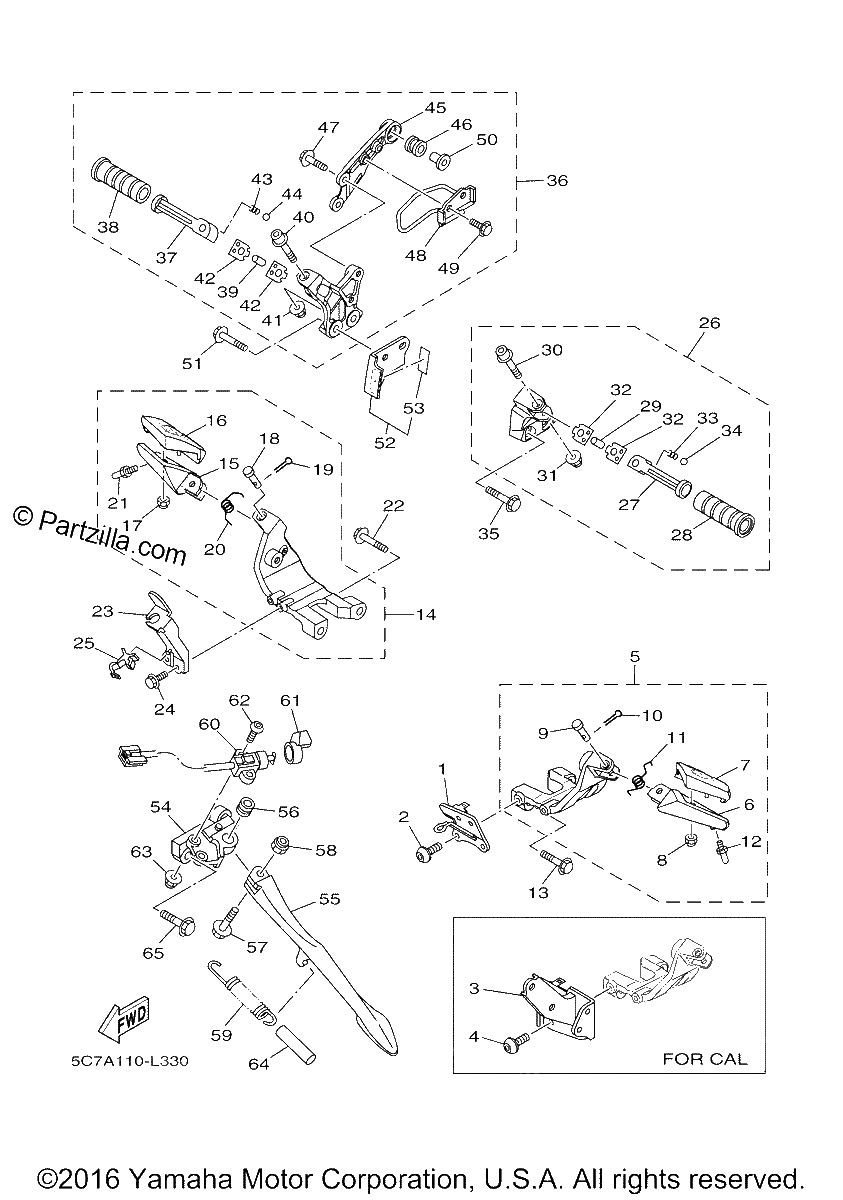

Diagrama de STAND FOOTREST

Repuestos

#1
5C7-2134L-00-00
BRACKET, HORN 2 | FOR U49
$47.60¢23 800
1
#2
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#3
5C7-2742L-00-00
BRACKET 5 | FOR CAL
$347.73¢173 863
1
#4
90149-06302-00
SCREW
$5.11¢2 556
1
#5
5C7-27410-01-00
FRONT FOOTREST ASSY (LEFT)
$557.13¢278 563
1
#6
5C7-27451-01-00
FOOTREST
$102.81¢51 406
1
#7
5C7-27413-00-00
COVER, FOOTREST
$42.55¢21 275
1
#8
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
1
#9
91701-08035-00
PIN
$6.99¢3 494
1
#10
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#11
90508-18080-00
SPRING, TORSION
$7.09¢3 544
1
#12
5C7-27435-09-00
BOLT
$20.47¢10 237
1
#13
95024-10045-00
BOLT, FLANGE
$8.09¢4 044
1
#14
5C7-27420-01-00
FRONT FOOTREST ASSY (RIGHT)
$567.49¢283 744
1
#15
5C7-27461-01-00
FOOTREST
$145.04¢72 519
1
#16
5C7-27423-00-00
COVER, FOOTREST
$42.55¢21 275
1
#17
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
1
#18
91701-08035-00
PIN
$6.99¢3 494
1
#19
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#20
90508-18087-00
SPRING, TORSION
$6.94¢3 469
1
#21
5C7-27435-09-00
BOLT
$20.47¢10 237
1
#22
95024-10045-00
BOLT, FLANGE
$8.09¢4 044
1
#23
5C7-2741L-00-00
BRACKET 4
$59.55¢29 775
1
#24
95027-06012-00
BOLT, FLANGE
$3.89¢1 944
1
#25
90464-08189-00
CLAMP
$2.71¢1 356
1
#26
5C7-27430-00-00
REAR FOOTREST ASSY 1
$247.78¢123 888
1
#27
5C4-27431-00-00
FOOTREST, REAR 1
$20.66¢10 331
1
#28
4WM-27433-00-00
COVER, REAR FOOTREST
$21.07¢10 538
1
#29
36Y-83913-01-00
COLLAR, LEVER 1
$10.64¢5 319
1
#30
90109-06016-00
BOLT
$9.24¢4 619
1
#31
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#32
1D7-27437-00-00
WASHER, SPECIAL
$4.60¢2 300
1
#33
90501-15001-00
SPRING, COMPRESSION
$1.94¢969
1
#34
93501-04011-00
BALL
$7.46¢3 731
1
#35
90105-10293-00
BOLT, FLANGE
$6.63¢3 313
1
#36
5C7-27440-00-00
REAR FOOTREST ASSY 2
$555.70¢277 850
1
#37
1D7-27441-00-00
FOOTREST, REAR 2
$34.86¢17 431
1
#38
4WM-27433-00-00
COVER, REAR FOOTREST
$21.07¢10 538
1
#39
36Y-83913-01-00
COLLAR, LEVER 1
$10.64¢5 319
1
#40
90109-06016-00
BOLT
$9.24¢4 619
1
#41
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#42
1D7-27437-00-00
WASHER, SPECIAL
$4.60¢2 300
1
#43
90501-15001-00
SPRING, COMPRESSION
$1.94¢969
1
#44
93501-04011-00
BALL
$7.46¢3 731
1
#45
5C7-21446-00-00
STAY, MUFFLER 2
$174.53¢87 263
1
#46
2C0-14747-00-00
DAMPER, MUFFLER
$8.35¢4 175
1
#47
95024-08020-00
BOLT,FLANGE (2UJ)
$7.94¢3 969
1
#48
5C7-27267-00-00
GUIDE, WIRE
$60.65¢30 325
1
#49
95022-08012-00
BOLT, FLANGE
$11.31¢5 656
1
#50
90387-08021-00
COLLAR
$10.14¢5 069
1
#51
90105-10154-00
BOLT, FLANGE
$5.44¢2 719
1
#52
5C7-2171G-00-00
BRACKET, STOPPER STEEERING
$35.15¢17 575
1
#53
5C7-2174X-00-00
DAMPER
$3.16¢1 581
1
#54
5C7-27321-00-00
BRACKET, SIDE STAND
$232.47¢116 238
1
#55
1D7-27311-00-00
STAND, SIDE
$320.89¢160 444
1
#56
90387-12031-00
COLLAR
$14.13¢7 063
1
#57
90105-12018-00
BOLT, FLANGE
$11.95¢5 975
1
#58
90185-12119-00
NUT, SELF-LOCKING
$10.29¢5 144
1
#59
90506-35005-00
SPRING, TENSION
$16.65¢8 325
1
#60
3D8-82566-B0-00
SWITCH, SIDE STAND
$115.65¢57 825
1
#61
4WM-8252U-00-00
COVER
$17.48¢8 738
1
#62
92017-05025-00
BOLT, BUTTON HEAD
$6.47¢3 238
1
#63
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
1
#64
90445-22327-00
HOSE
$7.57¢3 787
1
#65
90105-10158-00
BOLT, FLANGE
$9.13¢4 563
1
