CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

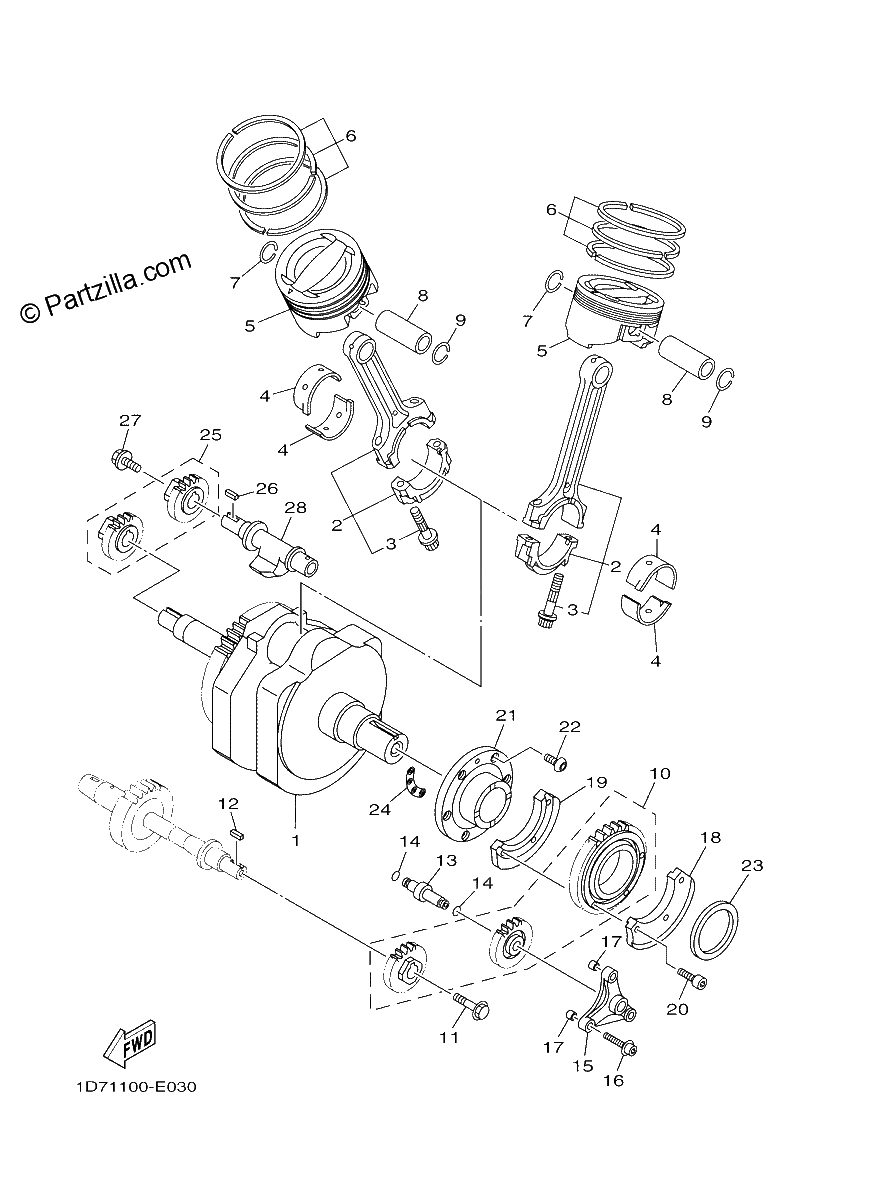

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
5C7-11400-01-00
CRANKSHAFT ASSY
$1183.74¢591 869
1
#2
5C7-11650-01-00
CONNECTING ROD ASSY
$389.13¢194 563
1
#3
5YU-11654-00-00
BOLT, CONNECTING ROD
$8.50¢4 250
1
#4
5YU-11656-00-00
PLANE BEARING, CONNECTING ROD | UR BLUE
$19.23¢9 613
1
#4
5YU-11656-20-00
PLANE BEARING, CONNECTING ROD | UR BROWN
$17.96¢8 981
1
#4
5YU-11656-30-00
PLANE BEARING, CONNECTING ROD | UR GREEN
$18.61¢9 306
1
#4
5YU-11656-40-00
PLANE BEARING, CONNECTING ROD | UR YELLOW
$17.80¢8 900
1
#4
5YU-11656-10-00
PLANE BEARING, CONNECTING ROD | UR BLACK
$19.09¢9 544
1
#5
1D7-11631-00-00
PISTON (STD)
$187.06¢93 531
1
#6
1D7-11610-00-00
PISTON RING SET (STD)
$55.79¢27 894
1
#7
93450-24154-00
CIRCLIP
$3.41¢1 706
1
#8
5VK-11633-00-00
PIN, PISTON
$43.49¢21 744
1
#9
93450-24154-00
CIRCLIP
$3.41¢1 706
1
#10
1D7-W114B-00-00
DRIVE GEAR SET
$372.60¢186 300
1
#11
90105-10152-00
BOLT, FLANGE
$11.17¢5 587
1
#12
90282-04001-00
KEY, STRAIGHT
$5.96¢2 981
1
#13
1D7-11455-00-00
SHAFT 1
$37.16¢18 581
1
#14
93210-06003-00
O-RING
$5.05¢2 525
1
#15
1D7-1135A-00-00
BRACKET
$34.94¢17 469
1
#16
90109-06028-00
BOLT
$1.69¢844
1
#17
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#18
1D7-11454-00-00
WEIGHT 1
$90.72¢45 363
1
#19
1D7-1145A-00-00
WEIGHT 3
$95.08¢47 538
1
#20
90110-06211-00
BOLT, HEXAGON SOCKET HEAD
$2.44¢1 219
1
#21
1D7-11444-00-00
HOUSING
$276.70¢138 350
1
#22
90149-06166-00
Screw
$7.76¢3 881
1
#23
1D7-11483-00-00
WASHER, WEIGHT 1
$32.73¢16 363
1
#24
1D7-11479-00-00
GASKET
$35.49¢17 744
1
#25
1D7-W114A-00-00
BREAKER GEAR SET
$183.92¢91 962
1
#26
90282-04001-00
KEY, STRAIGHT
$5.96¢2 981
1
#27
90105-10445-00
BOLT, FLANGE
$11.53¢5 763
1
#28
1D7-11464-00-00
WEIGHT 2
$201.08¢100 538
1
