ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

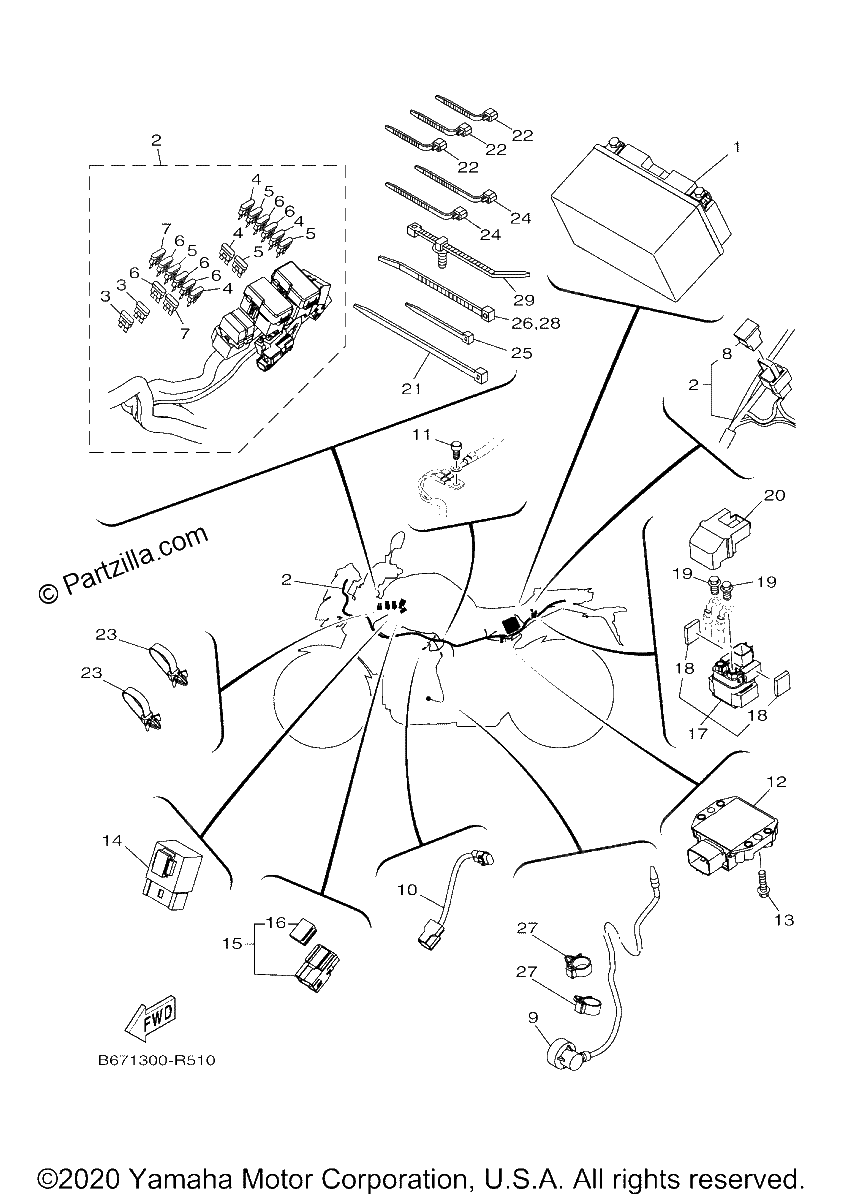

Diagrama de ELECTRICAL 2

Repuestos

#1
YTZ-10S00-00-00
YTZ10S YUASA BATTER
$216.40¢108 198
1
#2
B67-82590-10-00
WIRE HARNESS ASSY
$1220.14¢610 069
1
#3
1MC-82151-00-00
FUSE (1A-BL)
$3.58¢1 788
1
#4
67F-82151-50-00
FUSE (15A)
$4.08¢2 041
1
#5
67F-82151-40-00
FUSE (10A)
$7.13¢3 565
1
#6
5JJ-82151-00-00
FUSE (7.5A-BL)
$6.51¢3 254
1
#7
5JJ-82151-80-00
FUSE (2A-BL)
$7.75¢3 875
1
#8
5JW-82151-10-00
FUSE (50A)
$15.65¢7 826
1
#9
B67-82509-00-00
WIRE, SUB LEAD
$14.04¢7 021
1
#10
B67-82309-00-00
WIRE, SUB LEAD
$16.65¢8 326
1
#11
91317-06012-00
BOLT
$6.75¢3 375
1
#12
2CR-81960-00-00
RECTIFIER REGULATOR ASSY
$164.19¢82 093
1
#13
95027-06020-00
BOLT, FLANGE
$1.13¢564
1
#14
5VK-81950-41-00
RELAY ASSY (replaces 5VK-81950-40-00)
$65.04¢32 522
1
#15
1ST-81950-00-00
RELAY ASSY (1ST-00)
$16.38¢8 188
1
#16
5JJ-81952-00-00
HOLDER, RELAY
$8.71¢4 353
1
#17
1XC-81940-00-00
STARTER RELAY ASSY (RC19-089B)
$62.64¢31 320
1
#18
1AE-82151-00-00
FUSE (30A-BL)
$6.82¢3 410
1
#19
95022-06008-00
BOLT, FLANGE
$6.87¢3 433
1
#20
5SL-82119-10-00
COVER, LEAD WIRE
$4.45¢2 225
1
#21
90464-80002-00
CLAMP
$5.65¢2 823
1
#22
90464-13077-00
CLAMP
$7.30¢3 651
1
#23
90464-10112-00
CLAMP
$6.76¢3 381
1
#24
90464-15195-00
CLAMP
$3.04¢1 518
1
#25
90464-16061-00
BAND
$7.68¢3 841
1
#26
1UA-82591-00-00
BAND
$4.52¢2 260
1
#27
90464-16006-00
CLAMP
$9.12¢4 560
1
#28
1UA-82591-00-00
BAND
$4.52¢2 260
1
#29
5RU-12491-00-00
CLAMP 1
$2.88¢1 438
1
