FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

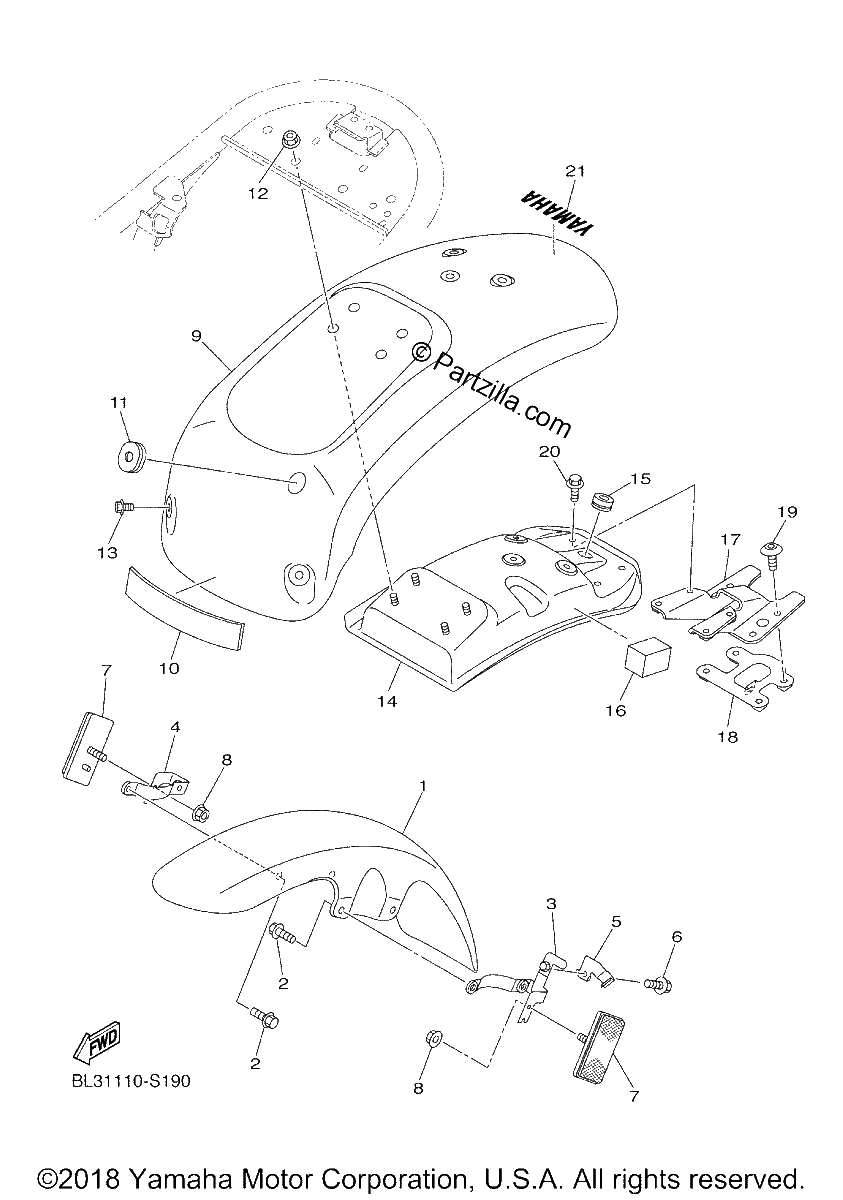

Diagrama de FENDER

Repuestos

#1
1TP-21510-00-P3
FRONT FENDER COMP.
$394.25¢197 127
1
#1
1TP-21510-00-PB
FRONT FENDER COMP.
$522.77¢261 383
1
#2
95812-08020-00
Bolt, Flange
$1.85¢926
1
#3
1TP-21587-00-00
STAY 1
$25.77¢12 886
1
#4
1TP-21588-00-00
STAY 2
$20.84¢10 419
1
#5
27D-25887-00-00
HOLDER, BRAKE HOSE
$15.05¢7 527
1
#6
95027-06010-00
BOLT,FLANGE(4MY)
$2.71¢1 357
1
#7
11H-85110-01-00
REFLECTOR ASSY
$22.93¢11 466
1
#8
95707-05500-00
NUT, FLANGE
$6.76¢3 381
1
#9
BL3-21610-00-P0
REAR FENDER COMP.
$1053.39¢526 694
1
#9
BL3-21610-00-P1
REAR FENDER COMP.
$1059.14¢529 569
1
#10
90520-02013-00
DAMPER, PLATE
$1.97¢983
1
#11
90480-15061-00
GROMMET
$7.30¢3 651
1
#12
95707-06500-00
NUT, FLANGE
$0.86¢431
1
#13
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#14
BL3-21643-00-00
STAY, REAR
$108.54¢54 268
1
#15
90480-14016-00
GROMMET
$6.92¢3 461
1
#16
90520-20008-00
DAMPER, PLATE
$1.79¢897
1
#17
BL3-2164F-00-00
STAY 1
$60.31¢30 153
1
#18
3D7-2164G-00-00
STAY 2
$14.48¢7 239
1
#19
90111-06061-00
BOLT, HEX. SOCKET BUTTON
$6.87¢3 433
1
#20
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#21
99244-00080-00
EMBLEM, YAMAHA
$14.98¢7 492
1
