FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

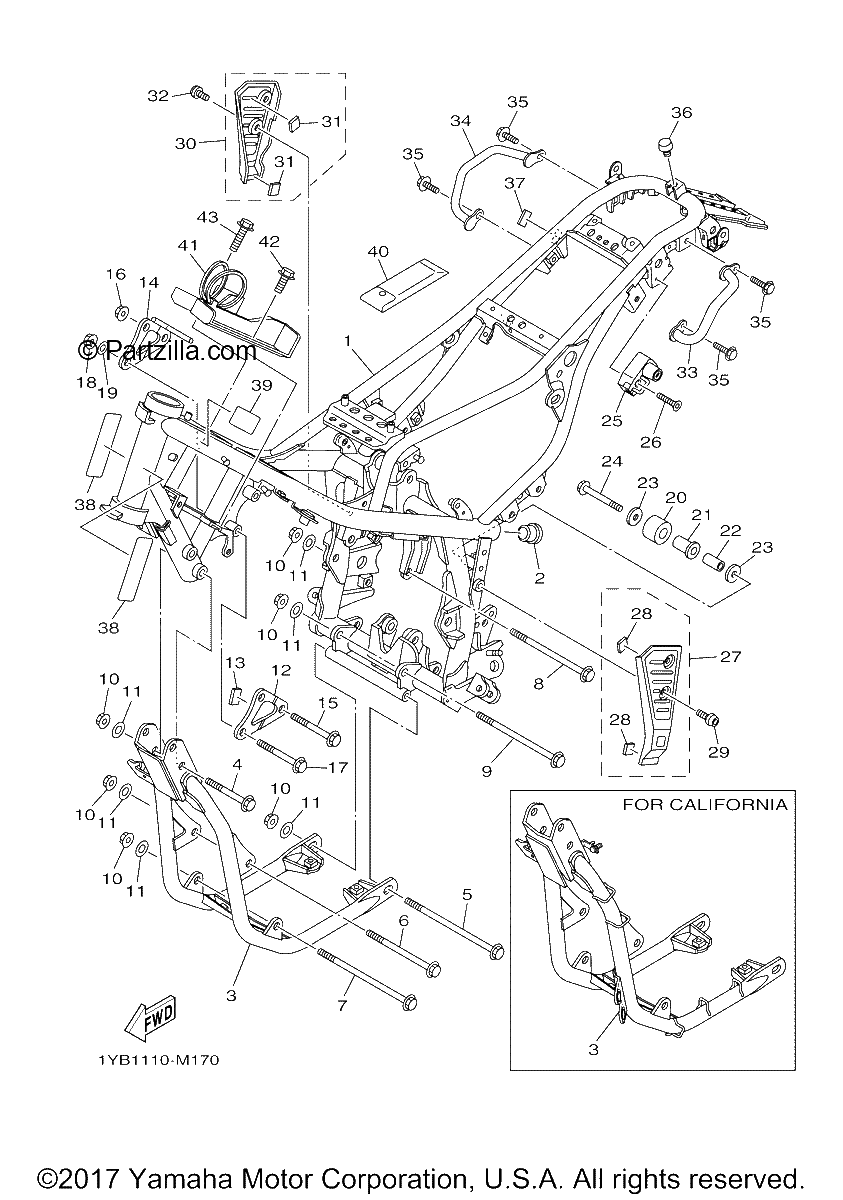

Diagrama de FRAME

Repuestos

#1
1YB-21110-00-00
FRAME COMP.
$1691.61¢845 806
1
#2
90338-26004-00
PLUG
$7.56¢3 781
1
#3
3C5-21140-10-00
DOWN TUBE COMP.
$401.70¢200 850
1
#3
3C5-21140-20-00
DOWN TUBE COMP. This item has been discontinued and may not be available. Contact us for more information.
$386.15¢193 075
1
#4
90105-10788-00
BOLT,WASHER BASED
$9.00¢4 500
1
#5
90105-10300-00
BOLT,WASHER BASED
$11.46¢5 731
1
#6
90105-10220-00
Bolt, Flange
$10.85¢5 425
1
#7
90105-10403-00
Bolt, Flange
$9.96¢4 981
1
#8
90105-10219-00
Bolt, Flange
$6.84¢3 419
1
#9
90105-10214-00
Bolt, Flange
$10.81¢5 406
1
#10
90179-10658-00
NUT,SPEC'L SHAPE
$9.22¢4 613
1
#11
90201-10035-00
WASHER, plate
$4.25¢2 125
1
#12
3C5-21315-20-00
STAY, ENGINE 2
$14.86¢7 431
1
#13
51Y-21639-00-00
DAMPER 2
$6.45¢3 225
1
#14
3C5-21316-20-00
STAY, ENGINE 3
$22.09¢11 044
1
#15
90105-10281-00
Bolt, Flange
$16.14¢8 069
1
#16
90179-10658-00
NUT,SPEC'L SHAPE
$9.22¢4 613
1
#17
90105-08102-00
Bolt, Flange
$5.51¢2 756
1
#18
90179-08674-00
NUT(4KM)
$6.78¢3 388
1
#19
90201-08043-00
WASHER, plate
$6.88¢3 438
1
#20
10V-22178-00-00
TENSIONER
$7.86¢3 931
1
#21
10V-22184-00-00
Bush
$8.03¢4 013
1
#22
90387-08024-00
Collar
$7.52¢3 762
1
#23
90201-081R9-00
WASHER, PLATE 8AT (replaces 90201-08753-00)
$7.52¢3 762
1
#24
95022-08045-00
Bolt, Flange
$7.28¢3 638
1
#25
4R8-21308-01-00
HELMET HANGER ASSY
$87.00¢43 500
1
#26
90149-06154-00
SCREW,SPEC'L SHAPE (replaces 90151-06018-00)
$8.24¢4 119
1
#27
3C5-2110M-01-00
COVER ASSY 1
$74.35¢37 175
1
#28
5XT-2139X-01-00
Damper
$4.15¢2 075
1
#29
90149-06298-00
SCREW,SPEC'L SHAPE
$5.07¢2 537
1
#30
3C5-2110N-01-00
COVER ASSY 2
$101.21¢50 606
1
#31
5XT-2139X-01-00
Damper
$4.15¢2 075
1
#32
90149-06298-00
SCREW,SPEC'L SHAPE
$5.07¢2 537
1
#33
3C5-21165-00-00
HANDLE, STANDING
$60.91¢30 456
1
#34
3C5-21275-00-00
STAY, REAR
$55.79¢27 894
1
#35
95814-08016-00
BOLT,FLANGE (replaces 95802-08016-00)
$7.94¢3 969
1
#36
5RU-24768-00-00
Stopper
$8.20¢4 100
1
#37
5G3-21747-00-00
DAMPER (replaces 22F-21746-01-00) This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#38
5XT-21268-00-00
SEAL
$7.25¢3 625
1
#39
32C-21686-00-00
PLATE, ROUTING 2 | FOR CALIFORNIA
$9.07¢4 538
1
#40
3C5-28100-00-00
Tool Kit
$60.95¢30 475
1
#41
5XT-21107-00-00
TOOL BOX COMP.
$26.70¢13 350
1
#42
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#43
95022-06035-00
Bolt, Flange
$3.55¢1 775
1
