SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

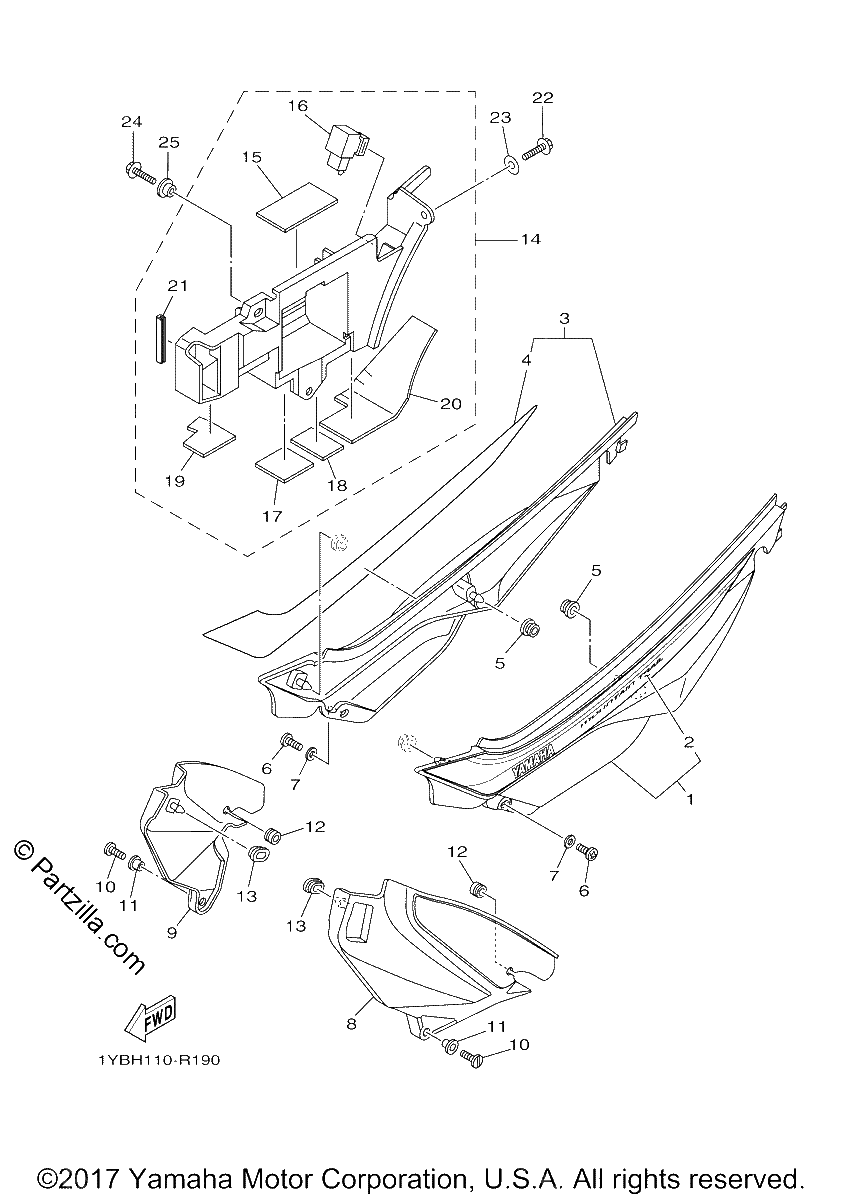

Diagrama de SIDE COVER

Repuestos

#1
3C5-Y2171-Y0-00
COVER, SIDE 1
$127.75¢63 877
1
#2
3C5-2173E-R0-00
GRAPHIC 1
$33.51¢16 755
1
#3
3C5-Y2172-Y0-00
COVER, SIDE 2
$127.75¢63 877
1
#4
3C5-2173F-R0-00
GRAPHIC 2
$33.51¢16 755
1
#5
90480-01558-00
Grommet
$4.31¢2 156
1
#6
90149-06298-00
SCREW,SPEC'L SHAPE
$4.67¢2 335
1
#7
90201-06020-00
WASHER, PLATE (replaces 90201-06058-00)
$6.88¢3 439
1
#8
3C5-21731-00-00
COVER, SIDE 3
$13.40¢6 699
1
#9
3C5-21741-00-00
COVER, SIDE 4
$14.35¢7 176
1
#10
90146-06014-00
SCREW,OVAL FLSTR
$2.75¢1 374
1
#11
90387-06048-00
Collar
$6.65¢3 323
1
#12
90480-10334-00
Grommet
$7.56¢3 778
1
#13
90480-01141-00
90480-01401-00 This item has been discontinued and may not be available. Contact us for more information.
$6.21¢3 105
1
#14
1YB-8210E-20-00
BATTERY BOX ASSY
$127.56¢63 779
1
#15
5EJ-2414H-00-00
DAMPER, PLATE 1
$7.23¢3 617
1
#16
4MY-83350-02-00
FLASHER RELAY ASSY (replaces 4MY-83350-01-00)
$51.50¢25 749
1
#17
5XT-2174A-00-00
INSULATOR, SIDE COVE
$3.96¢1 978
1
#18
5XT-2174T-00-00
INSULATOR, SIDE COVE
$3.82¢1 909
1
#19
5XT-2172S-00-00
INSULATOR 3
$4.32¢2 162
1
#20
5XT-2173S-00-00
INSULATOR 4
$5.47¢2 737
1
#21
31A-24188-01-00
MOLD, FUEL TANK
$13.39¢6 693
1
#22
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.28¢2 139
1
#23
90201-06095-00
WASHER, PLATE (replaces 90201-06063-00)
$6.89¢3 444
1
#24
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.44¢1 219
1
#25
90387-06066-00
Collar
$5.86¢2 932
1
