CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

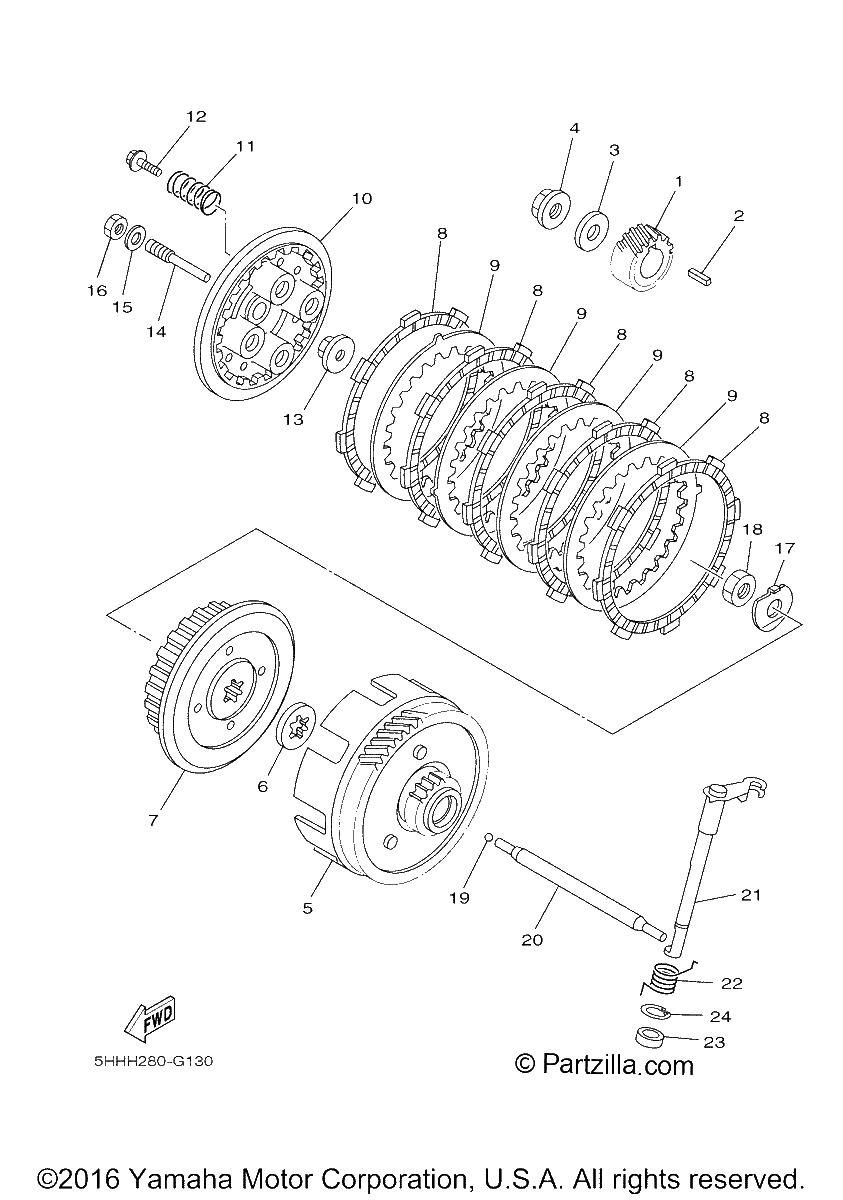

Diagrama de CLUTCH

Repuestos

#1
401-16111-10-00
GEAR, PRIMARY DRIVE (19T)
$79.09¢39 543
1
#2
90282-05001-00
KEY, STRAIGHT (5MMX16MM)
$8.50¢4 249
1
#3
90201-122H1-00
WASHER, PLATE
$7.45¢3 726
1
#4
90179-12659-00
NUT, (1FE) (replaces 90179-12813-00)
$5.89¢2 944
1
#5
1B2-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$367.63¢183 816
1
#6
4V0-16154-00-00
PLATE, THRUST 1
$27.70¢13 852
1
#7
5AP-16371-00-00
BOSS, CLUTCH
$120.06¢60 030
1
#8
598-16321-01-00
PLATE, FRICTION
$16.53¢8 263
1
#9
1V1-16324-00-00
PLATE, CLUTCH 1
$18.92¢9 459
1
#10
5AP-16351-00-00
PLATE, PRESSURE 1
$42.83¢21 413
1
#11
90501-204A0-00
SPRING, COMPRESSION
$6.75¢3 375
1
#12
90119-05020-00
BOLT, WITH WASHER
$5.86¢2 932
1
#13
1W1-16358-01-00
PLATE, PUSH
$21.98¢10 988
1
#14
5AP-16356-00-00
ROD, PUSH 1
$12.49¢6 244
1
#15
92907-06200-00
WASHER
$6.76¢3 381
1
#16
95317-06600-00
NUT
$2.96¢1 478
1
#17
90215-12211-00
WASHER, LOCK
$6.75¢3 375
1
#18
90170-12060-00
NUT
$9.07¢4 537
1
#19
93503-16003-00
BALL
$2.30¢1 150
1
#20
5VL-E6357-01-00
ROD, PUSH
$21.54¢10 770
1
#21
1B2-E6381-01-00
PUSH LEVER COMP.
$104.81¢52 406
1
#22
90508-16W13-00
SPRING, TORSION
$1.26¢633
1
#23
93102-12224-00
OIL SEAL
$9.14¢4 571
1
#24
99009-20500-00
CIRCLIP
$1.35¢673
1
