SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

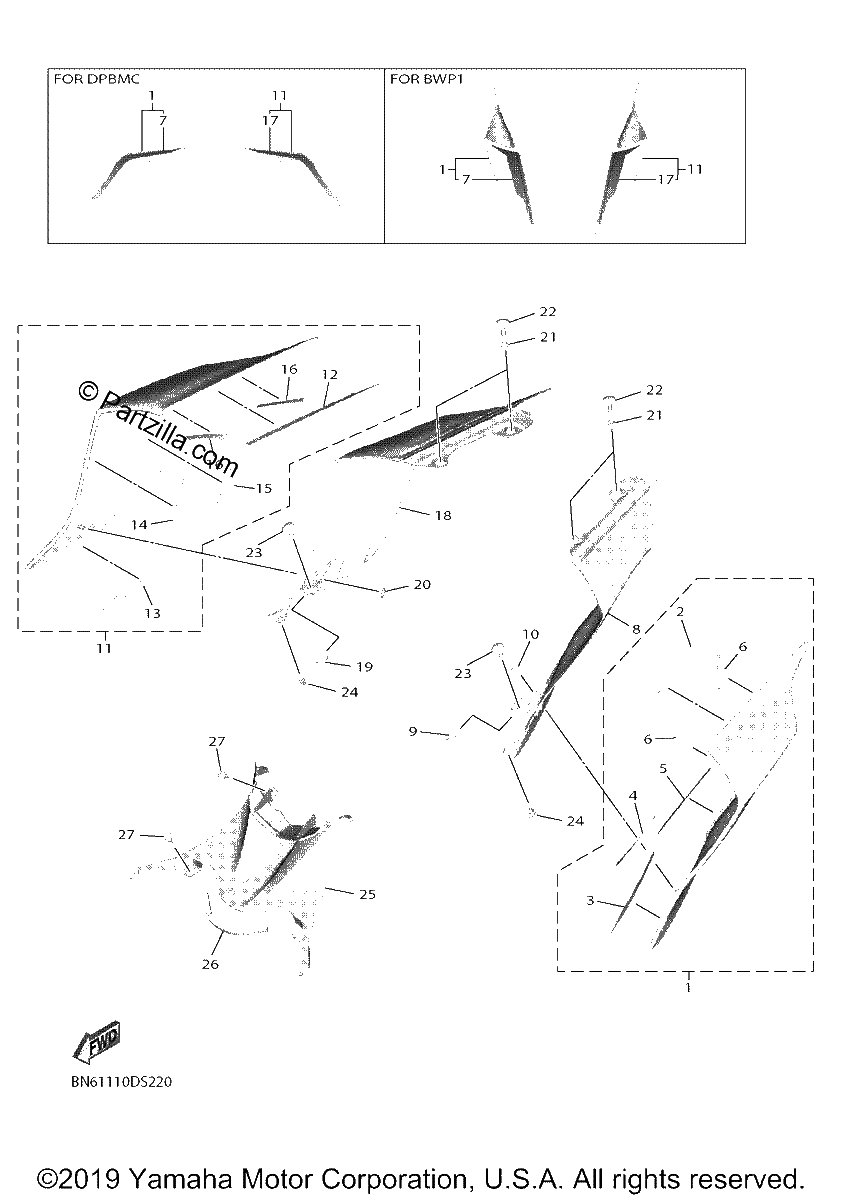

Diagrama de SIDE COVER

Repuestos

#1
BN6-W2171-20-P2
COVER, SIDE 1
$160.91¢80 456
1
#1
BN6-W2171-10-P1
COVER, SIDE 1
$160.78¢80 388
1
#1
BN6-W2171-00-P0
COVER, SIDE 1
$160.63¢80 313
1
#2
BN6-2173T-00-00
TAPE 1
$8.34¢4 169
1
#3
BN6-21566-00-00
TAPE, 1
$6.03¢3 013
1
#4
1RC-2111D-00-00
SEAL 1
$3.56¢1 781
1
#5
BN6-2111D-00-00
SEAL 1
$3.90¢1 950
1
#6
BN6-21669-00-00
SEAL
$5.19¢2 594
1
#7
BN6-2173E-10-00
GRAPHIC 1
$24.22¢12 112
1
#7
BN6-2173E-00-00
GRAPHIC 1
$54.47¢27 237
1
#8
BN6-21731-00-00
COVER, SIDE 3
$27.68¢13 838
1
#9
90183-06069-00
NUT, SPRING
$7.26¢3 631
1
#10
90209-03274-00
WASHER
$9.98¢4 988
1
#11
BN6-W2172-10-P1
SIDE COVER 2
$159.71¢79 856
1
#11
BN6-W2172-00-P0
SIDE COVER 2
$160.63¢80 313
1
#11
BN6-W2172-20-P2
SIDE COVER 2
$125.10¢62 550
1
#12
BN6-2173U-00-00
TAPE 2
$7.40¢3 700
1
#13
BN6-21567-00-00
TAPE, 2
$6.03¢3 013
1
#14
1RC-2111D-00-00
SEAL 1
$3.56¢1 781
1
#15
BN6-2111D-00-00
SEAL 1
$3.90¢1 950
1
#16
BN6-21669-00-00
SEAL
$5.19¢2 594
1
#17
BN6-2173F-00-00
GRAPHIC 2
$44.60¢22 300
1
#17
BN6-2173F-10-00
GRAPHIC 2
$24.22¢12 112
1
#18
BN6-21741-00-00
COVER, SIDE 4
$23.57¢11 788
1
#19
90183-06069-00
NUT, SPRING
$7.26¢3 631
1
#20
90209-03274-00
WASHER
$9.98¢4 988
1
#21
90387-06069-00
COLLAR
$7.91¢3 956
1
#22
90111-06086-00
BOLT, HEX. SOCKET BUTTON
$5.91¢2 956
1
#23
90111-06136-00
BOLT, HEX. SOCKET BUTTON
$5.61¢2 806
1
#24
90269-06018-00
RIVET
$2.23¢1 113
1
#25
BN6-2171E-00-00
COVER, SIDE 5
$66.19¢33 094
1
#26
4C8-21747-00-00
DAMPER
$7.08¢3 538
1
#27
90269-05008-00
RIVET
$3.02¢1 513
1
