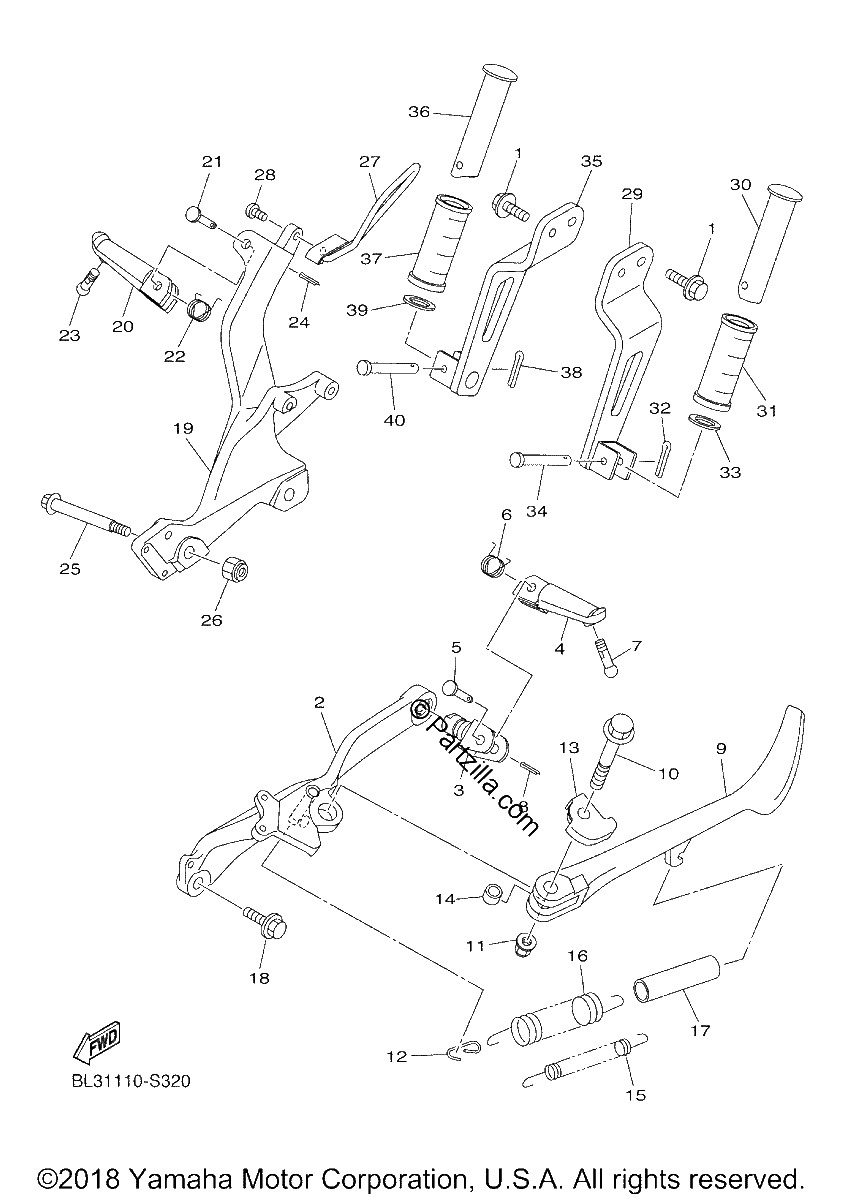

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
Bolt, Flange
$9.03¢4 514
#2
FOOTREST 1
$302.58¢151 288
#3
FOOTREST 1
$32.65¢16 324
#4
Footrest
$20.55¢10 275
#5
PIN
$6.43¢3 214
#6
SPRING, TORSION
$7.30¢3 651
#7
BOLT
$6.52¢3 260
#8
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
#9
STAND, SIDE
$180.24¢90 120
#10
BOLT, FLANGE
$8.07¢4 036
#11
NUT, SELF-LOCKING
$6.27¢3 134
#12
LINK, SIDE STAND
$7.60¢3 801
#13
WASHER
$15.12¢7 561
#14
COLLAR
$17.96¢8 981
#15
SPRING, TENSION
$9.81¢4 905
#16
SPRING, TENSION
$14.11¢7 055
#17
HOSE (L60)
$6.69¢3 347
#18
BOLT, FLANGE
$7.53¢3 766
#19
FOOTREST 2
$277.15¢138 575
#20
FOOTREST
$23.85¢11 925
#21
PIN, CLEVIS
$4.45¢2 225
#22
SPRING, TORSION
$7.30¢3 651
#23
BOLT
$6.52¢3 260
#24
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
#25
BOLT, FLANGE
$4.55¢2 277
#26
NUT, SELF-LOCKING
$6.27¢3 134
#27
GUIDE, WIRE
$19.49¢9 746
#28
BOLT, BUTTON HEAD
$6.76¢3 381
#29
BRACKET 1
$78.80¢39 399
#30
FOOTREST, REAR 1
$30.87¢15 433
#31
COVER, REAR FOOTREST
$17.39¢8 694
#32
PIN, COTTER
$2.02¢1 012
#33
WASHER, PLATE
$7.58¢3 789
#34
PIN
$7.51¢3 755
#35
BRACKET 2
$72.97¢36 484
#36
FOOTREST, REAR 1
$30.87¢15 433
#37
COVER, REAR FOOTREST
$17.39¢8 694
#38
PIN, COTTER
$2.02¢1 012
#39
WASHER, PLATE
$7.58¢3 789
#40
PIN
$7.51¢3 755
