CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

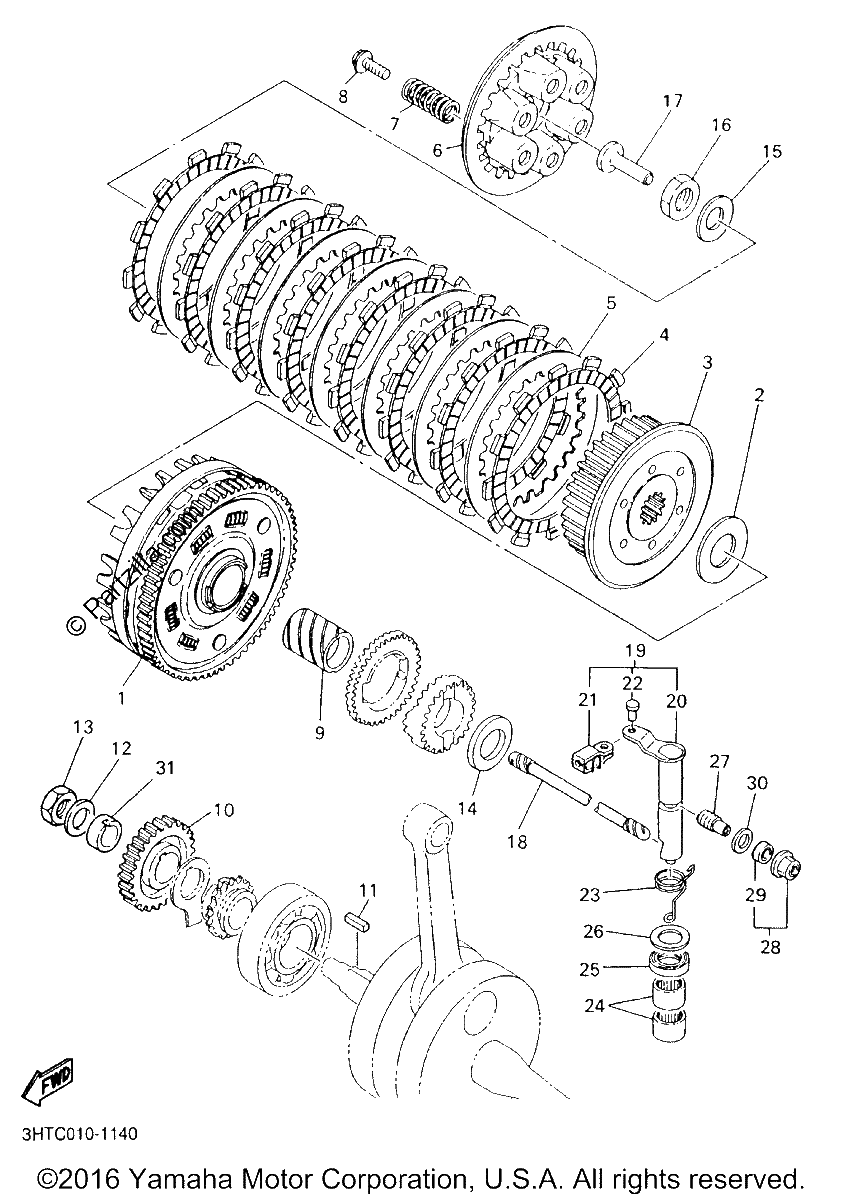

Diagrama de CLUTCH

Repuestos

#1
2J2-16150-00-00
PRIMARY DRIVEN GEAR COMP. (77T)
$259.20¢129 599
1
#2
170-16164-00-00
PLATE, THRUST 2
$9.49¢4 744
1
#3
583-16371-00-00
BOSS, CLUTCH
$111.20¢55 603
1
#4
5Y1-16321-00-00
PLATE, FRICTION
$17.39¢8 694
1
#5
360-16325-00-00
PLATE, CLUTCH 2
$33.92¢16 963
1
#6
498-16351-00-00
PLATE, PRESSURE 1
$55.07¢27 537
1
#7
90501-234L3-00
SPRING, COMPRESSION
$8.75¢4 376
1
#8
90159-06010-00
SCREW, WITH WASHER
$7.18¢3 588
1
#9
90560-25153-00
SPACER
$26.19¢13 093
1
#10
3HT-16111-00-00
GEAR, PRIMARY DRIVE
$88.69¢44 344
1
#11
90282-07021-00
KEY, STRAIGHT
$8.52¢4 261
1
#12
90208-16019-00
WASHER, CONICAL SPRING
$6.75¢3 375
1
#13
90170-16425-00
NUT
$7.24¢3 622
1
#14
363-16154-00-00
PLATE, THRUST 1
$15.65¢7 826
1
#15
214-16119-00-00
SPRING, BELLEVILLE
$10.43¢5 215
1
#16
90170-18086-00
NUT
$11.36¢5 681
1
#17
174-16356-00-00
ROD, PUSH 1
$21.07¢10 534
1
#18
583-16357-01-00
ROD, PUSH 2
$47.56¢23 782
1
#19
583-16302-00-00
AXLE PUSH LEVER ASSY
$188.12¢94 059
1
#20
583-16381-00-00
PUSH LEVER COMP.
$99.68¢49 841
1
#21
214-16389-00-00
JOINT
$9.07¢4 537
1
#22
90243-06016-00
PIN
$6.52¢3 260
1
#23
90508-12279-00
SPRING, TORSION
$6.36¢3 180
1
#24
93315-11720-00
BEARING
$31.06¢15 531
1
#25
93102-17357-00
OIL SEAL
$11.45¢5 727
1
#26
90201-18262-00
WASHER, PLATE
$6.88¢3 439
1
#27
364-16343-00-00
SCREW, ADJUSTING
$7.38¢3 691
1
#28
583-16344-00-00
NUT, ADJUSTING
$31.49¢15 743
1
#29
93104-07036-00
OIL SEAL
$7.99¢3 996
1
#30
90201-12172-00
WASHER,PLATE
$3.16¢1 581
1
#31
90387-20644-00
COLLAR
$12.49¢6 244
1
