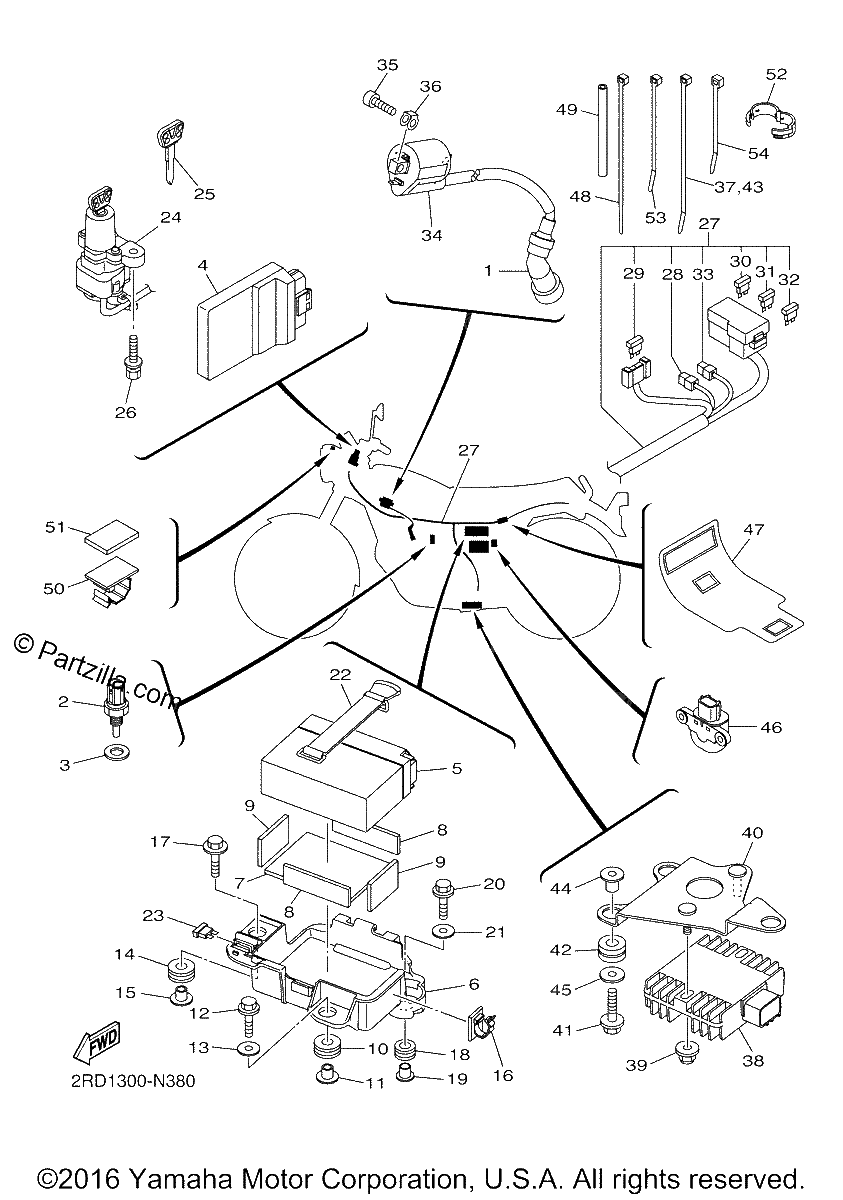

ELECTRICAL 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PLUG CAP ASY
$38.68¢19 338
#2
THERMO UNIT (replaces 4P9-83591-00-00)
$34.40¢17 200
#3
WASHER, PLATE
$4.07¢2 037
#4
ENGINE CONTROL UNIT ASSY
$851.24¢425 619
#5
GT4B5 GS BATTERY - (replaces 4JS-82100-10-00)
$101.84¢50 919
#6
BOX, BATTERY 1
$25.53¢12 763
#7
DAMPER, PLATE
$4.15¢2 075
#8
DAMPER, MUFFLER 2
$3.50¢1 750
#9
DAMPER
$1.99¢994
#10
GROMMET
$1.59¢794
#11
COLLAR
$6.19¢3 094
#12
BOLT, FLANGE
$1.44¢719
#13
WASHER PLAIN
$0.69¢344
#14
GROMMET
$1.59¢794
#15
COLLAR
$6.19¢3 094
#16
CLAMP
$4.59¢2 294
#17
BOLT, WITH WASHER
$6.50¢3 250
#18
GROMMET
$7.43¢3 713
#19
COLLAR
$4.20¢2 100
#20
BOLT, FLANGE
$1.44¢719
#21
WASHER PLAIN
$0.69¢344
#22
BAND,BATTERY (replaces 18G-82131-00-00)
$19.11¢9 556
#23
FUSE (30A-BL)
$7.41¢3 706
#24
MAIN SWITCH STEERING LOCK
$211.35¢105 675
#25
BLANK KEY | AP
$29.11¢14 556
#26
BOLT
$7.35¢3 675
#27
WIRE HARNESS ASSY
$652.49¢326 244
#28
DIODE ASSY
$18.90¢9 450
#29
FUSE (30A-BL)
$7.41¢3 706
#30
FUSE (15A)
$4.44¢2 219
#31
FUSE (10A)
$7.75¢3 875
#32
FUSE (7.5A-BL)
$7.08¢3 538
#33
RECTIFIER 2
$22.45¢11 225
#34
IGNITION COIL ASSY
$61.48¢30 738
#35
BOLT, HEXAGON SOCKET HEAD
$8.39¢4 194
#36
DAMPER, IGNITION COIL
$6.14¢3 069
#37
BAND
$4.91¢2 456
#38
RECTIFIER REGULATOR ASSY
$184.41¢92 206
#39
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
#40
STAY, RECTIFIER
$15.10¢7 550
#41
BOLT,FLANGE (replaces 90105-06125-00)
$1.75¢875
#42
GROMMET
$7.34¢3 669
#43
BAND
$4.91¢2 456
#44
COLLAR
$7.34¢3 669
#45
WASHER, PLATE (replaces 90201-06063-00)
$7.49¢3 744
#46
SENSOR, LEAN ANGLE
$73.45¢36 725
#47
PROTECTER, WIRE HARNESS
$11.55¢5 775
#48
BAND
$4.91¢2 456
#49
HOSE (L200) | FOR CAL
$8.39¢4 194
#50
CLAMP
$6.54¢3 269
#51
SEAL 1
$7.08¢3 538
#52
CLAMP
$2.04¢1 019
#53
CLAMP
$8.46¢4 231
#54
CLAMP
$2.78¢1 388
