FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

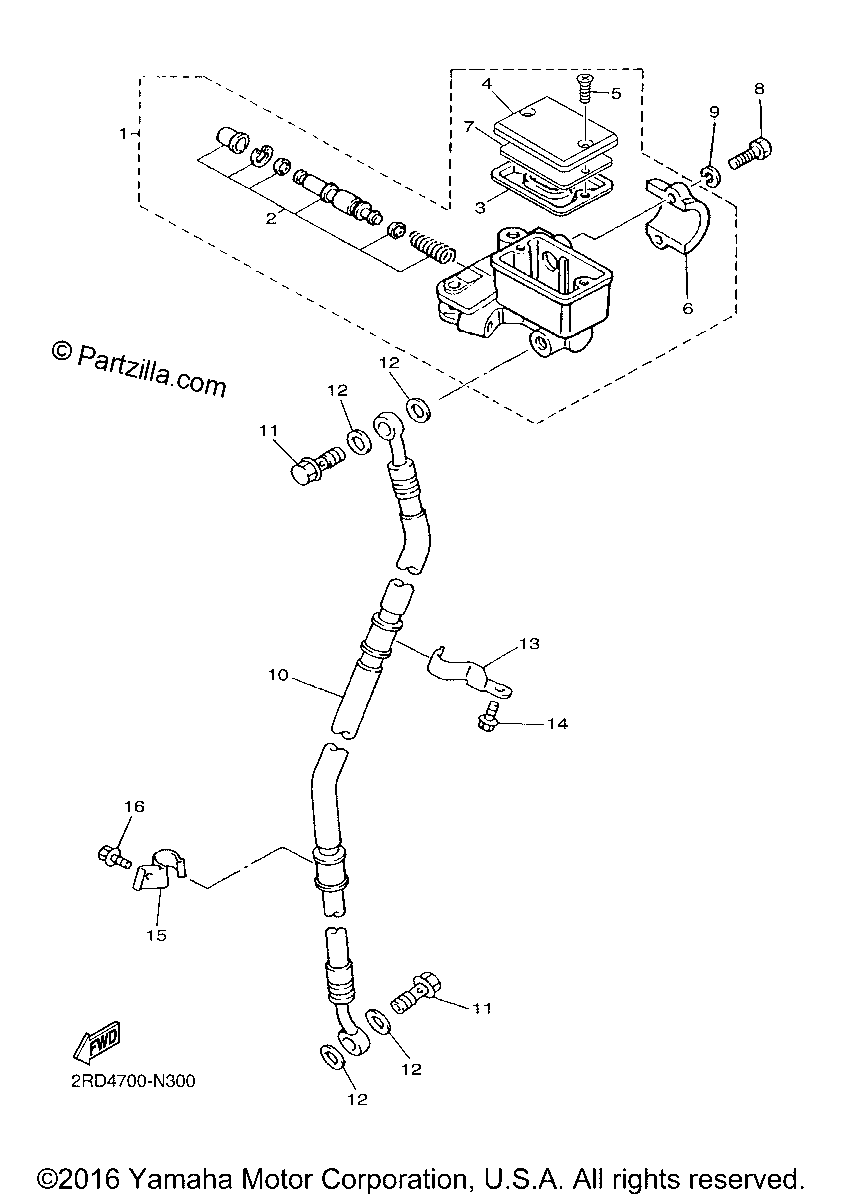

Diagrama de FRONT MASTER CYLINDER

Repuestos

#1
3HT-2583T-00-00
MASTER CYLINDER ASSY
$157.39¢78 694
1
#2
4H7-W0041-00-00
CYLINDER KIT, MASTER
$91.72¢45 863
1
#3
4HM-25854-00-00
DIAPHRAGM, RESERVOIR
$37.17¢18 588
1
#4
4HM-25852-01-00
CAP, RESERVOIR
$20.04¢10 019
1
#5
98707-04012-00
SCREW, FLAT HEAD
$1.71¢856
1
#6
4L0-25867-00-00
BRACKET, MASTER CYLINDER
$33.73¢16 863
1
#7
3GM-2585B-10-00
PLATE, DIAPHRAGM
$12.48¢6 238
1
#8
97017-06025-00
BOLT,HEXAGON (replaces 97007-06025-00)
$3.55¢1 775
1
#9
92907-06600-00
WASHER, PLATE (6TA)
$0.96¢481
1
#10
3HT-25872-11-00
HOSE, BRAKE 1
$74.47¢37 238
1
#11
90401-10020-00
BOLT, UNION
$9.86¢4 931
1
#12
90430-10005-00
GASKET
$8.39¢4 194
1
#13
3HT-25886-00-00
HOLDER, BRAKE HOSE
$8.60¢4 300
1
#14
95027-06010-00
BOLT,FLANGE(4MY)
$2.95¢1 475
1
#15
5JX-21598-00-00
HOLDER, WIRE 2
$11.50¢5 750
1
#16
95027-06010-00
BOLT,FLANGE(4MY)
$2.95¢1 475
1
