CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

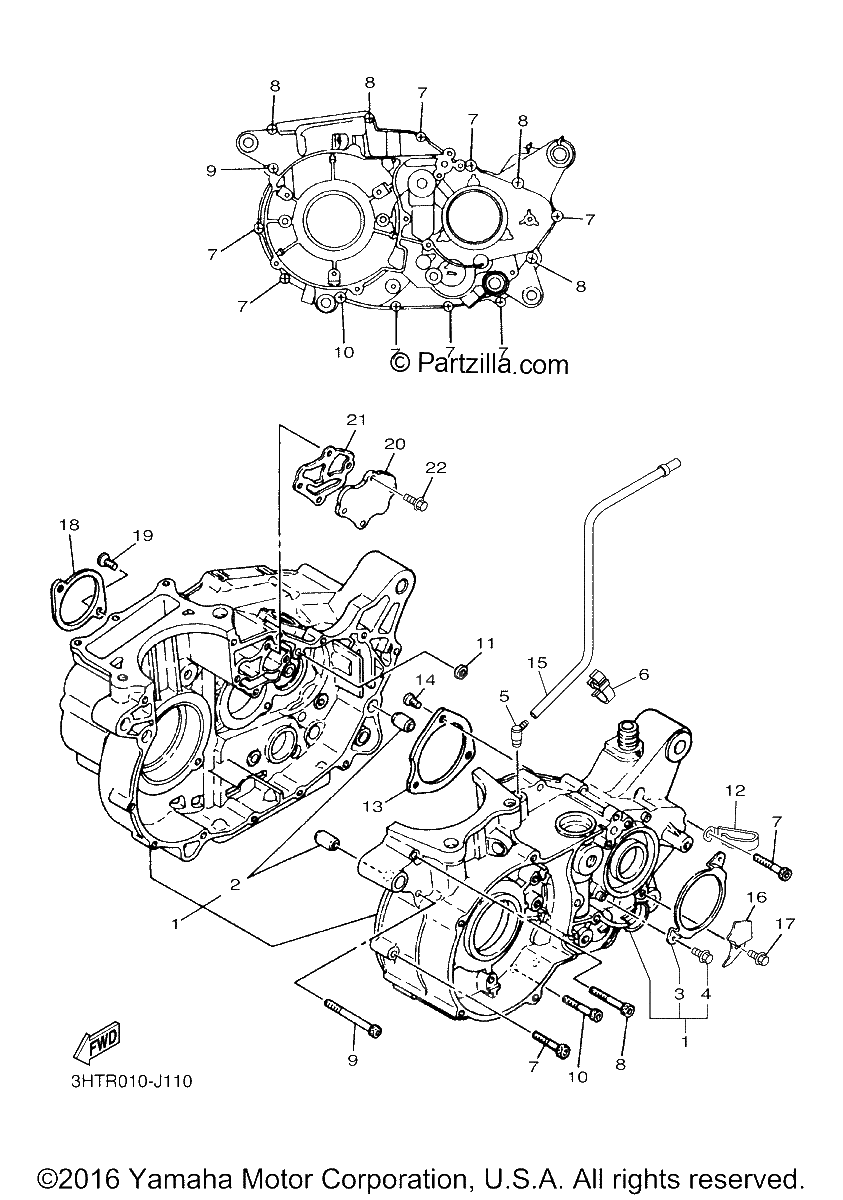

Diagrama de CRANKCASE

Repuestos

#1
3HT-15100-R9-00
CRANKCASE ASSY
$947.49¢473 744
1
#2
99530-12016-00
PIN, DOWEL
$4.91¢2 456
1
#3
583-17471-01-00
PLATE, COVER
$15.06¢7 531
1
#4
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#5
5UG-15371-00-00
BREATHER
$41.39¢20 694
1
#6
90464-18013-00
CLAMP
$3.41¢1 706
1
#7
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#8
91314-06045-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#9
91314-06065-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#10
91314-06055-00
BOLT, HEXAGON SOCKET HEAD
$8.10¢4 050
1
#11
90430-09121-00
GASKET
$6.91¢3 456
1
#12
90465-08277-00
CLAMP
$11.61¢5 806
1
#13
363-15381-00-00
PLATE, BEARING COVER
No Disponible
1
#14
90149-05021-00
SCREW
$3.52¢1 763
1
#15
3HT-1531A-R0-00
HOSE, BREATHER 1
$4.15¢2 075
1
#16
90465-10021-00
CLAMP
$4.81¢2 406
1
#17
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#18
583-15383-00-00
PLATE, BEARING COVER
$5.10¢2 550
1
#19
90151-06023-00
SCREW, COUNTERSUNK
$7.77¢3 887
1
#20
583-15426-10-00
COVER, OIL PUMP 2
$10.19¢5 094
1
#21
3HT-15466-00-00
GASKET 2
$9.22¢4 613
1
#22
95022-06016-00
BOLT, FLANGE
$3.96¢1 981
1
