CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

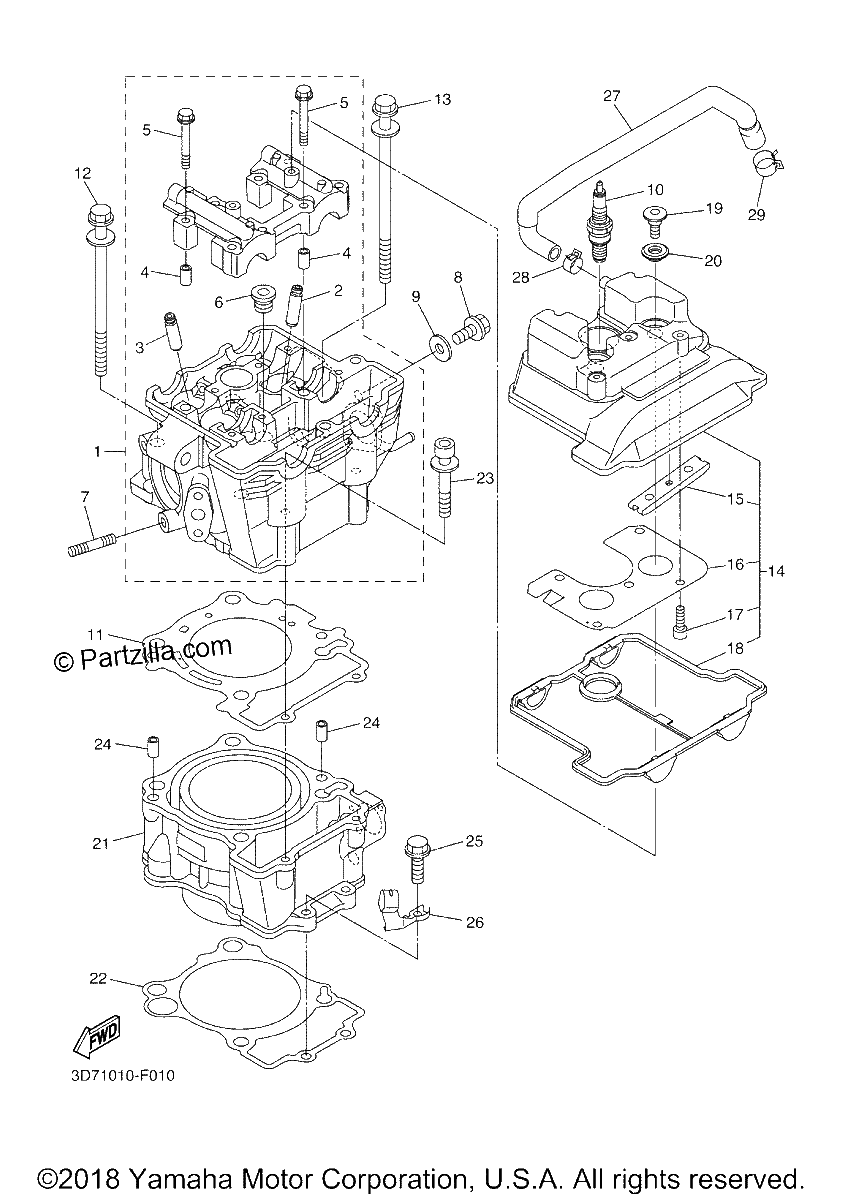

Diagrama de CYLINDER

Repuestos

#1
3D7-11101-09-00
CYLINDER HEAD ASSY
$1673.34¢836 669
1
#2
3D7-11133-10-00
GUIDE, VALVE 1
$66.19¢33 094
1
#3
2C0-11133-11-00
GUIDE, VALVE 1
$68.74¢34 369
1
#4
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#5
90105-06027-00
BOLT, FLANGE
$7.67¢3 838
1
#6
90340-12007-00
PLUG, STRAIGHT SCREW
$7.43¢3 713
1
#7
95612-08620-00
BOLT, STUD
$7.43¢3 713
1
#8
95022-08012-00
BOLT, FLANGE
$11.31¢5 656
1
#9
90430-08119-00
GASKET
$6.91¢3 456
1
#10
CR9-EK000-00-00
CR9EK NGK SPLUG 10
$16.81¢8 406
1
#11
3D7-11181-00-00
GASKET, CYLINDER HEAD 1
$52.95¢26 475
1
#12
90119-10025-00
BOLT, WITH WASHER
$17.79¢8 894
1
#13
90119-10026-00
BOLT, WITH WASHER
$29.85¢14 925
1
#14
3D7-11190-00-00
COVER, CYLINDER HEAD 1
$391.78¢195 888
1
#15
5BE-12241-00-00
GUIDE, STOPPER 2
$30.44¢15 219
1
#16
3D7-11165-00-00
PLATE, BREATHER
$10.15¢5 075
1
#17
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
1
#18
3D7-11193-00-00
GASKET, HEAD COVER 1
$48.22¢24 112
1
#19
90109-066F0-00
BOLT
$7.60¢3 800
1
#20
5VY-1111G-00-00
RUBBER, MOUNT 1
$12.75¢6 375
1
#21
3D7-11311-02-00
CYLINDER 1
$1059.59¢529 794
1
#22
3D7-11351-01-00
GASKET, CYLINDER
$17.36¢8 681
1
#23
90110-06298-00
BOLT, HEXAGON SOCKET HEAD
$6.91¢3 456
1
#24
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#25
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
#26
3D7-12491-00-00
CLAMP 1
$12.05¢6 025
1
#27
3D7-11166-00-00
PIPE, BREATHER 1
$35.38¢17 688
1
#28
90467-120A5-00
CLIP
$7.69¢3 844
1
#29
90467-15141-00
CLIP
No Disponible
1
