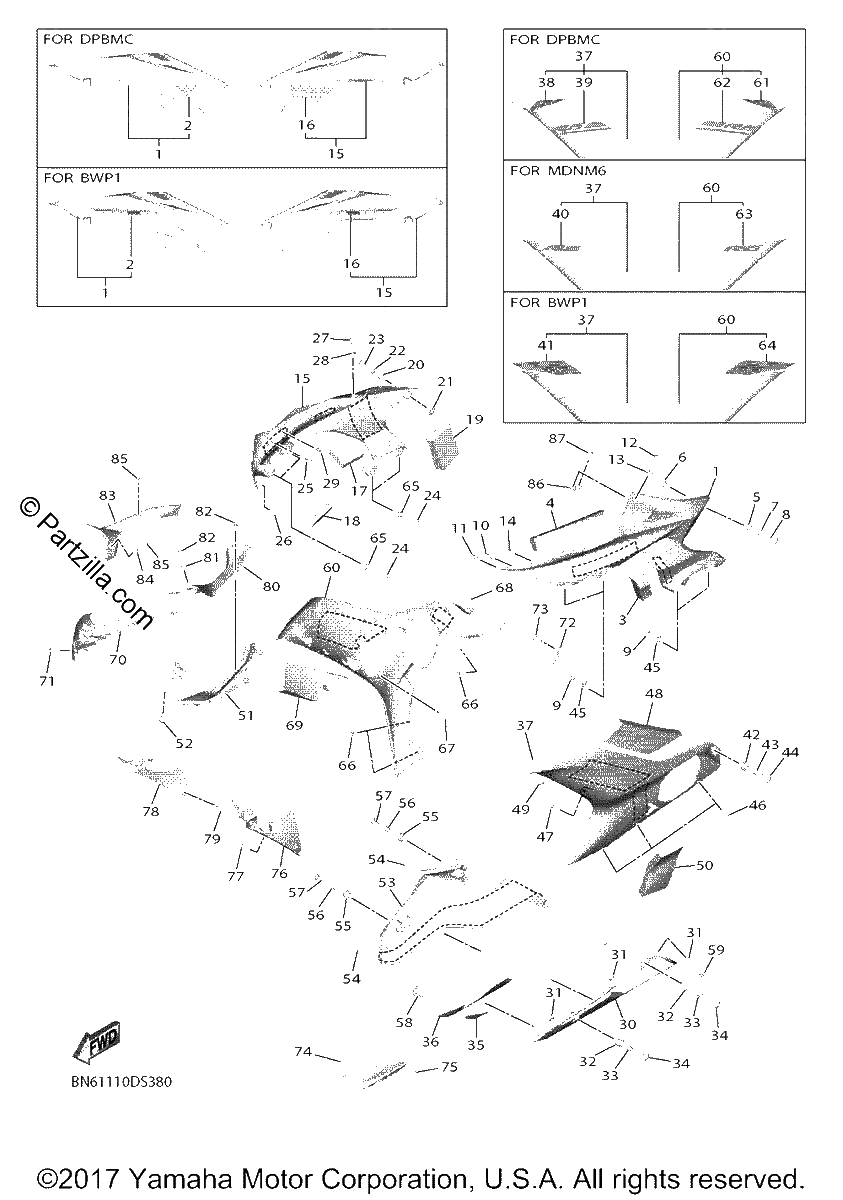

COWLING 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER ASSY 7
$428.19¢214 094
#1
COVER ASSY 7
$356.81¢178 406
#1
COVER 7
$422.71¢211 356
#2
GRAPHIC 5
$19.56¢9 781
#2
GRAPHIC 5
$28.31¢14 156
#3
DAMPER, PLATE
$1.93¢963
#4
SEAL 12
$2.91¢1 456
#5
Grommet
$23.96¢11 981
#6
COLLAR
$6.19¢3 094
#7
WASHER, PLATE
$8.45¢4 225
#8
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#9
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#10
NUT, SPRING
$4.97¢2 488
#11
Clamp
$0.72¢363
#12
SCREW,SPEC'L SHAPE
$5.07¢2 537
#13
WASHER, PLATE
$4.05¢2 025
#14
Clip
$1.07¢538
#15
COVER ASSY 8
$356.81¢178 406
#15
COVER ASSY 8
$428.19¢214 094
#15
COVER 8
$352.75¢176 375
#16
GRAPHIC 6
$28.77¢14 388
#16
GRAPHIC 6
$23.35¢11 675
#17
DAMPER, PLATE
$1.93¢963
#18
DAMPER, PLATE
$1.82¢913
#19
SEAL 26
$2.91¢1 456
#20
Grommet
$23.96¢11 981
#21
COLLAR
$6.19¢3 094
#22
WASHER, PLATE
$8.45¢4 225
#23
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#24
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#25
NUT, SPRING
$4.97¢2 488
#26
Clamp
$0.72¢363
#27
SCREW,SPEC'L SHAPE
$5.07¢2 537
#28
WASHER, PLATE
$4.05¢2 025
#29
Clip
$1.07¢538
#30
COVER, UNDER
$152.25¢76 125
#30
COVER, UNDER
$168.81¢84 406
#31
NUT, SPRING
$2.82¢1 412
#32
GROMMET
$7.43¢3 713
#33
COLLAR
$7.43¢3 713
#34
bolt
$4.00¢2 000
#35
SEAT 1
$35.19¢17 594
#36
DAMPER, locating 1
$6.64¢3 319
#37
PANEL ASSY 1
$456.08¢228 038
#37
PANEL ASSY 1
$483.98¢241 988
#37
PANEL ASSY 1
$486.48¢243 238
#38
GRAPHIC 7
$28.82¢14 413
#39
GRAPHIC 1
$40.29¢20 144
#40
EMBLEM
$14.55¢7 275
#41
GRAPHIC 1
$42.46¢21 231
#42
GROMMET
$7.43¢3 713
#43
COLLAR
$7.43¢3 713
#44
bolt
$4.00¢2 000
#45
NUT, SPRING
$2.82¢1 412
#46
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#47
RIVET
$6.45¢3 225
#48
DAMPER 2
$7.13¢3 563
#49
DAMPER
$7.60¢3 800
#50
DAMPER, PLATE
$4.34¢2 169
#51
COVER 1
$34.98¢17 488
#52
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#53
COVER, UNDER 2
$150.59¢75 294
#53
COVER, UNDER 2
$154.47¢77 238
#54
NUT, SPRING
$2.82¢1 412
#55
GROMMET
$7.43¢3 713
#56
COLLAR
$7.43¢3 713
#57
bolt
$4.00¢2 000
#58
SEAT 2
$30.47¢15 237
#59
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#60
PANEL ASSY 2
$456.08¢228 038
#60
PANEL ASSY 2
$483.98¢241 988
#60
PANEL ASSY 2
$335.55¢167 775
#61
GRAPHIC 8
$27.86¢13 931
#62
GRAPHIC 2
$33.71¢16 856
#63
EMBLEM
$15.10¢7 550
#64
GRAPHIC 2
$48.43¢24 213
#65
NUT, SPRING
$2.82¢1 412
#66
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#67
RIVET
$6.45¢3 225
#68
DAMPER, PLATE
$1.34¢669
#69
DAMPER 4
$7.65¢3 825
#70
COVER 2
$34.98¢17 488
#71
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#72
BRACKET 4
$5.58¢2 788
#73
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
#74
PANEL, INNER 1
$93.61¢46 806
#75
NUT, SPRING
$2.82¢1 412
#76
PANEL, INNER 2
$60.51¢30 256
#77
RIVET
$8.80¢4 400
#78
PANEL, INNER 3
$70.92¢35 463
#79
RIVET
$8.80¢4 400
#80
PANEL, console 1
$19.26¢9 631
#81
DAMPER
$6.45¢3 225
#82
RIVET
$8.80¢4 400
#83
PANEL, CONSOLE 2
$19.30¢9 650
#84
DAMPER
$6.45¢3 225
#85
RIVET
$8.80¢4 400
#86
STAY 2
$8.60¢4 300
#87
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
