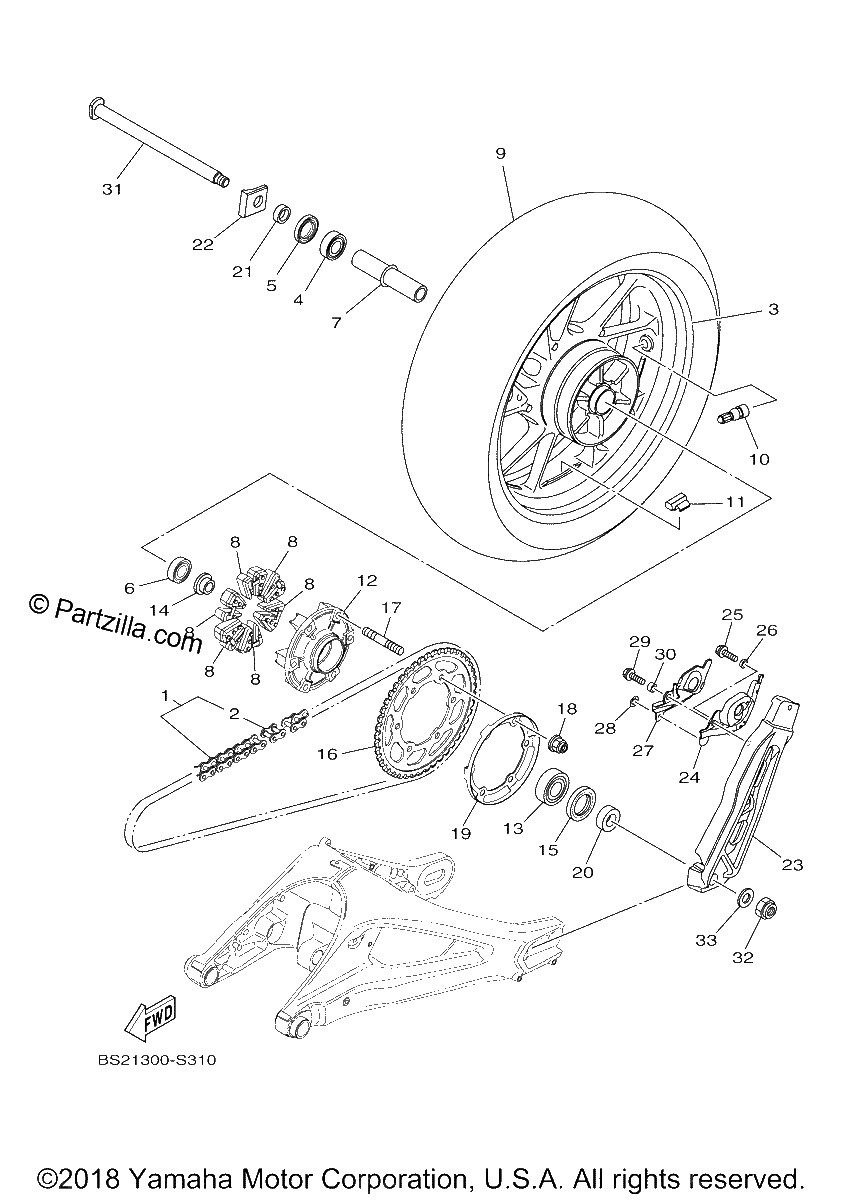

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CHAIN (DID 525V10-110LL)
$160.62¢80 310
#2
JOINT, CHAIN (DID 525V10-ZJ)
$9.12¢4 560
#3
CAST WHEEL, REAR
$913.33¢456 665
#3
CAST WHEEL, REAR | LGB FOR MNM3
$731.19¢365 597
#4
BEARING
$42.62¢21 310
#5
OIL SEAL
$13.85¢6 923
#6
BEARING
$40.23¢20 114
#7
SPACER, BEARING
$21.11¢10 557
#8
DAMPER
$11.94¢5 969
#9
TIRE (180/55ZR17M/C 73W S20R) | UR BRIDGESTONE
$382.04¢191 021
#9
TIRE (180/55ZR17M/C 73W D214) | UR DUNLOP
$279.01¢139 507
#10
VALVE, RIM (TR412) | TAIHEIYO
$15.85¢7 923
#11
BALANCER, WHEEL (20G) | UN
$16.85¢8 424
#11
BALANCER, WHEEL (10G) | UN
$17.03¢8 516
#11
BALANCER, WHEEL (30G) | UN
$43.29¢21 643
#12
CLUTCH, HUB
$569.35¢284 677
#13
BEARING
$38.81¢19 406
#14
COLLAR, WHEEL
$30.81¢15 404
#15
OIL SEAL
$13.21¢6 607
#16
SPROCKET, DRIVEN (45T)
$143.78¢71 892
#17
BOLT, STUD
$25.00¢12 500
#18
NUT, U FLANGE
$2.51¢1 254
#19
BRACKET 1 (replaces BS2-2537W-00-00)
$18.92¢9 459
#20
COLLAR
$21.64¢10 821
#21
COLLAR
$14.31¢7 153
#22
PULLER, CHAIN 2
$75.89¢37 944
#23
PULLER, CHAIN 2
$242.85¢121 423
#24
COVER 1
$5.11¢2 553
#25
BOLT, FLANGE DEEP RECESS
$0.38¢190
#26
COLLAR
$8.69¢4 347
#27
COVER 2
$3.93¢1 967
#28
NUT, SPRING
$0.46¢230
#29
BOLT, FLANGE DEEP RECESS
$0.38¢190
#30
COLLAR
$6.89¢3 444
#31
AXLE, WHEEL
$61.77¢30 883
#32
NUT, SELF-LOCKING
$17.39¢8 694
#33
WASHER, PLATE
$5.13¢2 565
