HANDLE SWITCH LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

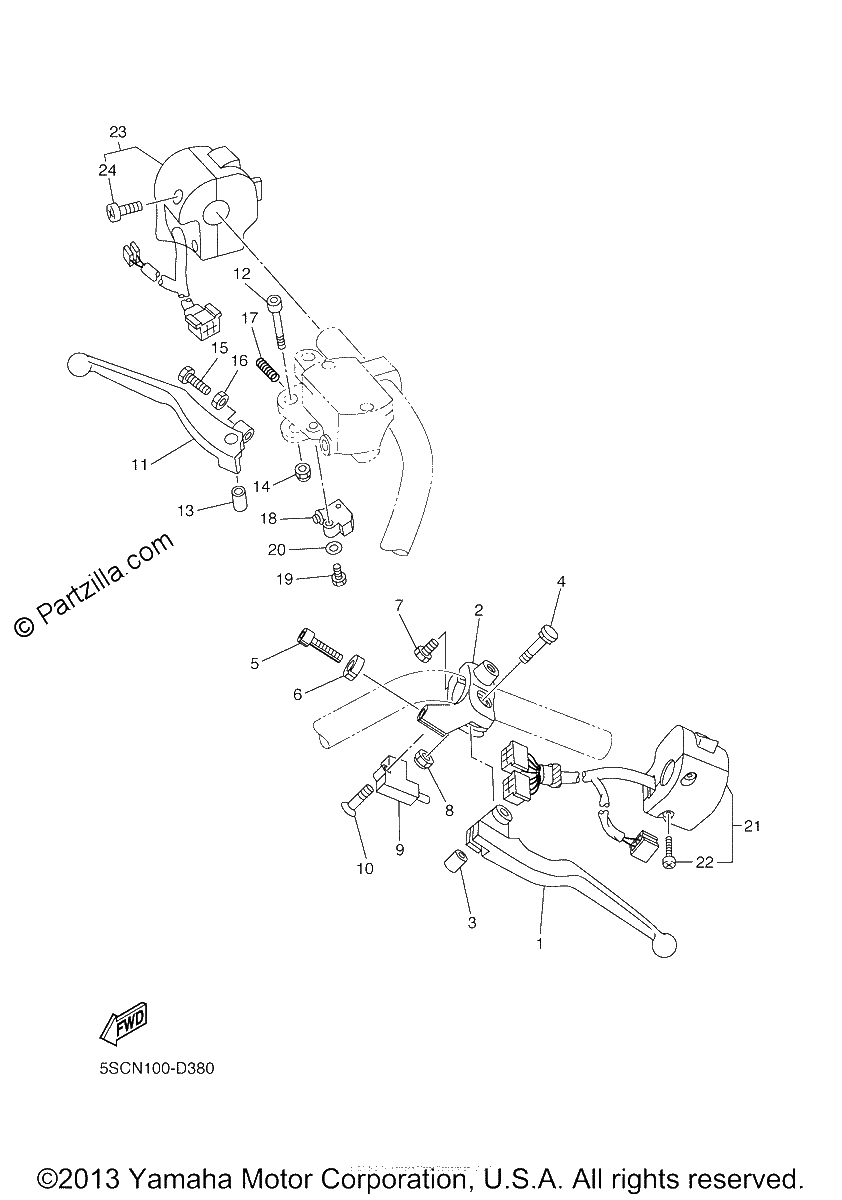

Diagrama de HANDLE SWITCH LEVER

Repuestos

#1
5BN-83912-00-00
LEVER 1
$53.90¢26 950
1
#2
5BN-82911-00-00
HOLDER, LEVER 1
$47.27¢23 638
1
#3
4TR-83913-00-00
COLLAR, LEVER 1
$7.94¢3 969
1
#4
4TR-83945-00-00
BOLT, LEVER
$15.18¢7 588
1
#5
90123-08046-00
BOLT
$10.94¢5 469
1
#6
90179-08148-00
NUT
$4.64¢2 319
1
#7
97024-06020-00
BOLT
$7.34¢3 669
1
#8
95604-06100-00
NUT, U
$7.94¢3 969
1
#9
3YX-82917-01-00
SWITCH
$47.30¢23 650
1
#10
98707-03020-00
SCREW, FLAT HEAD
$7.94¢3 969
1
#11
5BN-83922-00-00
LEVER 2
$53.90¢26 950
1
#12
90110-06074-00
BOLT, HEXAGON SOCKET HEAD
$8.45¢4 225
1
#13
36Y-83913-01-00
COLLAR, LEVER 1
$10.64¢5 319
1
#14
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#15
90149-06131-00
SCREW
$7.34¢3 669
1
#16
90170-06010-00
NUT
$7.34¢3 669
1
#17
90501-10312-00
SPRING,COMPRESSION
$7.34¢3 669
1
#18
J45-82503-01-00
FRONT STOP SWITCH ASSY
$40.56¢20 281
1
#19
98517-04016-00
SCREW, PAN HEAD
$7.35¢3 675
1
#20
92907-04600-00
WASHER
$1.46¢731
1
#21
5VN-83973-20-00
SWITCH, HANDLE 3
$360.15¢180 075
1
#22
98580-05525-00
SCREW, PAN HEAD
$1.82¢913
1
#23
5KS-83975-10-00
SWITCH, HANDLE 2
$258.98¢129 488
1
#24
98507-05025-00
SCREW,PAN HEAD
$7.35¢3 675
1
