CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

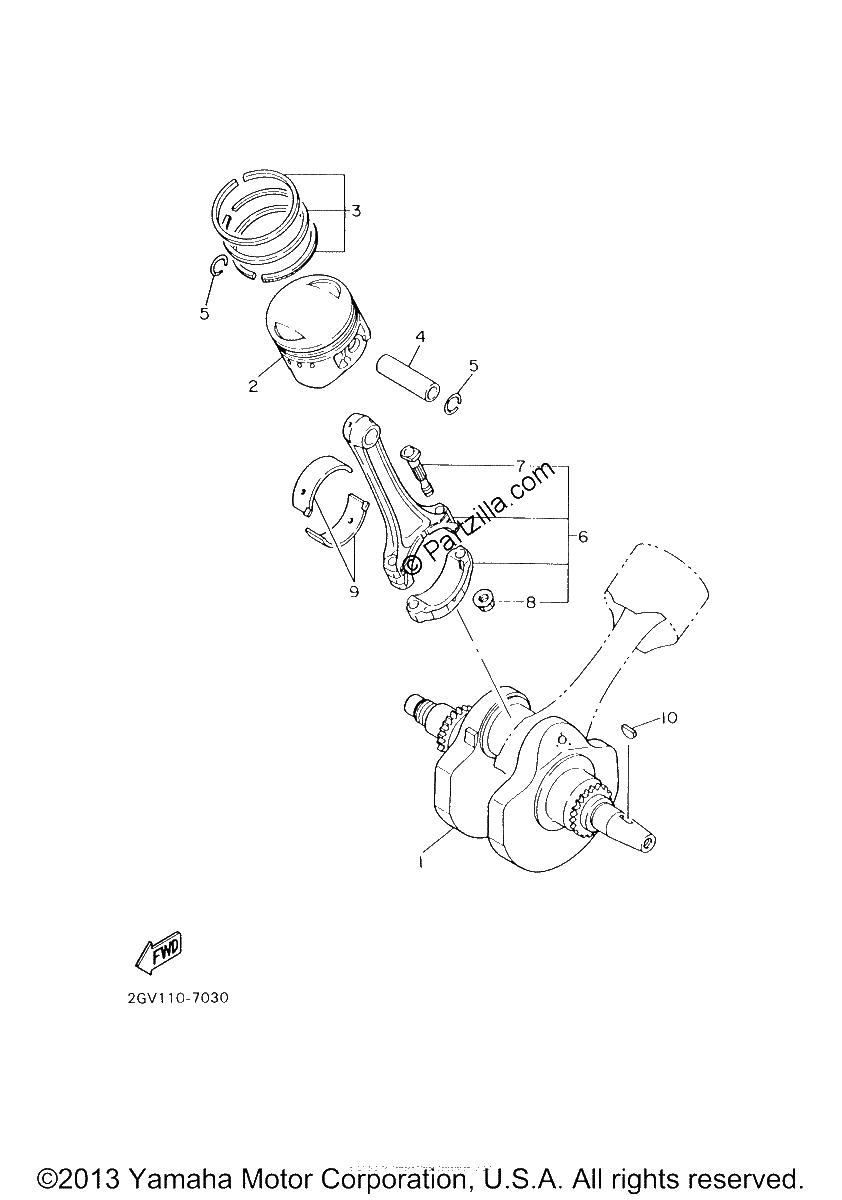

Diagrama de CRANKSHAFT PISTON

Repuestos

#0
4VR-11605-00-00
PISTON RING SET (0.50MM O/S) | AP
$73.71¢36 856
1
#0
4VR-11636-01-00
PISTON (0.50MM O/S) | AP
$194.53¢97 263
1
#0
3LD-11656-00-00
PLANE BEARING, CONNECTING ROD | UR BLUE
$28.60¢14 300
1
#0
3LD-11656-10-00
PLANE BEARING, CONNECTING ROD | UR BLACK
$12.75¢6 375
1
#0
4VR-11638-01-00
PISTON (1.00MM O/S) | AP
$171.19¢85 594
1
#0
3LD-11656-30-00
PLANE BEARING, CONNECTING ROD | UR GREEN
$28.60¢14 300
1
#0
4VR-11607-00-00
PISTON RING SET (1.00MM O/S) | AP
$36.65¢18 325
1
#1
4VR-11411-00-00
CRANKSHAFT
$873.74¢436 869
1
#2
4VR-11631-01-A0
PISTON (STD)
$201.59¢100 794
1
#3
4VR-11603-00-00
PISTON RING SET (STD)
$69.97¢34 988
1
#4
3LD-11633-00-00
PIN, PISTON
$35.92¢17 963
1
#5
93450-22027-00
CIRCLIP
$7.13¢3 563
1
#6
4VR-11650-00-00
CONNECTING ROD ASSY
$341.32¢170 663
1
#7
22U-11654-00-00
BOLT, CONNECTING ROD
$4.46¢2 231
1
#8
90179-08327-00
NUT
$8.31¢4 156
1
#9
3LD-11656-20-00
PLANE BEARING, CONNECTING ROD | UR BROWN
$28.60¢14 300
1
#10
90280-05001-00
KEY, WOODRUFF (replaces 90280-05048-00)
$14.04¢7 019
1
